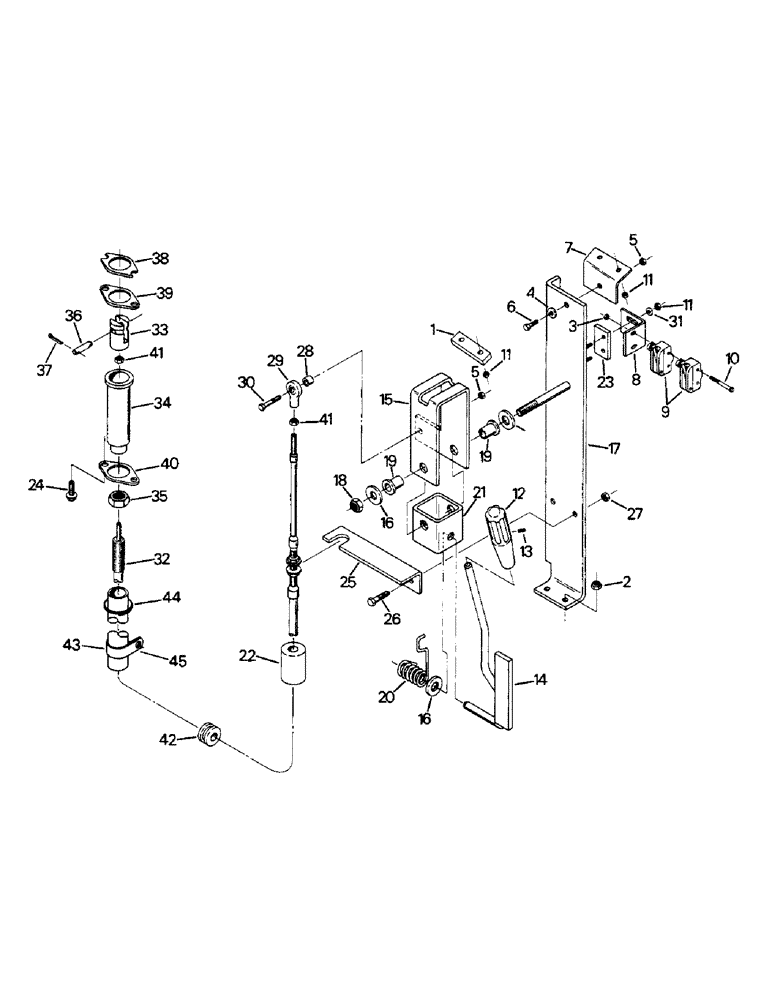

Запчасти Case IH STEIGER (01-41) - PTO CONTROLS (10) - CAB

1

60-4269T1

LARGE PLATE

PLATE, LARGE WEARSTRIP - lever

1шт.

2

19-802

NUT

5/16 UNC G-A

2шт.

3

19-1034

NUT

No. 4 UNC G-A

2шт.

4

19-223

WASHER,1/4"

Flat, 1/4

1шт.

5

19-1081

LOCK NUT

Lock, 1/4 UNC G-A

2шт.

6

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-A

1шт.

7

60-4270T1

SUPPORT

BRACKET - upper support

1шт.

8

60-5608T1

SUPPORT

BRACKET - micro switch mount

1шт.

9

20-2340T91

IGNITION SWITCH

MICRO SWITCH

1шт.

20-2341T91

SWITCH

MICRO SWITCH (Interchangeable with P/N 20-2340T91)

1шт.

10

19-6236

SCREW

MACHINE screw, no. 4 UNC x 1-3/4

2шт.

11

19-5563

LOCK NUT

Lock, no. 10 UNC G-A

6шт.

12

60-4272T1

HANDLE

KNOB - PTO lever

1шт.

13

19-5798

SET SCREW

SCREW - set, no. 8 UNC x 5/16

1шт.

14

60-4265T2

LEVER

PTO

1шт.

15

60-4296T2

SUPPORT

BRACKET - cable actuating

1шт.

16

19-463

WASHER,1/2", SAE

Flat, 1/2

3шт.

17

60-5858T1

SUPPORT

BRACKET - PTO mounting (60-4271T2)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

18

19-653

LOCK NUT

Lock, 1/2 UNC G-A

1шт.

19

90-4367T1

BRONZE BUSHING

Lever pivot

2шт.

20

60-4294T1

SPRING

Lever return

1шт.

21

60-4293T1

JOINT

TRUNNION - lever

1шт.

22

60-3705T1

FOAM

SEAL - foam

1шт.

23

60-5609T1

SPACER

Bracket

1шт.

24

19-5852

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW - flanged, 1/4 UNC x 3/4 G-5

2шт.

25

60-5020T1

SUPPORT

BRACKET - cable mounting

1шт.

26

9417950

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

CAPSCREW, 5/16 UNC x 3/4 G-5

2шт.

27

19-5777

LOCK NUT

Lock, 5/16 UNC G-A

2шт.

28

60-5021T1

SPACER,0.282" ID x 0.500" OD x 0.312" Thk

Ball joint

1шт.

29

19-1031

GASKET

JOINT - ball, 1/4 UNF

1шт.

30

9419008

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

CAPSCREW, 1/4 UNC x 1-1/4 G-5

1шт.

31

19-195

WASHER,#10

No. 10 x 9/16 x 3/64 thk

2шт.

32

60-5726T1

CABLE

PTO control

1шт.

33

2-4694T1

FORK

YOKE - valve actuating

1шт.

34

2-4692T1

ROPE GUIDE

COVER - valve actuating

1шт.

35

19-855

CLIP

NUT - jam, 3/4 UNF G-B

1шт.

36

19-6041

PIN

(Special)

1шт.

37

19-6043

COTTER PIN,1/32" x 3/4"

1/32" x 3/4"

2шт.

38

60-2056T1

GASKET

GASKET - retainer

1шт.

39

60-3008T1

SHIM

Cover

1шт.

40

2-4693T1

RETAINER

Cover

1шт.

41

19-936

JAM NUT

Jam, 1/4 UNF G-B

2шт.

42

31-2242

GROMMET

Cable

1шт.

43

2-7386T1

SHIELD

Heat

1шт.

44

1-7818

CABLE

STRAP - nylon

1шт.

45

31-1348

CLAMP

Heat shield

1шт.
