(10-07) - THREE POINT HARNESS AND CONTROLS

Запчасти Case IH STEIGER (10-07) - THREE POINT HARNESS AND CONTROLS Options & Miscellaneous

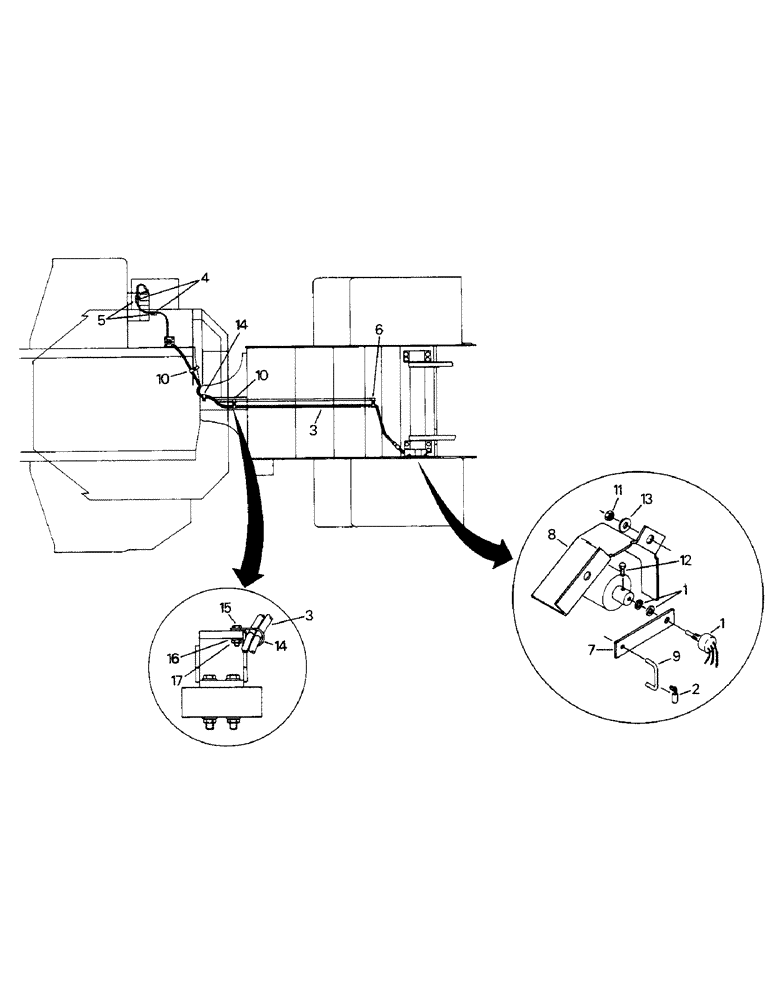

Схема запчастей Case IH STEIGER - (10-07) - THREE POINT HARNESS AND CONTROLS Options & Miscellaneous
16
10
5
8
7
11
1
14
15
1
4
2
12
9
3
13
10
3
17
14
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2125T2

POTENTIOMETER

Hitch Control

1шт.

2

60-2404T1

RETAINER

Actuating rod

2шт.

3

20-2399T1

HARNESS

3 point

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Nylon

2шт.

5

22-823

MOUNT

MOUNT - adhesive backed

2шт.

6

31-1443

CLAMP

Harness

1шт.

7

60-4675T1

ARM

Actuating

1шт.

8

60-4676T1

COVER

Sensor

1шт.

9

60-2401T2

ROD

Link

1шт.

10

22-1109

CLAMP

Harness

2шт.

11

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

12

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 1/2 G-5

1шт.

13

19-224

WASHER,3/8", SAE

Flat, 3/8

2шт.

14

31-1349

MOUNTING CLIP

CLAMP - harness

1шт.

15

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW, 5/16 UNC x 1-1/4 G-5

1шт.

16

19-106

WASHER,5/16", SAE

Flat, 5/16

1шт.

17

19-802

NUT

5/16 UNC G-A

1шт.
