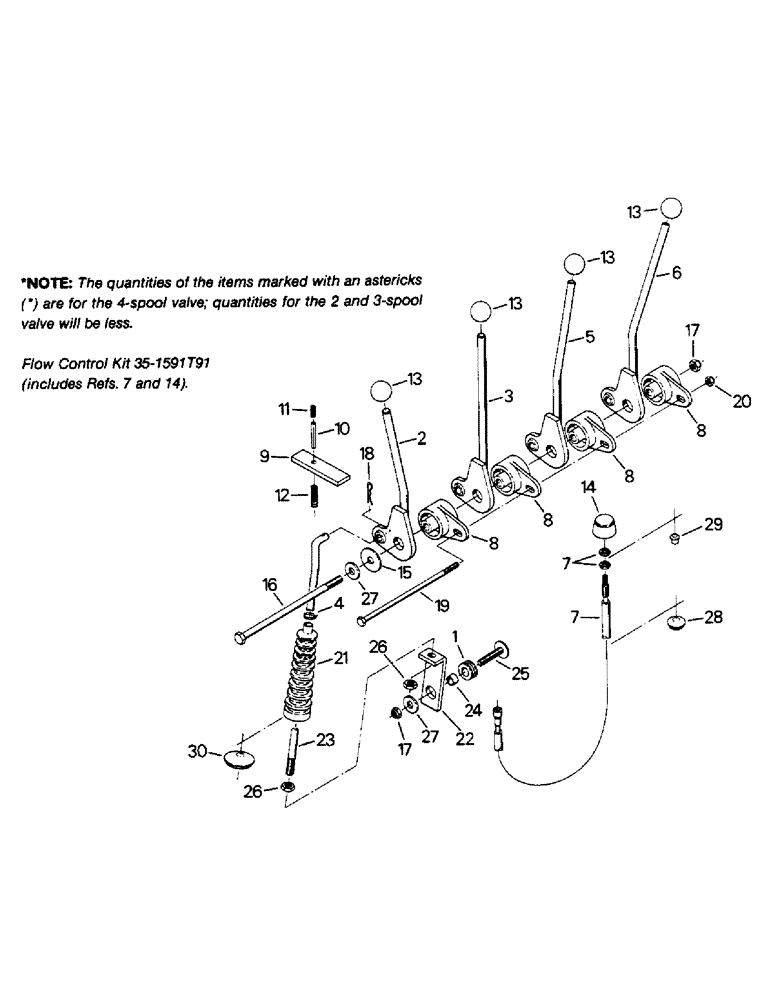

Запчасти Case IH STEIGER (01-40) - HYDRAULIC CONTROL VALVE CONTROLS (10) - CAB

1

22-95

GROMMET

Isolator

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

2

60-4341T1

LEVER

Spool 1

1шт.

3

60-4342T1

LEVER

Spool 2

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Nylon

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

5

60-4343T1

LEVER

Spool 3 (3 and 4 spool valve only)

1шт.

6

60-4344T1

LEVER

Spool 4 (4 spool valve only)

1шт.

7

60-4688T1

CABLE

SHAFT ASSEMBLY - flexible, flow control

1шт.

8

60-3920T1

BUSHING

Lever pivot

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

9

60-3933T1

BRACKET

Float lockout

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

10

19-6218

PIN,3/16" x 1 3/8", Coiled

3/16" x 1 3/8", Coiled

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

11

60-3937T1

CYLINDER END CAP

CAP - float lockout

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

12

60-3934T1

VALVE SPRING

Return

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

13

60-4346T1

KNOB

Hydraulic lever

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

14

60-4339T1

BUTTON

KNOB - flow control

1шт.

15

19-6154

WASHER

Nylon, 3/8 x 1-1/4 x 1/16 thk

1шт.

16

19-1136

BOLT,Hex, 3/8" - 16 x 6", Gr 5

CAPSCREW, 3/8 UNC x 6 G-5

1шт.

17

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC G-A

5шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

18

19-5380

PIN

Hairpin, .08 x 1-3/16 inch

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

19

19-6213

SCREW,Hex, 1/4" - 20 x 6", Gr 5

CAPSCREW, 1/4 UNC x 6 G-5

1шт.

20

19-1081

LOCK NUT

Lock, 1/4 UNC G-A

1шт.

21

60-4279T1

BELLOWS

BOOT - actuating rod

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

22

60-4282T1

SUPPORT

BRACKET - valve actuating

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

23

60-4283T1

STEM

ROD - actuating

4шт.

24

60-4284T1

SPACER

Pivot

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

25

60-4281T1

STUD

BOLT - isolator

4шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

26

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

8шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

27

19-224

WASHER,3/8", SAE

Flat, 3/8

5шт.

Quantites of this Ref. are for the 4-spool valve; quantities for the 2 and 3-spool valve will be less.

1шт.

28

64-146

PLUG

Hole

3шт.

29

60-4258T1

PLUG

Hole

1шт.

30

22-619

GROMMET

PLUG - hole (2 and 3 spool valve only)

2шт.

31

1-1055

SEALANT

RTV SEALANT (Not shown)

1шт.
