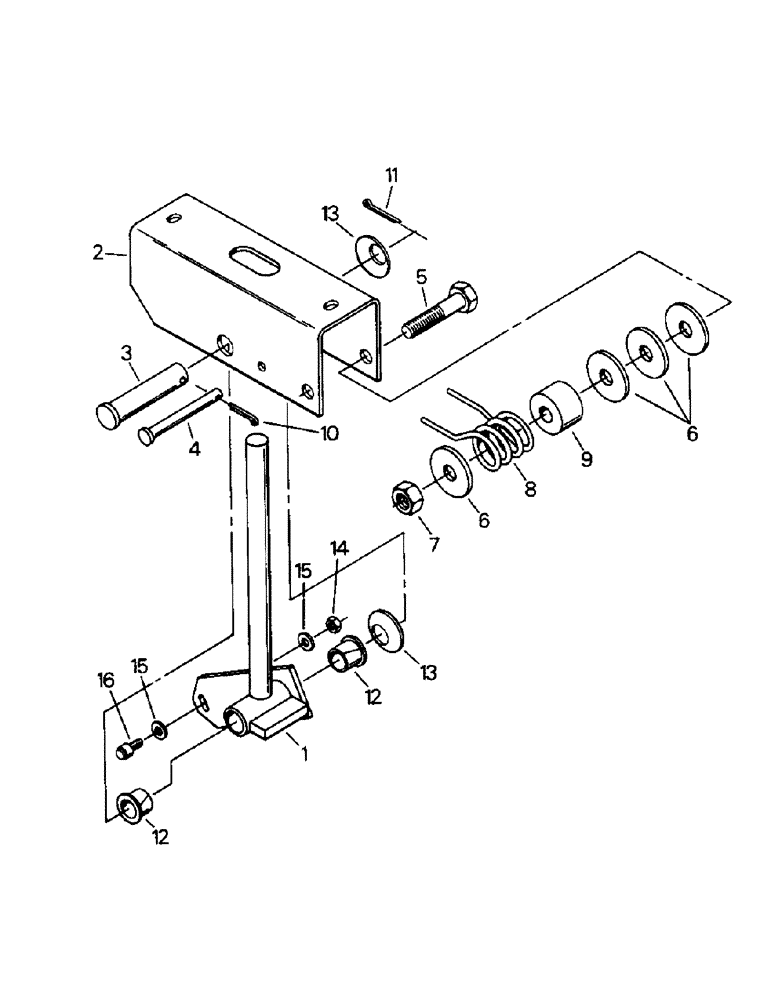

Запчасти Case IH STEIGER (01-39) - PULSER LEVER ASSEMBLY (10) - CAB

60-4447T93

CONTROL

LEVER ASSEMBLY - pulser, Includes: Ref. 1 - 16

1шт.

1

60-4509T2

CONTROL

LEVER - pulser

1шт.

2

60-4510T2

FRAME

SPARE PART Pulser

1шт.

3

19-6165

PIN

Clevis, 1/2 x 2-1/4 inch

1шт.

4

19-6160

PIN

Clevis, 1/4 x 2-1/4 inch

1шт.

5

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 UNC x 1-3/4 G-5

1шт.

6

19-6192

WASHER - flat, 3/8 x 1-1/4 x 7/64 thk

4шт.

7

19-087

NUT - lock, 3/8 UNC G-B

1шт.

8

70-4486T2

SPRING

Lever return

1шт.

9

60-4511T2

SPACER

Spring

1шт.

10

19-1100

COTTER PIN,1/16" x 1/2"

1/16" x 1/2"

1шт.

11

19-168

COTTER PIN,1/8" x 1"

1/8 x 1 inch

1шт.

12

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BEARING - flanged

2шт.

13

19-6034

SPRING WASHER

Curved spring, 1/2

2шт.

14

19-1015

SERRATED NUT

Keps, no. 8 UNC G-A

1шт.

15

19-281

WASHER,#8

Flat, no. 8

2шт.

16

20-1316T1

ACTUATOR

Magnetic

1шт.
