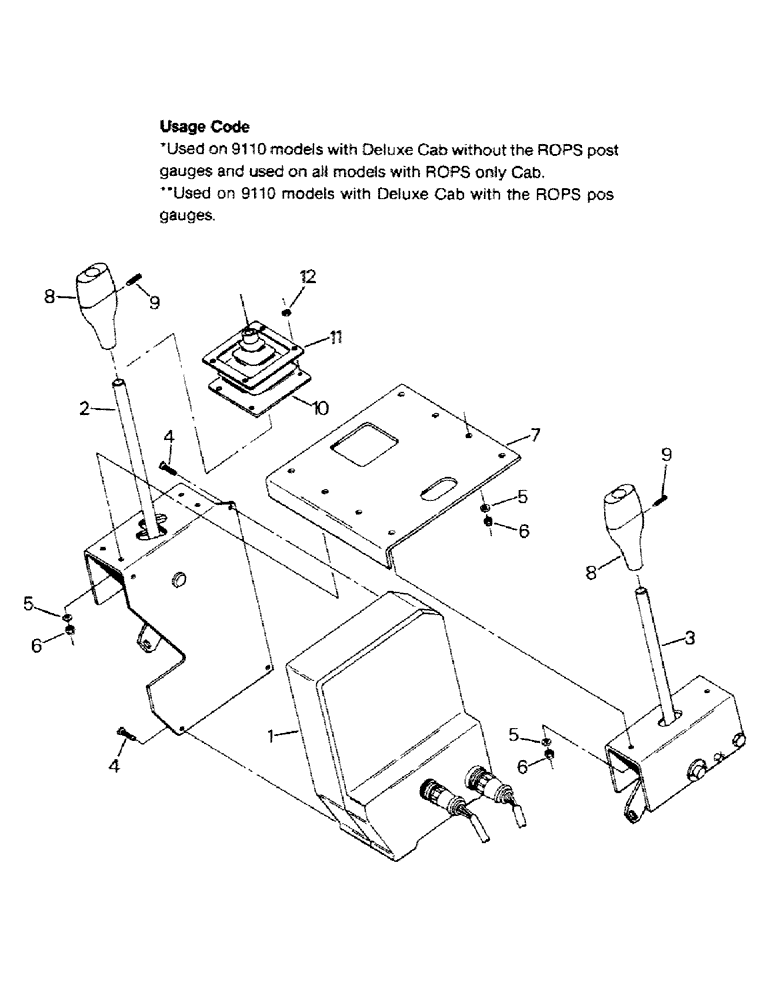

Запчасти Case IH STEIGER (01-37) - TRANSMISSION CONTROLS (10) - CAB

60-5761T91

CONTROL

CONTROLLER ASSEMBLY - transmission, Includes: Ref. 1 - 7

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

Used on Puma and 9110 models with Deluxe Cab without the ROPS post gauges and used on all models with ROPS only Cab.

1шт.

60-5868T91

CONTROL

CONTROLLER ASSEMBLY - transmission, Includes: Ref. 1 - 7

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

Used on all Wildcat and 9130 models with Deluxe Cab and on Pump and 9110 models with Deluxe Cab with ROPS post gauges.

1шт.

60-6570T1R

REMAN ELECT CONTROL

STEIGER PUMA,STEIGER WILDCAT, Both (11/86-8/88), Reman for New P/N 60-5868T91

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

20-2446T1

TERMINAL BOX

BOX ASSEMBLY - electronic

1шт.

Used on Puma and 9110 models with Deluxe Cab without the ROPS post gauges and used on all models with ROPS only Cab.

1шт.

1

20-2487T1

TERMINAL BOX

BOX ASSEMBLY - electronic

1шт.

Used on all Wildcat and 9130 models with Deluxe Cab and on Pump and 9110 models with Deluxe Cab with ROPS post gauges.

1шт.

60-6570T1R

REMAN ELECT CONTROL

STEIGER PUMA,STEIGER WILDCAT,Both (11/86-8/88), Reman for New P/N 20-2487T1

1шт.

60-6570T1C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

LEVER ASSEMBLY - mode (See Fig. 01-38)

1шт.

3

LEVER ASSEMBLY - pulser (See Fig. 01-39)

1шт.

4

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

TAPPING SCREW, no. 10 UNS x 3/4

4шт.

5

19-105

WASHER,1/4", SAE

Flat, 1/4

14шт.

6

19-1081

LOCK NUT

Lock, 1/4 UNC G-A

14шт.

7

60-5058T1

SUPPORT

BRACKET - lever mounting

1шт.

8

60-4512T1

KNOB

Control lever

2шт.

9

19-5926

SET SCREW

No. 8 UNC x 3/8

2шт.

10

60-5847T1

BOOT

Lever enclosure (Used on ROPS only cab)

2шт.

11

60-5846T1

RETAINER

SPARE PART Boot (Used on ROPS only cab)

2шт.

12

19-5564

LOCK NUT,#6-32, GB

No. 6 UNC G-A (Used on ROPS only cab)

8шт.
