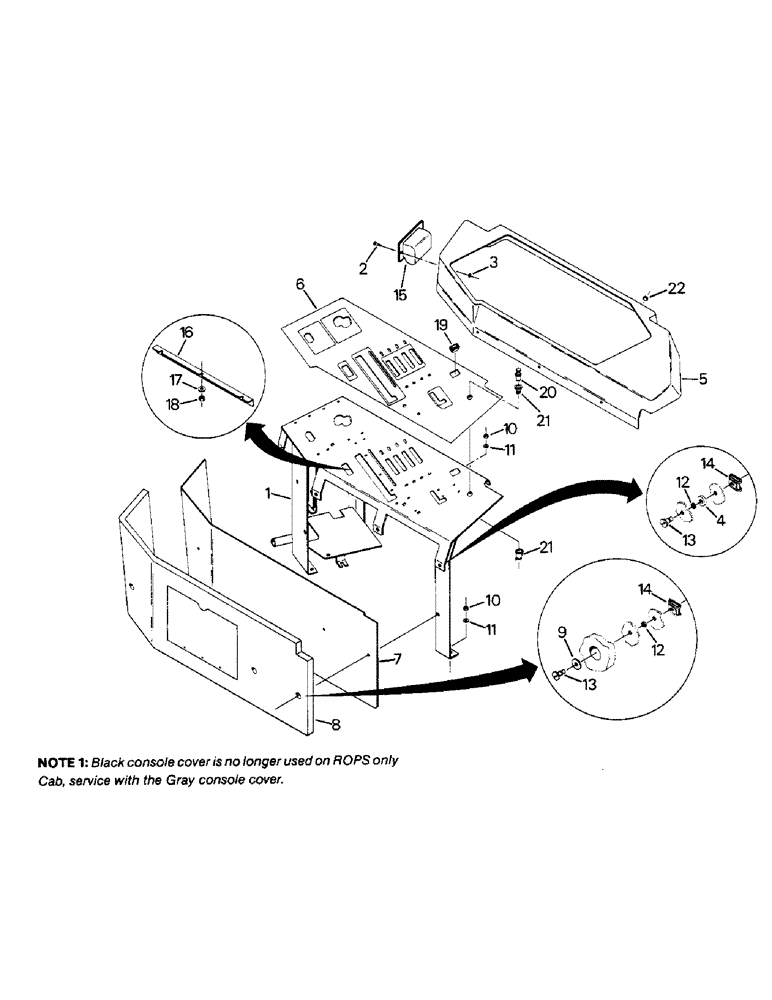

Запчасти Case IH STEIGER (01-34) - CONTROL CONSOLE AND MOUNTING (10) - CAB

1

60-5782T1

PANEL

Deluxe cab

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

(C) Used BSN 6139. Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

60-4938T1

PANEL

Deluxe cab

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Used BSN 6139

1шт.

60-4938T2

PANEL

Deluxe cab

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

60-5853T1

PANEL ASSY.

SPARE PART Control console (ROPS only cab)

1шт.

2

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

MACHINE SCREW, no. 8 UNC x 5/8

2шт.

3

19-5621

LOCK NUT,#8-32, GB

No. 8 UNC G-A

2шт.

4

19-5668

WASHER

Flat, 1/4 x 3/4 x 3/16 thk

7шт.

5

60-5938T1

COVER

Console (Gray) (Deluxe cab only)

1шт.

60-3935T1

COVER

Console (Tan) (Deluxe cab only)

1шт.

6

60-5937T1

DECAL

Console (Deluxe cab with gray interiors)

1шт.

60-4942T3

DECAL

Console (Deluxe cab with tan interiors)

1шт.

60-4942T2

DECAL

Console (Deluxe cab with tan interiors)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Used BSN 6139

1шт.

60-5979T1

DECAL

Console (ROPS only cab with gray interiors)

1шт.

60-5854T1

DECAL

SPARE PART Console (ROPS only cab with tan interiors)

1шт.

7

60-4133T1

SHIELD

WRAPAROUND - control console

1шт.

8

60-5936T1

ISOLATOR

INSULATION - control console (Deluxe cab only with gray interiors)

1шт.

60-4130T1

INSULATOR

INSULATION - control console (Deluxe cab only with tan interiors)

1шт.

9

9419996

WASHER,1/4"

Flat, 1/4 x 3/4 x 1/16 thk (Early models only)

4шт.

10

231-1445

NUT,5/16"-18, GB

G-A

5шт.

11

19-106

WASHER,5/16", SAE

Flat, 5/16

5шт.

12

19-5703

RETAINER

Quarter turn stud

11шт.

13

19-6136

STUD

Quarter turn

11шт.

14

19-6137

CONTAINER

RECEPTACLE - quarter turn stud

11шт.

15

2-6138T91

ASH TRAY

ASSEMBLY

1шт.

16

60-4276T1

SUPPORT

BRACKET - stiffener

1шт.

17

19-195

WASHER,#10

No. 10 x 9/16 x 3/64 thk

3шт.

18

19-5563

LOCK NUT

Lock, no. 10 UNC

3шт.

19

60-3210T1

PLUG

Switch hole

1шт.

20

22-727

KNOB

AND PLUG ASSEMBLY - cigar lighter

1шт.

21

20-2237T1

CONTAINER

SOCKET - cigar lighter

1шт.

22

22-619

GROMMET

Hole plug (ROPS only cab only)

1шт.
