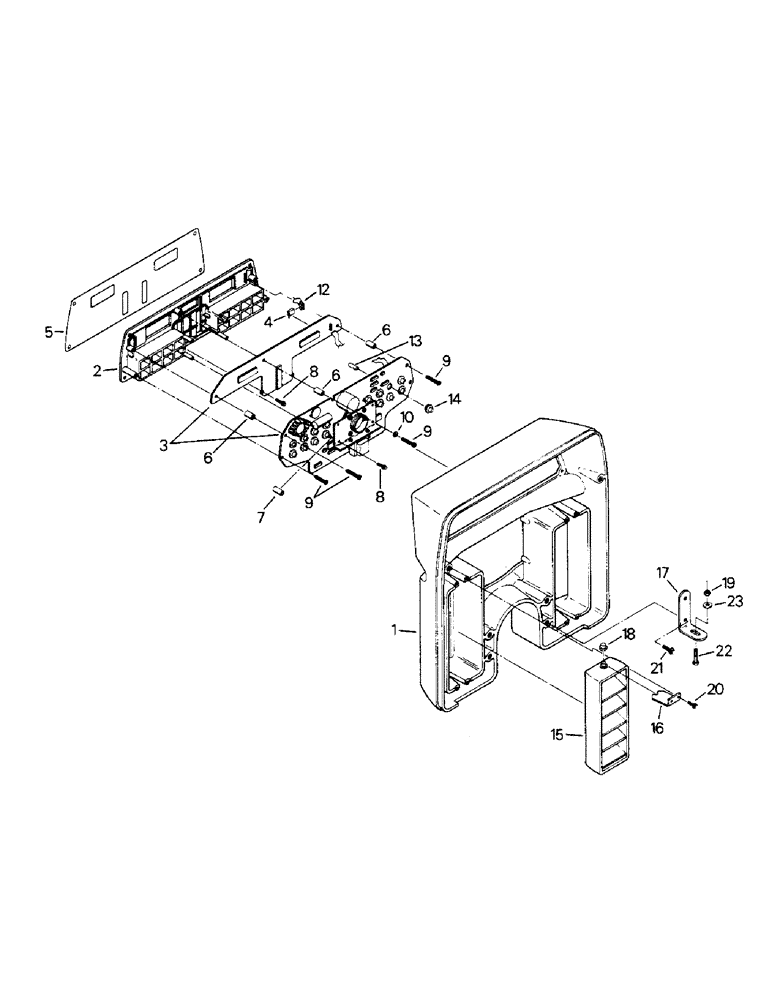

Запчасти Case IH STEIGER (01-33) - DELUXE DASH ASSEMBLY (10) - CAB

1

60-5966T1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT HOUSING - dash, plastic (Gray)

1шт.

60-4786T1

PANEL ASSY.

SPARE PART PANEL - dash, plastic (Tan)

1шт.

20-2504T1

CONTROL

MODULE ASSEMBLY - electronic dash (Without ROPS post gauges and with tan interiors) (20-2241T191)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Dash modules 20-2241T91 and 20-2452T1 can be used on Puma and Wildcats. Dash Modules 20-2504T1 and 20-2503T1 must be used on 9110 and 9130 with tan interiors. Dash Module 20-2506T1 and 20-2507T1 to be used on models with gray interiors.

1шт.

20-2507T1

CONTROL

MODULE ASSEMBLY - electronic dash (Without ROPS post gauges and with gray interiors)

1шт.

20-2503T1

CONTROL

MODULE ASSEMBLY - electronic dash (with ROPS post gauges and with tan interiors) (20-2452T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Dash modules 20-2241T91 and 20-2452T1 can be used on Puma and Wildcats. Dash Modules 20-2504T1 and 20-2503T1 must be used on 9110 and 9130 with tan interiors. Dash Module 20-2506T1 and 20-2507T1 to be used on models with gray interiors.

1шт.

20-2506T1

CONTROL

MODULE ASSEMBLY - electronic dash (With ROPS post gauges and with gray interiors)

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

Dash modules 20-2241T91 and 20-2452T1 can be used on Puma and Wildcats. Dash Modules 20-2504T1 and 20-2503T1 must be used on 9110 and 9130 with tan interiors. Dash Module 20-2506T1 and 20-2507T1 to be used on models with gray interiors.

1шт.

2

NSS

NOT SOLD SEPARAT

DASH

1шт.

3

NSS

NOT SOLD SEPARAT

PRINTED CIRCUIT BOARD - dash

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING

2шт.

5

NSS

NOT SOLD SEPARAT

PANEL - dash

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER

3шт.

7

NSS

NOT SOLD SEPARAT

SPACER

4шт.

8

NSS

NOT SOLD SEPARAT

TAPPING SCREW, no. 3 UNS x 3/8

6шт.

9

NSS

NOT SOLD SEPARAT

TAPPING SCREW, no. 8 UNS x 1-1/8

5шт.

10

NSS

NOT SOLD SEPARAT

WASHER - flat, no. 8

1шт.

11

NSS

NOT SOLD SEPARAT

SEALER (Not shown)

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH KIT - dash

2шт.

13

20-1179T1

LAMP

BULB - lamp (no. 194)

16шт.

14

20-1178T1

HOLDER

SOCKET - bulb

16шт.

15

60-2008T1

DIFFUSER

LOUVER - air deflecting

2шт.

16

60-4019T1

ANCHOR

CLIP - louver retainer

4шт.

17

60-4020T1

SUPPORT

MOUNT - lower dash

2шт.

18

60-1948T1

BUSHING,0.3135" ID x 0.5" OD x 0.312"

Louver pivot

4шт.

19

19-82

LOCK NUT

Lock, 1/2 UNC G-B

2шт.

20

19-6123

SELF-TAP SCREW

TAPPING SCREW, no. 8 UNS x 5/8

12шт.

21

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

CAPSCREW - flanged, 1/4 UNC x 1/2 G-5

4шт.

22

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 UNC x 1-1/2 G-5

2шт.

23

19-109

WASHER,1/2"

Flat, 1/2

2шт.
