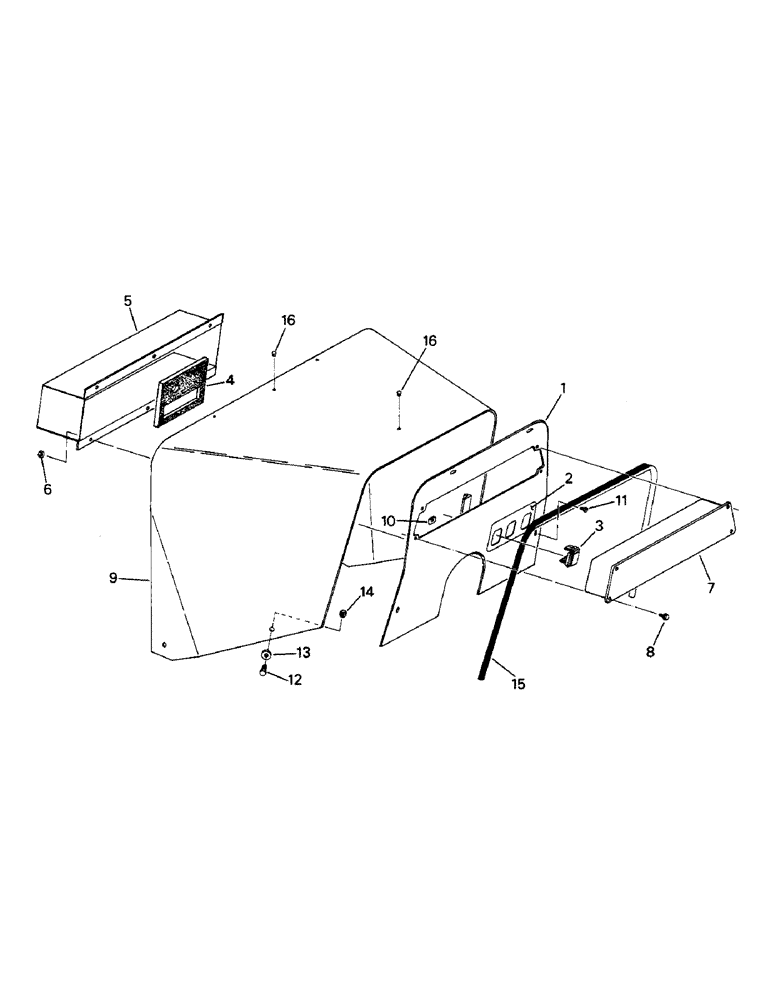

Запчасти Case IH STEIGER (01-32) - DASH AND MOUNTING, ROPS ONLY CAB (10) - CAB

1

60-5832T1

PANEL

Dash

1шт.

2

60-5980T1

DECAL

Switch (With Gray interiors)

1шт.

60-5860T1

DECAL

SPARE PART Switch (With tan interiors)

1шт.

3

60-3210T1

PLUG

Switch hole

2шт.

4

60-5828T1

SEAL

SEAL - foam

1шт.

5

60-5836T1

COVER

Dash

1шт.

6

19-1081

LOCK NUT

Lock, 1/4 UNC G-A

6шт.

7

20-2504T1

CONTROL

MODULE ASSEMBLY - electronic dash (20-2241T91) (Incl. the following)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

See Fig 01-33 for additional information.

1шт.

20-1179T1

LAMP

BULB - lamp (no. 194)

16шт.

20-1178T1

HOLDER

SOCKET - bulb

16шт.

8

19-6123

SELF-TAP SCREW

TAPPING SCREW, no. 8 UNS x 5/8

4шт.

9

60-5834T1

PANEL

CONSOLE - cover

1шт.

10

19-6119

STEEL SHEET NUT

NUT - U type, no. 10 UNC

6шт.

11

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW, no. 10 UNC x 3/4

6шт.

12

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

4шт.

13

19-106

WASHER,5/16", SAE

Flat, 5/16

4шт.

14

19-508

LOCK NUT

Lock, 5/16 UNC G-B

4шт.

15

60-5859T1

GASKET

MOLDING - edge cover

1шт.
