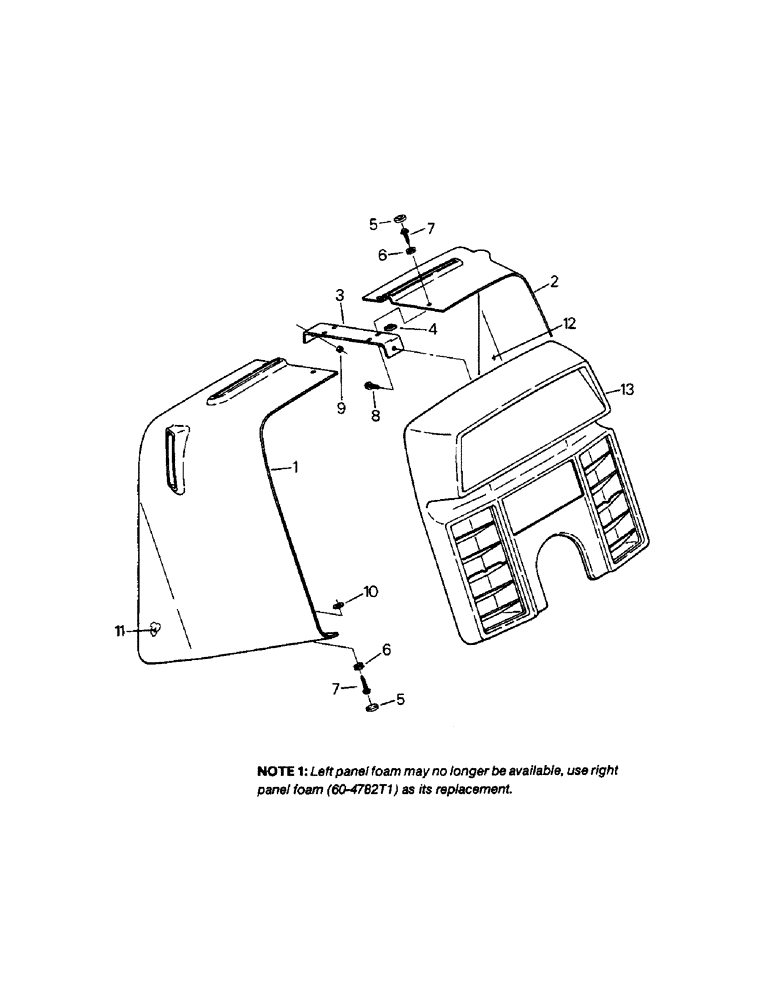

Запчасти Case IH STEIGER (01-31) - DELUXE DASH AND MOUNTING (10) - CAB

1

60-5963T1

PANEL, SIDE

PANEL - dash, left (Gray)

1шт.

60-4787T1

PANEL ASSY.

SPARE PART PANEL - dash, left (Tan)

1шт.

2

60-5964T1

PANEL, SIDE

PANEL - dash, right (Gray)

1шт.

60-4788T1

PANEL ASSY.

SPARE PART PANEL - dash, right (Tan)

1шт.

3

60-4122T1

SUPPORT

STRAP - support

1шт.

4

19-6119

STEEL SHEET NUT

U type, no. 10 UNC

4шт.

5

60-5920T1

CAP

Trim (Gray)

8шт.

19-5735

CAP

Trim (Tan)

1шт.

6

1-8674

CAP WASHER

Trim cap

8шт.

7

19-5986

SELF-TAP SCREW,Hex Wash Hd, #10 x 1 1/4"

No. 10 UNC x 1-1/4

1шт.

8

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

CAPSCREW - flanged, 1/4 UNC x 1-1/4 G-5

1шт.

9

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

1шт.

10

19-105

WASHER,1/4", SAE

Fat

1шт.

11

60-4783T1

FOAM

Panel, left

1шт.

12

60-4782T1

FOAM

Panel, right

1шт.

13

DASH ASSEMBLY (See Fig. 01-33)

1шт.
