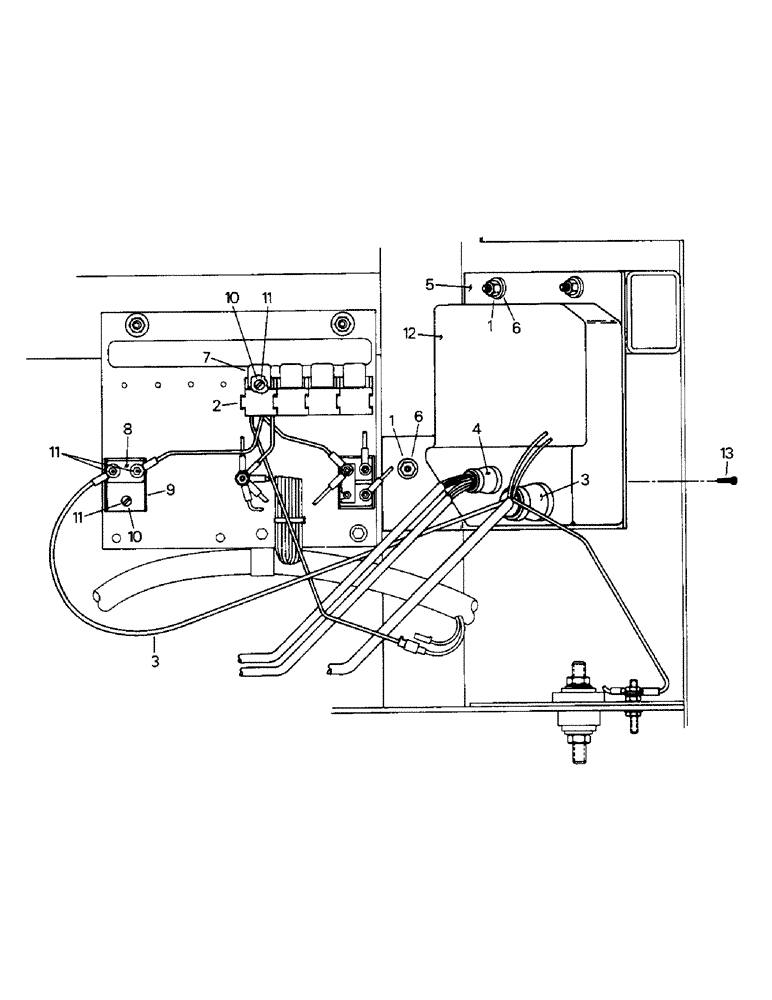

Запчасти Case IH STEIGER (10-06) - THREE POINT ELECTRONIC BOX AND MOUNTING Options & Miscellaneous

1

19-802

NUT

5/16 UNC G-A

3шт.

2

20-2336T1

HARNESS

Relay wire

1шт.

3

20-2398T1

HARNESS

3 point control

1шт.

4

20-2399T1

HARNESS

3 point actuating

1шт.

5

50-2853T1

PLATE

Box mounting

1шт.

6

19-106

WASHER,5/16", SAE

Flat, 5/16

3шт.

7

1-7877

RELAY

Electric

1шт.

8

22-809

BREAKER

Circuit, 5 amp.

1шт.

9

20-1171T1

SUPPORT

BRACKET - circuit breaker

1шт.

10

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW, No. 10 UNF x 1/2

3шт.

11

19-481

SERRATED NUT

Keps, No. 10 UNF

5шт.

12

20-2396T91

BOX

ASSEMBLY - 3 point electronic

1шт.

13

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

TAPPING SCREW, No. 10 UNS x 3/4

4шт.
