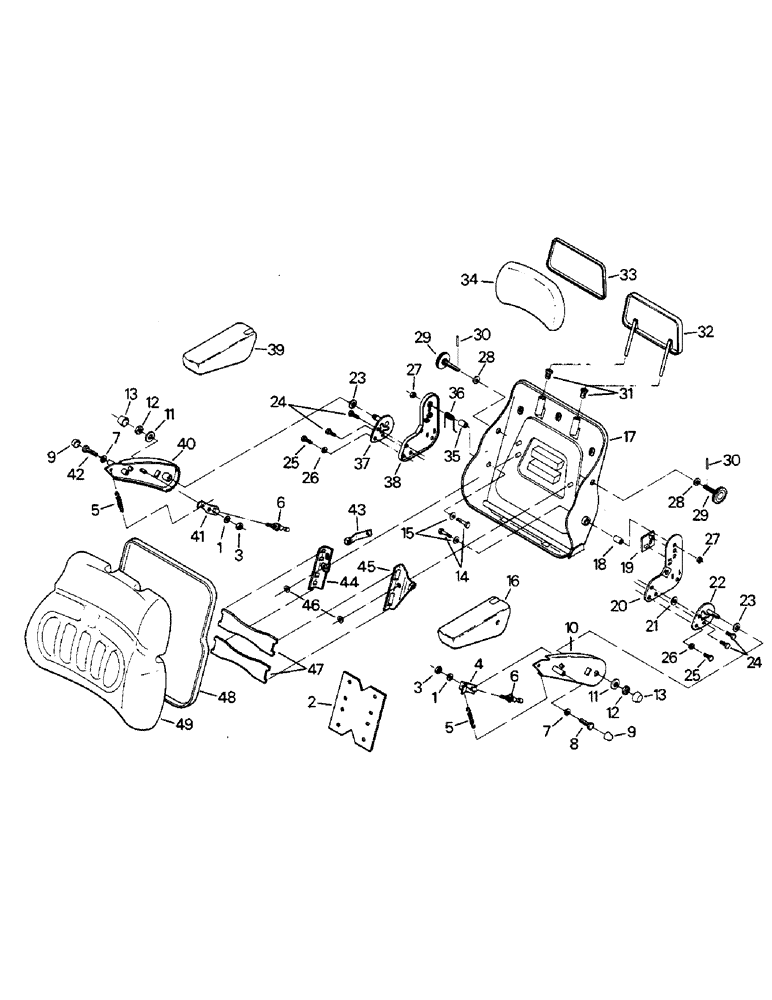

Запчасти Case IH STEIGER (01-29) - SEAT ASSEMBLY, BACK CUSHION AND ARMREST (10) - CAB

1

40-1153

WASHER

Flat, M13

2шт.

2

60-1705T1

PLATE

Plastic

1шт.

3

60-1655T1

NUT

M12

2шт.

4

60-3188T1

RETAINER

Armrest adjustment, left

1шт.

5

60-3189T1

SPRING

Armrest adjustment retainer

2шт.

6

60-1650T1

STEERING KNUCKLE

SPINDLE - adjustable, armrest

2шт.

7

40-1008

WASHER

Flat, M10

2шт.

8

40-1073

CAPSCREW,Hex, M10 x 1.5 x 70mm, Gr 8.8

CAPSCREW, M10 x 70 MM

1шт.

9

60-1656T1

COVER

Protective

2шт.

10

60-3190T1

SUPPORT

Armrest, left

1шт.

11

40-1156

WASHER

Fat, M25

2шт.

12

60-1653T1

LOCK NUT

Lock, M24 x 1.5

2шт.

13

60-3240T1

COVER

Protective

2шт.

14

40-1150

CAPSCREW,Hex, M8 x 1.25 x 30mm, Gr 8.8

CAPSCREW, M8 x 30

2шт.

15

40-1007

WASHER

Flat, M8

2шт.

16

60-3194T1

ARMREST

Left

1шт.

17

60-4860T1

BACKREST

PAN - backrest

1шт.

18

60-4852T1

SPACER

Armrest support mount

1шт.

19

60-4859T1

SPACER

1шт.

20

60-4858T1

MOUNTING PARTS

MOUNT, armrest support, left

1шт.

21

60-1679T1

WASHER

Flat, M10

1шт.

22

60-3256T1

LARGE PLATE

PLATE, LARGE Bearing, left

1шт.

23

60-1654T1

WASHER

Flat, M24

2шт.

24

60-4847T1

SCREW

CAPSCREW, M8 x 35 MM

4шт.

25

19-214

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 5

CAPSCREW, 7/16 UNF x 1-3/4

2шт.

26

19-193

LOCK WASHER,Ext Tooth, 7/16"

Fat, 7/16

2шт.

27

60-4845T1

NUT

M8

2шт.

28

60-1667T1

WASHER

M11

2шт.

29

60-3200T1

KNOB

Lumbar support

2шт.

30

40-1176

PIN

Spring, M3 x 20 MM

2шт.

31

60-1669T1

BUSHING

Headrest

2шт.

32

60-1672T1

SUPPORT

Backrest extension

1шт.

33

60-1642T1

SUPPORT

EXTRUSION - plastic

1шт.

34

60-5952T1

CUSHION

Headrest (With gray cloth upholstery)

1шт.

60-4916T1

CUSHION

Headrest (With tan cloth upholstery)

1шт.

35

60-4850T1

SPACER

Armrest support mount

1шт.

36

60-4849T1

SPRING

1шт.

37

60-3257T1

PLATE

Bearing, right

1шт.

38

60-4851T1

MOUNTING PARTS

MOUNT - armrest support, right

1шт.

39

60-3199T1

ARMREST

Right

1шт.

40

60-3195T1

SUPPORT

Armrest, right

1шт.

41

60-3196T1

RETAINER

Armrest adjustment, right

1шт.

42

40-1069

CAPSCREW,Hex, M10 x 1.5 x 45mm, Gr 8.8

CAPSCREW, M10 x 45 MM

1шт.

43

60-1695T1

BEARING

SPARE PART

1шт.

44

60-1696T1

BRACKET

Angled

1шт.

45

60-1698T1

BRACKET

BEARING

1шт.

46

60-1697T1

RING, SNAP

RING SNAP Retainer

2шт.

47

60-1699T1

PLATE

SPARE PART

2шт.

48

60-1641T1

SUPPORT

EXTRUSION - plastic

1шт.

49

60-5950T1

CUSHION

Seat back (With gray cloth upholstery)

1шт.

60-4915T1

CUSHION

Seat back (With tan cloth upholstery)

1шт.
