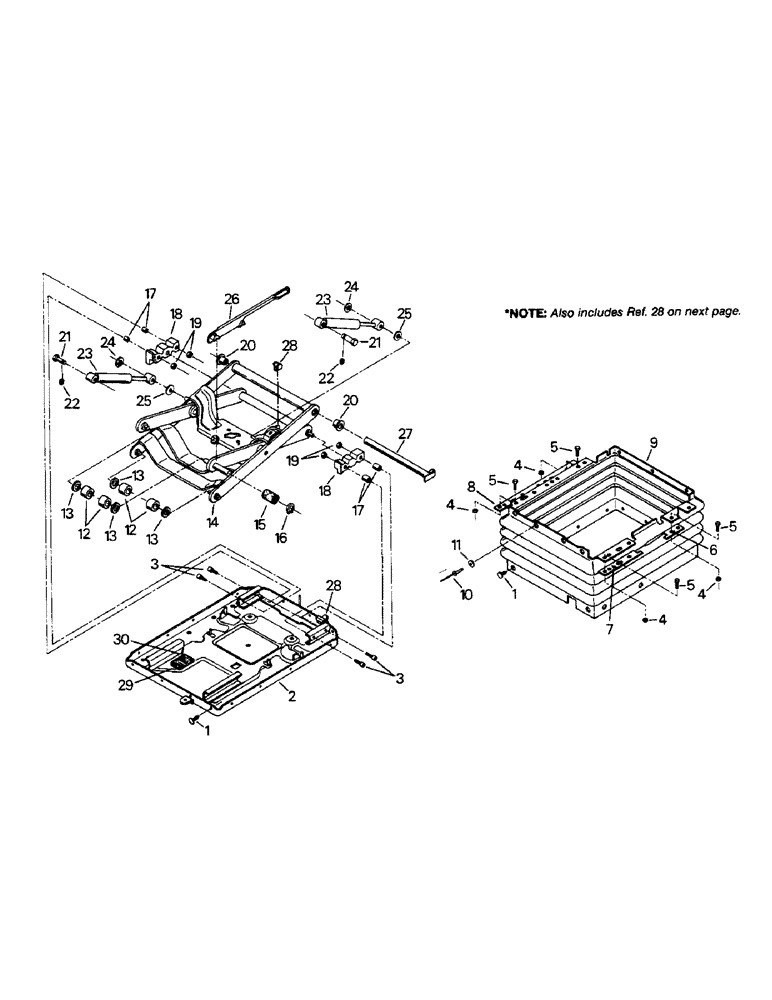

Запчасти Case IH STEIGER (01-25) - SEAT ASSEMBLY, UPPER SUSPENSION (10) - CAB

1

60-1613T1

FASTENER

FASTENER - snap, boot

25шт.

2

60-4902T91

MOUNTING PARTS

MOUNT ASSEMBLY - lower suspension (Includes refs. 28-30)

1шт.

3

40-1157

RING

CAPSCREW - socket head, M6 x 20 MM

4шт.

4

60-4845T1

NUT

Lock, M8

4шт.

5

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

CAPSCREW, M8 x 16 MM

4шт.

6

60-4913T1

PLATE

STRIP - backup, boot

1шт.

7

60-4912T1

PLATE

STRIP - backup, book

1шт.

8

60-1632T1

PLATE

STRIP - backup, boot

1шт.

9

60-4911T91

BELLOWS

ASSEMBLY - suspension cover (Includes refs. 4-8, 10 and 11)

1шт.

Also includes Ref. 28 on next figure.

1шт.

10

1-2503

RIVET,Pop, .146" x .425"

Pop, 5/32 dia. x 1/4

1шт.

11

19-699

WASHER,3/16"

Flat, 1/4

1шт.

12

60-4879T1

NEEDLE BEARING

Needle roller

4шт.

13

60-4878T1

FELT SEAL

Dust, felt

4шт.

14

60-4907T91

ANCHOR

MOUNT ASSEMBLY - swing arm (Includes refs. 15, 16, 20 and 28)

1шт.

15

60-4905T1

BUMPER

1шт.

16

60-4906T1

RING, SNAP

RING SNAP RING - snap, M12

1шт.

17

60-4908T1

SPACER

SPARE PART Bearing block

4шт.

18

60-4910T91

BEARING ASSY

BLOCK KIT - bearing (Includes refs. 1, 3, 17 and 19)

1шт.

19

40-1229

NUT,M6, Cl 8

M6

4шт.

20

60-4904T1

FLANGED BEARING

BEARING - flanged

2шт.

21

60-3233T1

PIN

PIN - shock absorber

2шт.

22

40-1182

CIRCLIP,M6

RING - snap, M5

2шт.

23

60-4893T91

SHOCK ABSORBER

SHOCK ABSORBER ASSEMBLY (Includes refs. 1, 10, 11, 21, 22, 24 and 25)

2шт.

24

60-1697T1

RING, SNAP

RING SNAP RING - push-on retaining

2шт.

25

40-1007

WASHER

Flat, M8

2шт.

26

60-4901T91

CAM

CAM ASSEMBLY - sliding (Includes refs. 1, 5, 10, 11, 15, 16, 21, 22, 27 and 28)

1шт.

Also includes Ref. 28 on next figure.

1шт.

27

60-4885T1

ROLLER

PIN - swing arm pivot

1шт.

28

60-4881T1

CLIP,ELECTRICAL

CLIP - cable retainer

4шт.

29

60-4903T1

BUMPER

1шт.

30

NSS

NOT SOLD SEPARAT

RIVET - pop

1шт.
