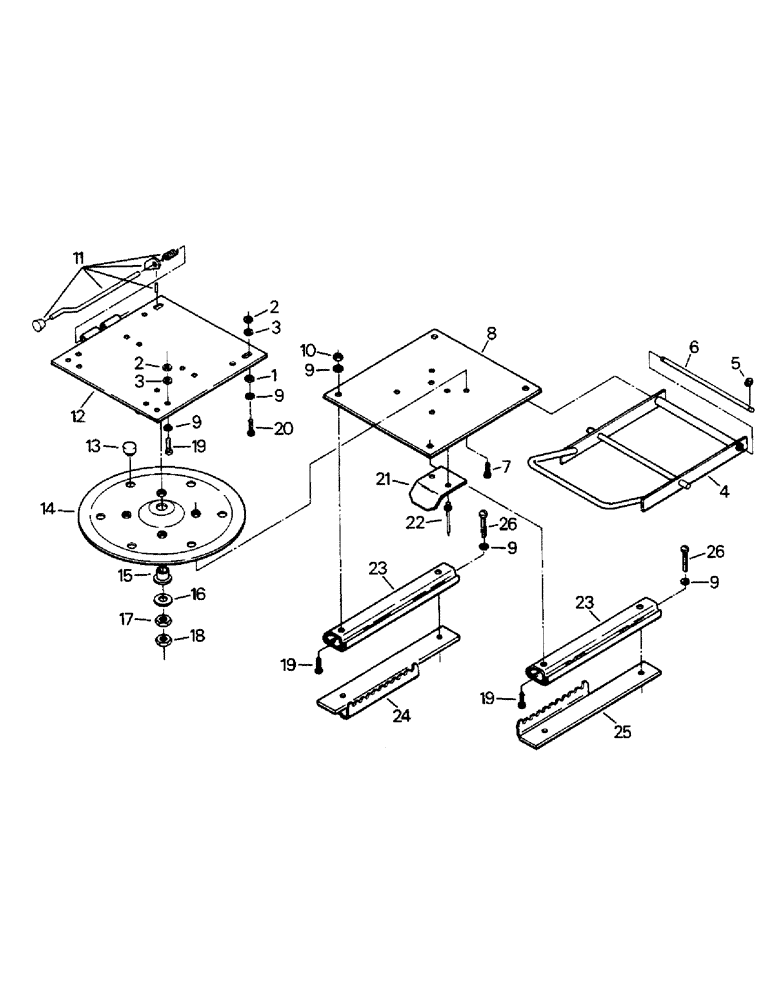

Запчасти Case IH STEIGER (01-24) - SEAT ASSEMBLY, SWIVEL AND SLIDE (10) - CAB

1

40-1007

WASHER

Flat, M8

2шт.

2

60-1679T1

WASHER

Flat, M10

4шт.

3

60-1667T1

WASHER

Flat, M11

4шт.

4

60-3249T1

HANDLED SHAFT

SPARE PART HANDLE ASSEMBLY - fore and aft adjustment

1шт.

5

40-1182

CIRCLIP,M6

RING - snap, M5

2шт.

6

60-3248T1

ROD

SPARE PART Handle pivot

1шт.

7

60-4843T1

SCREW

MACHINE SCREW, M8 x 16 MM

4шт.

8

60-3250T1

PLATE ASSY.

SPARE PART PLATE - swivel mounting

1шт.

9

40-1154

LOCK WASHER

Lock, M8

12шт.

10

40-1121

NUT

SPARE PART M8

4шт.

60-3255T91

LINK

SWIVEL ASSEMBLY, Includes: Ref. 11 - 18

1шт.

11

60-3247T1

LEVER ASSY.

Swivel

1шт.

12

60-3246T91

PLATE ASSY.

Seat mounting (Includes: Ref. 15)

1шт.

13

60-1619T1

BUSHING

6шт.

14

60-1625T1

LINK

PLATE - swivel

1шт.

15

60-1621T1

BUSHING

Swivel plate

1шт.

16

60-1624T1

THRUST BEARING

Thrust

1шт.

17

60-1623T1

NUT

M16

1шт.

18

60-1622T1

LOCK NUT

Lock, M16

1шт.

19

40-1164

BOLT,Sl Cheese Hd, M8 x 1.25 x 16mm

Machine, M8 x 16 MM

6шт.

20

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

CAPSCREW, M8 x 16 MM

2шт.

21

60-3368T1

SPRING

SPARE PART PLATE - spring

1шт.

22

1-2503

RIVET,Pop, .146" x .425"

Pop, 5/32 dia. x 1/4

2шт.

23

60-1577T1

RAIL ASSY.

Fore and aft seat slide

2шт.

24

60-3251T1

PLATE

Right locking, slide rail

1шт.

25

60-3253T1

PLATE

Left locking, slide rail

1шт.

26

40-1233

SCREW,Sl Cheese Hd, M8 x 1.25 x 20mm

SPARE PART Machine - M8 x 20 MM

4шт.
