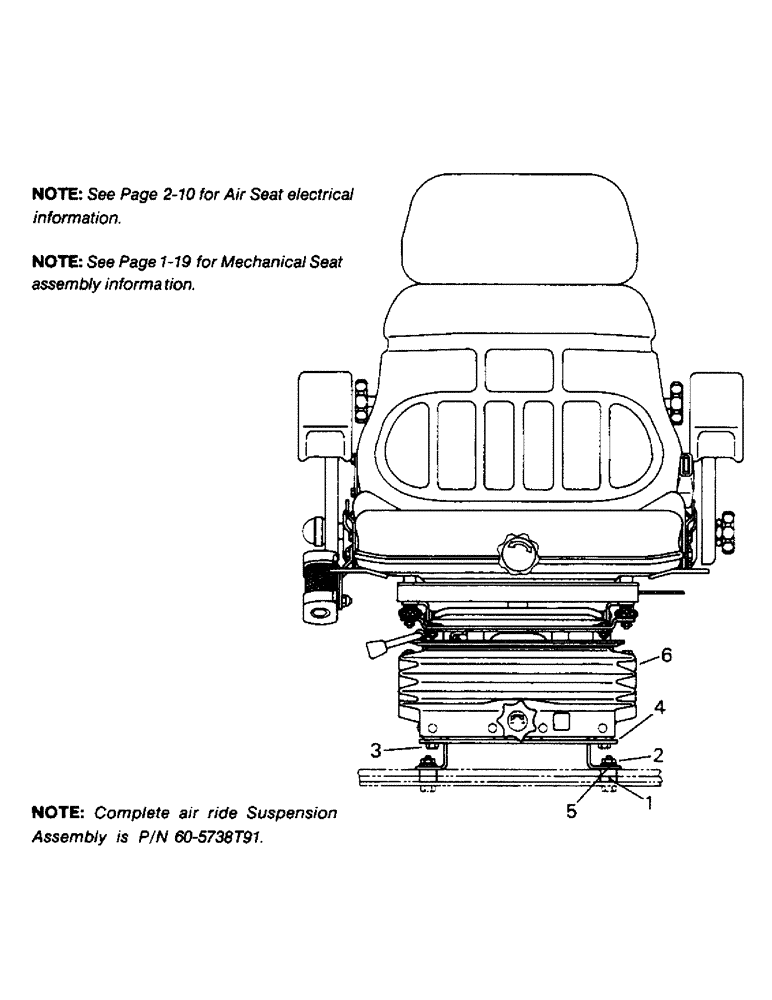

Запчасти Case IH STEIGER (01-23) - SEAT AND SUSPENSION, AIR SEAT (10) - CAB

1

60-2286T1

SPACER

Seat, Serial Range: mount-floorboard

4шт.

2

19-82

LOCK NUT

Lock, 1/2 UNC G-B

4шт.

3

40-1090

CAPSCREW,Hex, M8 x 1.25 x 20mm, Gr 8.8

CAPSCREW, M8 x 1.25 x 20 MM

4шт.

4

60-4789T2

ANCHOR

MOUNT - seat

1шт.

5

19-463

WASHER,1/2", SAE

Flat, 1/2

4шт.

6

60-5949T91

SEAT

ASSEMBLY - air (With gray cloth upholstery)

1шт.

See the following 7 figures.

1шт.

60-4793T91

SEAT ASSY.

Air (With tan cloth upholstery)

1шт.

See the following 7 figures.

1шт.
