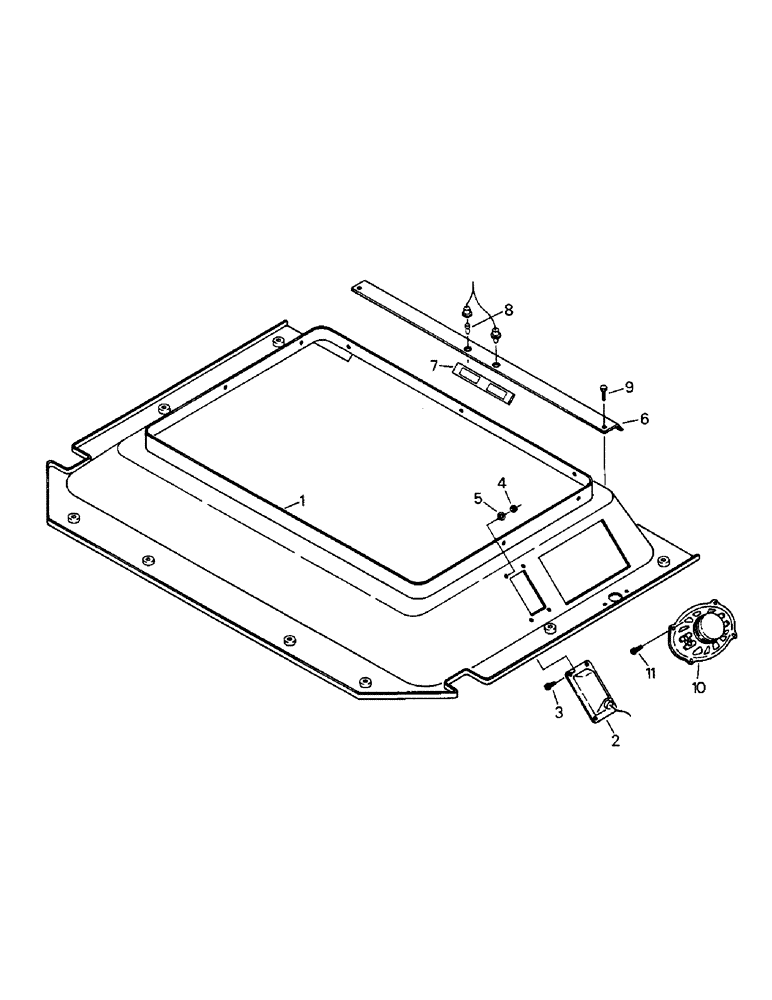

Запчасти Case IH STEIGER (01-10) - DELUXE HEADLINER (10) - CAB

1

60-5925T1

ROOF LINING

HEADLINER (Gray)

1шт.

60-4014T1

ROOF LINING

HEADLINER (Tan)

1шт.

2

1-9063T91

LIGHT

LIGHT ASSEMBLY - console (Service breakdown below)

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - dome light

1шт.

22-1146

BULB

Lamp (No. 1141)

1шт.

1-9064

LENS

Dome light

1шт.

155830

ANGLE BAR

MACHINE SCREW, No. 6 UNC x 1/4

2шт.

3

155893

SCREW,Cross Flat Hd, #8 - 32 x 5/8"

MACHINE SCREW, No. 8 UNC x 5/8

4шт.

4

19-5621

LOCK NUT,#8-32, GB

No. 8 UNC G-A

4шт.

5

19-281

WASHER,#8

Flat, no. 8

4шт.

6

60-4038T1

PLATE

Light mounting

1шт.

7

60-4029T1

LARGE PLATE

PLATE, LARGE DIFFUSER PLATE - light

1шт.

8

20-1384T1

BULB

Lamp (No. 53)

2шт.

9

9418998

SCREW,1/4" - 20 x 3/8", Gr 5

CAPSCREW, 1/4 UNC x 3/8 G-5

2шт.

10

60-5748T1

SPEAKER

Radio (60-2077T1)

2шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

11

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

Cross Pan Hd, #10-24 x 5/8"

8шт.
