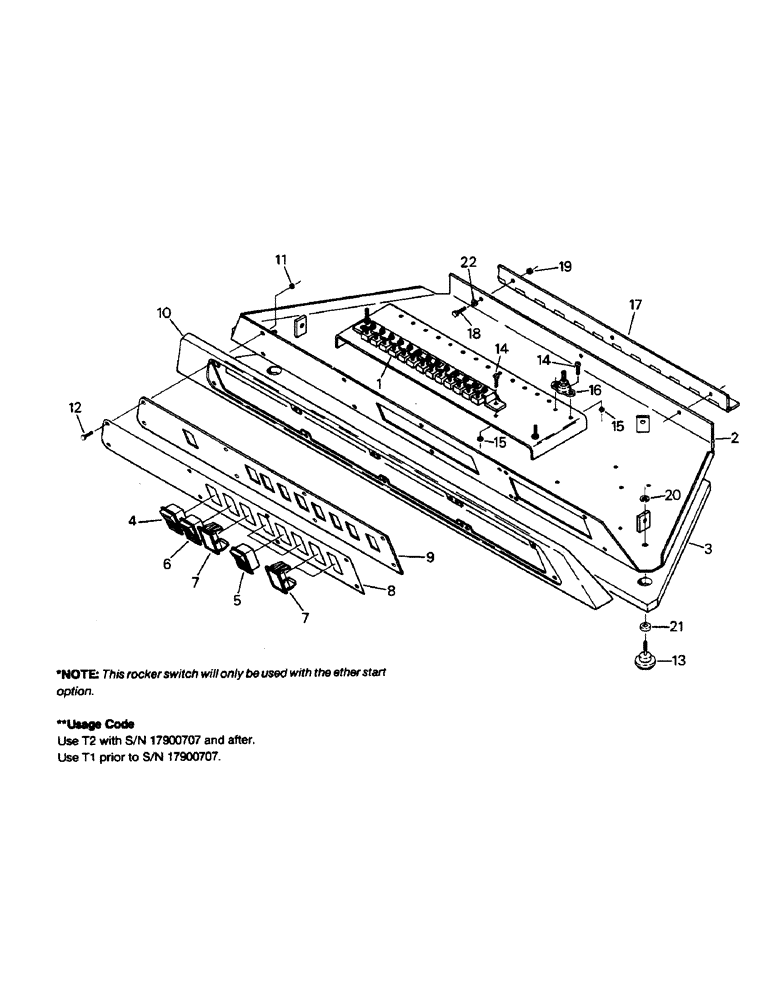

Запчасти Case IH STEIGER (01-09) - DELUXE OVERHEAD DOOR (10) - CAB

1

BREAKER ASSEMBLY - circuit (See Cab Overhead Wiring, 02-14)

1шт.

2

60-4027T2

DOOR

Console (60-4027T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

3

60-5923T1

NOISE PROTECTION

INSULATION - door (Gray)

1шт.

60-4028T1

INSULATOR

INSULATION - door (Tan)

1шт.

4

20-1968T1

SWITCH

Rocker, master light (20-1968T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

5

01-6154

SWITCH - rocker, ether start (1-6154)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

This rocker switch will only be used with the ether start option

1шт.

6

01-6150

SWITCH - rocker, dome light, front outlet, rear outlet and dash lights (Quantity 3 without ROPS post gauges)

4шт.

7

60-3210T1

PLUG

Switch hole (Quantity 2 with ether start option, quantity 1 without ROPS post gauges)

3шт.

8

60-4031T2

DECAL

DECAL - overhead (With tan interiors and 6 rocker switch openings) (C) **

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

Use T2 version on Puma and Wildcat. T3 version must be used on 9110 and 9130.

1шт.

9

60-4032T1

PANEL

SPARE PART Rocker switch

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

10

60-5928T1

COVER

Console door, (Gray)

1шт.

60-4009T1

COVER

SPARE PART Console door, (Tan)

1шт.

11

19-5621

LOCK NUT,#8-32, GB

No. 8 UNC G-A

8шт.

12

19-6030

SCREW

Machine, no. 8 UNC x 3/4

8шт.

13

60-4033T1

BUTTON

KNOB ASSEMBLY

2шт.

14

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW, no. 10 UNF x 1/2

4шт.

15

19-481

SERRATED NUT

Keps, no. 10 UNF G-A

4шт.

16

20-1451T1

BLOCK

JUNCTION BLOCK

1шт.

17

60-4034T1

HINGE

Console door

1шт.

18

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 1/2 G-5

3шт.

19

19-1081

LOCK NUT

Lock, 1/4 UNC G-A

3шт.

20

2-7333T1

WASHER

RING - snap (19-6130)

2шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

21

19-6126

SPACER

2шт.

22

19-105

WASHER,1/4", SAE

Flat, 1/4

3шт.
