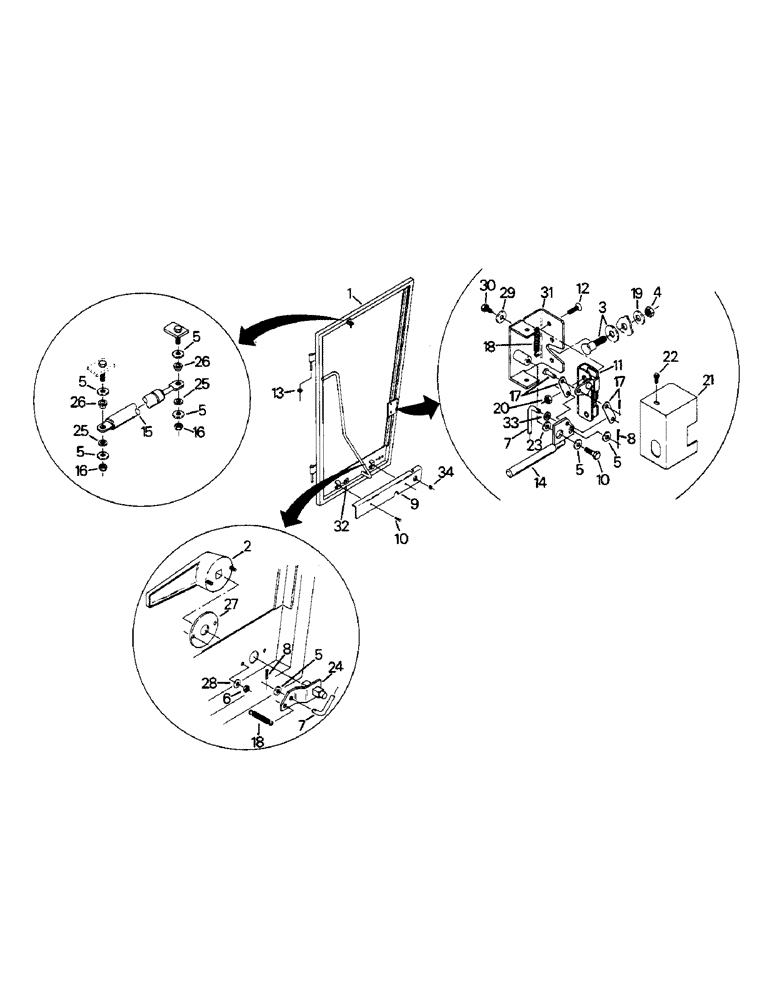

Запчасти Case IH STEIGER (01-07) - DELUXE DOOR ASSEMBLY (10) - CAB

1

60-4991T1

DOOR

Cab

1шт.

2

60-5063T2

HANDLE

Outer (60-5063T1)

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

3

60-4193T1

LATCH

STRIKER - latch, door

1шт.

4

19-80

LOCK NUT

7/16 UNC G-B (19-79)

1шт.

Error correction only.

1шт.

5

19-105

WASHER,1/4", SAE

Flat, 1/4

7шт.

6

19-351

NUT,#10 - 24, GA

No. 10 UNC G-A

2шт.

7

60-4999T1

ROD

Latch actuating

1шт.

8

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

9

60-5785T1

COVER

Door latch

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

No S/N available; early models * did not have Bearing (#34) in Cover (#9)

1шт.

9

60-5000T1

COVER

SPARE PART Door latch

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

No S/N available; early models * did not have Bearing (#34) in Cover (#9)

1шт.

10

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

CAPSCREW, 1/4 UNC x 5/8 G-5

3шт.

11

60-5001T1

LATCH

Door

1шт.

12

19-6127

SCREW

MACHINE SCREW, 5/16 UNC x 1-1/4

3шт.

13

60-4585T1

SPACER

Nylon, 3/8 x 3/4 x 1/16 thk

5шт.

14

60-5002T1

HANDLE

Inner

1шт.

15

60-5593T1

SPRING

CYLINDER ASSEMBLY - spring, door

1шт.

16

19-1081

LOCK NUT

Lock, 1/4 UNC G-A

2шт.

17

2-3604T1

LINK

Connecting

1шт.

18

60-4075T1

SPRING

Latch return

2шт.

19

19-107

WASHER

Flat, 3/8

1шт.

20

19-5777

LOCK NUT

Lock, jam, 5/16 UNC G-A

3шт.

21

60-5005T1

COVER

Door latch

1шт.

22

19-948

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

TAPPING SCREW, No. 8 UNC x 3/8

2шт.

23

60-4364T1

BUSHING

Nylon, 9/32 x 1/2 x 5/32 thk

1шт.

24

60-5038T1

PIVOT

PIVOT - door handle

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

No S/N available; early models * did not have Bearing (#34) in Cover (#9)

1шт.

24

60-5784T1

PIVOT

Door handle

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

No S/N available; early models * did not have Bearing (#34) in Cover (#9)

1шт.

25

19-6201

WASHER

(Special)

2шт.

26

19-6202

WASHER

Shouldered

2шт.

27

60-5062T1

GASKET

Door handle

1шт.

28

19-195

WASHER,#10

Flat, no. 10 x 9/16 x 3/64 thk

2шт.

29

19-700

WASHER,5/16"

Flat, 5/16

2шт.

30

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

2шт.

31

60-5592T1

BRACKET

Latch mounting

1шт.

32

19-6200

CLIP

NUT - clip, 1/4 UNC

2шт.

33

19-5688

WASHER

Nylon, 1/4 x 1/2 x 11/64 thk

1шт.

34

19-6255

RING RACE

BEARING - door handle pivot

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

No S/N available; early models * did not have Bearing (#34) in Cover (#9)

1шт.
