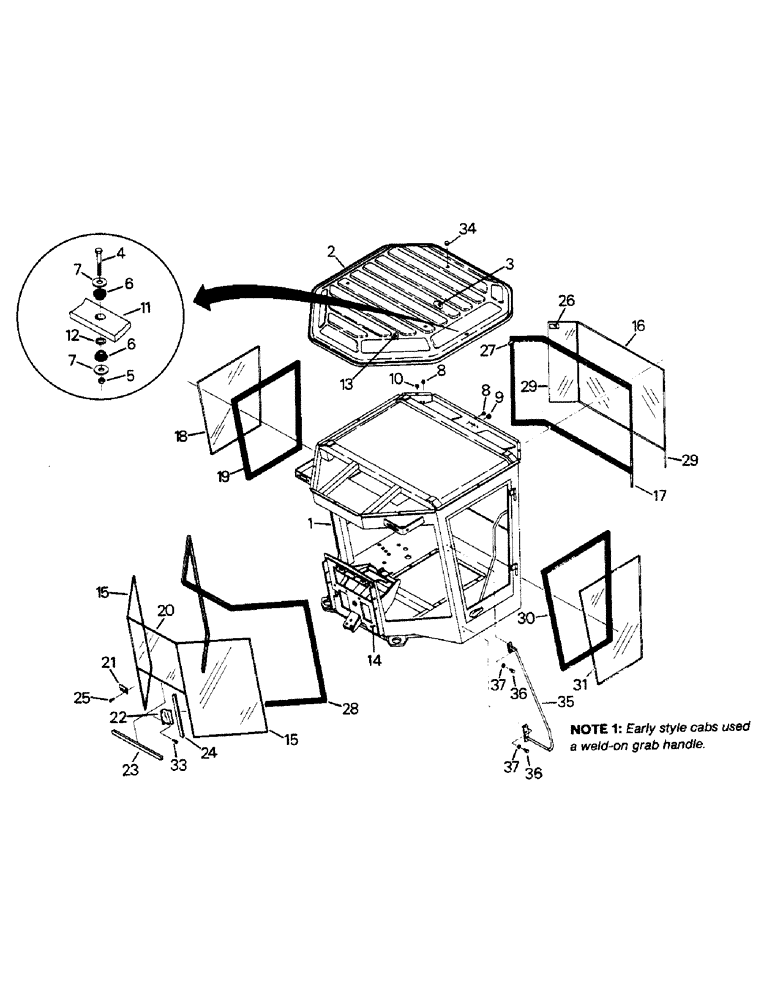

Запчасти Case IH STEIGER (01-01) - DELUXE CAB AND WINDOWS (10) - CAB
№
Артикул
Название
Примечание
Количество
1
CAB STRUCTURE (Special order item)
1шт.
2
60-4801T2
TOP
CAP - cab roof (Green)
1шт.
2
60-5970T1
ROOF
CAP - cab roof (Red)
1шт.
3
60-4450T2
FOAM
Cab top, rear
1шт.
4
19-550
BOLT,Hex, M16 x 35mm, Cl 10.9
CAPSCREW, 1/4 UNC x 1-1/2 G-5
8шт.
5
19-1081
LOCK NUT
Lock, 1/4 UNC G-A
8шт.
6
60-1826T1
BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L
Rubber snubber
16шт.
7
9421394
WASHER
Flat, 1/4 x 1.00 x .06 thk
16шт.
8
60-4582T1
PLUG
For 5/16 diameter hole
13шт.
9
31-2175
PLUG
For 3/4 diameter hole
4шт.
10
60-4401T1
PLUG
For 5/8 diameter hole
2шт.
11
60-4583T1
FOAM
Roof cap
1шт.
12
60-4584T1
WASHER
Nylon, 9/16 x 3/4 x 3/16 thk
8шт.
13
60-4657T1
FOAM
Cab top, front
1шт.
14
60-4481T1
FOAM
Firewall
1шт.
15
60-3540T1
CAB GLASS ASSY
GLASS - front angled
2шт.
16
60-3859T1
GLASS
Rear
1шт.
17
60-3860T1
SEAL, GLASS
MOLDING - rear window
1шт.
18
60-3856T1
GLASS,CAB
Side
1шт.
19
60-3857T1
SEAL, GLASS
MOLDING - side window
1шт.
20
60-4315T1
WINDSHIELD
GLASS - front
1шт.
21
60-2774T1
CLAMP
CLIP - front window retaining
2шт.
22
60-4146T1
SUPPORT
CLIP - angled window retaining
2шт.
23
60-3039T1
SEAL, GLASS
ISOLATOR - front window
1шт.
24
60-3040T1
SEAL, GLASS
ISOLATOR - angle window
2шт.
25
19-5937
SELF-TAP SCREW
TAPPING SCREW, no. 10 UNC x 1/2
4шт.
26
2-6879T1
DECAL
Emergency exit
1шт.
27
20-1814T1
SEAL, GLASS
SLEEVE - heat shrink
1шт.
28
60-4682T1
MOLDING
Front and angled windows
1шт.
29
60-3858T1
GLASS
Rear angled
2шт.
30
60-4602T1
SEAL, GLASS
MOLDING - door window
1шт.
31
60-4603T1
GLASS
Door
1шт.
32
1-1055
SEALANT
SEALANT - RTV window sealing (Used on refs. 15, 16, 20 and 29)
1шт.
33
19-5888
SELF-TAP SCREW
TAPPING, 1/4 UNC x 1/2
4шт.
35
60-5861T1
HANDLE
Grab
1шт.
Early style cabs used a weld-on grab handle
1шт.
36
19-5348
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
CAPSCREW, 3/8 UNC x 7/8 G-5
4шт.
37
19-107
WASHER
Flat, 3/8
4шт.
Выбрано товаров: 39
