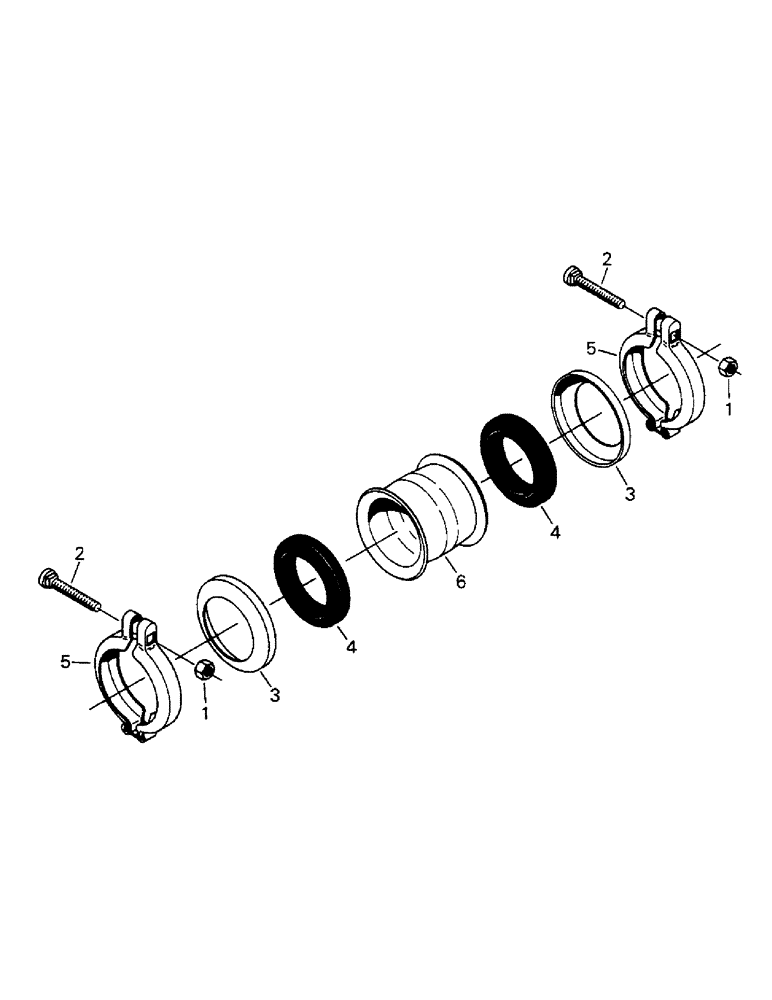

Запчасти Case IH STEIGER (08-20) - TUBE JOINT ASSEMBLY (07) - HYDRAULICS

50-2782T91

TUBE

JOINT ASSEMBLY - tube (1-1/4 inch O.D. tube), Includes: Ref. 1 - 6

1шт.

1

19-802

NUT

5/16 UNC G-A

2шт.

2

50-2855T1

CAPSCREW,5/16" - 18 x 2"

CAPSCREW

2шт.

3

50-2857T1

RETAINER

Gasket

2шт.

4

50-2858T1

GASKET

Joint

2шт.

5

50-2856T1

COUPLING

Joint

2шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - tube joint

1шт.
