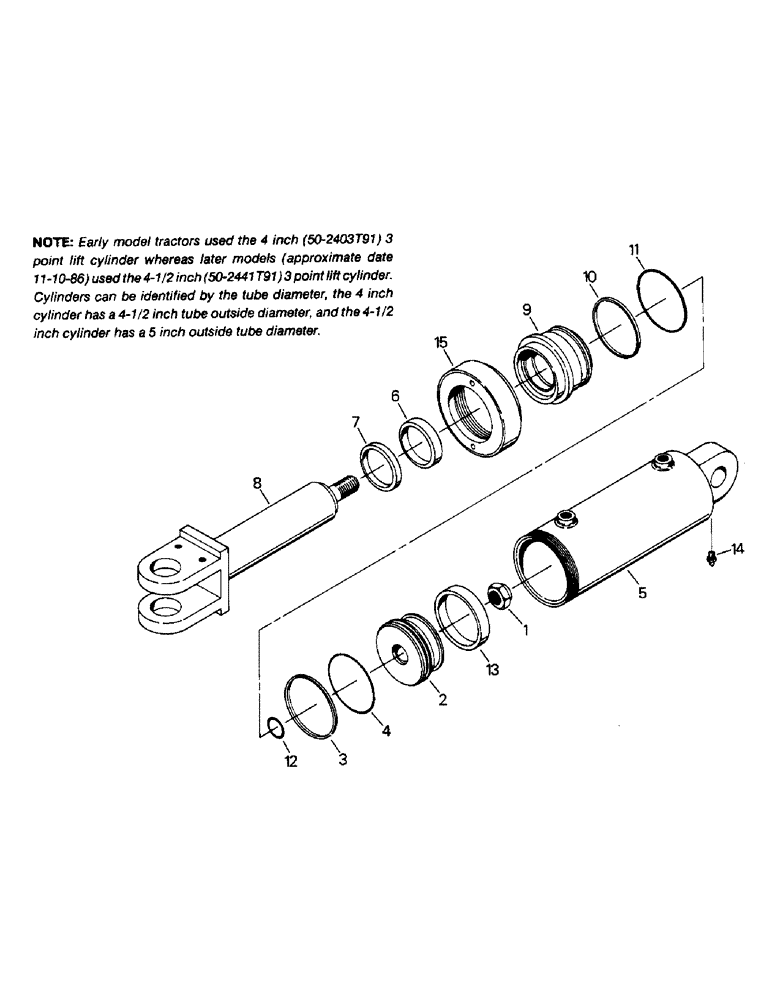

Запчасти Case IH STEIGER (10-03) - THREE POINT COMPONENTS, LIFT CYLINDER Options & Miscellaneous

50-2441T91

CYLINDER

ASSEMBLY - 4-1/2 inch, Includes: Ref. 1 - 15

1шт.

Early model tractors used the 4 inch (50-2403T91) 3 point lift cylinder whereas later models (approximate date 11-10-86) used the 4-1/2 inch (50-2441T91) 3 point lift cylinder. Cylinders can be identified by the tube diameter, the 4 inch cylinder has a 4-1/2 inch tube outside diameter, and the 4-1/2 inch cylinder has a 5 inch outside tube diameter.

1шт.

35-1642T91

SEAL KIT

Seal, Includes: Ref. 3, 4, 6, 7, 10, 11,12 and 13

1шт.

1

19-5582

LOCK NUT

Lock, special

1шт.

2

50-2442T1

JACK PISTON

Cylinder

1шт.

3

50-2443T1

PISTON RING

RING - piston

1шт.

Part of Seal Kit, P/N 35-1642T91

1шт.

4

50-2444T1

O-RING,3.987" ID x 0.103" Width

Piston seal

1шт.

Part of Seal Kit, P/N 35-1642T91

1шт.

5

50-2445T1

TUBE ASSY.

Cylinder

1шт.

6

1-9858T1

SEAL

Piston rod

1шт.

Part of Seal Kit, P/N 35-1642T91

1шт.

7

1-9859T1

WIPER SEAL

SEALRING WIPER - piston rod

1шт.

Part of Seal Kit, P/N 35-1642T91

1шт.

8

50-2412T2

ROD

Piston

1шт.

9

50-2436T1

CYLINDER END CAP

GUIDE - piston rod

1шт.

10

50-2437T1

WASHER

WASHER - backup

1шт.

Part of Seal Kit, P/N 35-1642T91

1шт.

11

50-2438T1

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

Seal

1шт.

Part of Seal Kit, P/N 35-1642T91

1шт.

12

1-9857T1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING - seal

1шт.

Part of Seal Kit, P/N 35-1642T91

1шт.

13

50-2439T1

WEAR RING,107.95mm ID x 114.3mm OD x 15.88mm Thk

1шт.

14

31-094

FITTING - grease, 1/8 NPT

1шт.

15

50-2440T1

CLAMP

COLLAR - locking

1шт.

50-2403T91

CYLINDER

ASSEMBLY - 4 inch, Includes: Ref. 1 - 15

1шт.

Early model tractors used the 4 inch (50-2403T91) 3 point lift cylinder whereas later models (approximate date 11-10-86) used the 4-1/2 inch (50-2441T91) 3 point lift cylinder. Cylinders can be identified by the tube diameter, the 4 inch cylinder has a 4-1/2 inch tube outside diameter, and the 4-1/2 inch cylinder has a 5 inch outside tube diameter.

1шт.

35-1593T91

SEAL KIT

Seal, Includes: Ref. 3, 4, 6, 7, 10, 11 and 12

1шт.

1

19-5582

LOCK NUT

Lock, special

1шт.

2

50-2409T1

PISTON

SPARE PART Cylinder

1шт.

3

50-2414T1

RING, PISTON

1шт.

Part of Seal Kit, P/N 35-1593T91

1шт.

4

50-2416T1

O-RING,3.487" ID x 0.103" Width

Seal

1шт.

Part of Seal Kit, P/N 35-1593T91

1шт.

5

50-2404T1

TUBE ASSY.

Cylinder

1шт.

6

1-9858T1

SEAL

Piston rod

1шт.

Part of Seal Kit, P/N 35-1593T91

1шт.

7

1-9859T1

WIPER SEAL

SEALRING WIPER - piston rod

1шт.

Part of Seal Kit, P/N 35-1593T91

1шт.

8

50-2412T2

ROD

Piston

1шт.

9

50-2410T1

GUIDE

SPARE PART Piston rod

1шт.

10

50-2417T1

WASHER

Backup

1шт.

Part of Seal Kit, P/N 35-1593T91

1шт.

11

50-2418T1

O-RING,3.6" ID x 0.21" Width

Seal

1шт.

Part of Seal Kit, P/N 35-1593T91

1шт.

12

1-9857T1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING - seal

1шт.

Part of Seal Kit, P/N 35-1593T91

1шт.

13

50-2415T1

RING

Wear

1шт.

Part of Seal Kit, P/N 35-1593T91

1шт.

14

31-094

FITTING - grease, 1/8 NPT

1шт.

15

50-2411T1

COLLAR

SPARE PART Locking

1шт.
