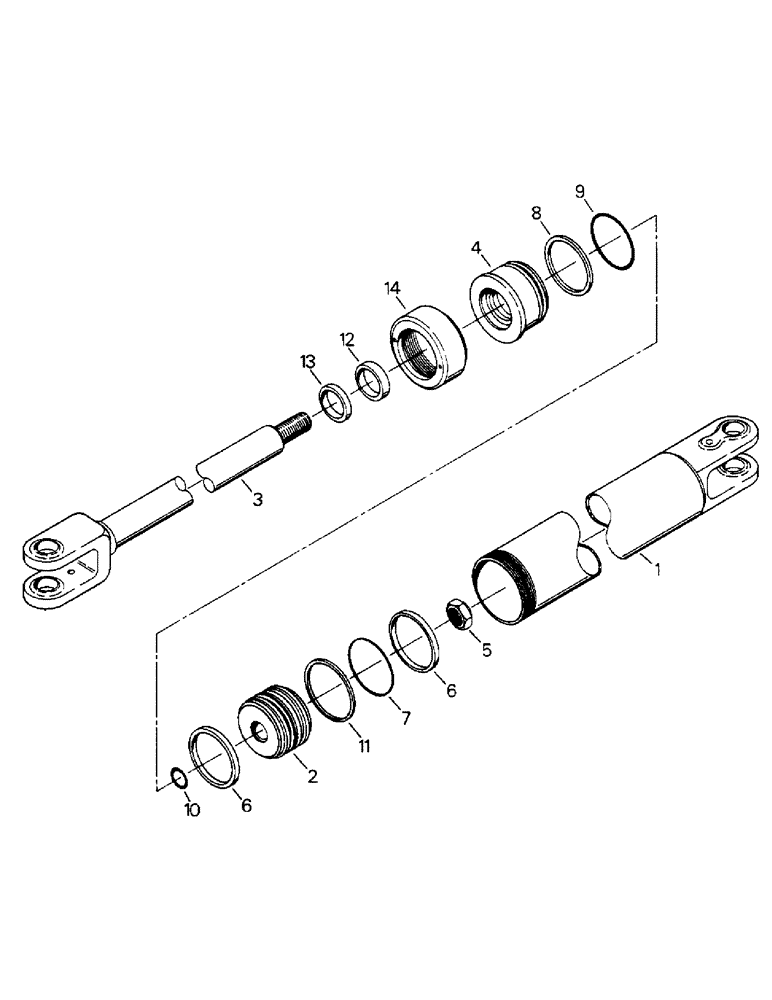

Запчасти Case IH STEIGER (08-14) - STEERING CYLINDER ASSEMBLY (07) - HYDRAULICS

50-2753T91

CYLINDER

ASSEMBLY - steering, Includes: Ref. 1 - 14

1шт.

35-1631T91

SEAL KIT

KIT - seal, Includes: Ref. 6, 7, 8, 9, 10, 11, 12 and 13

1шт.

1

50-2754T1

SLEEVE CYLINDER

TUBE - cylinder

1шт.

2

50-2758T1

PISTON

Cylinder

1шт.

3

50-2997T1

ROD

Piston

1шт.

4

50-2759T1

GUIDE

Piston rod

1шт.

5

19-5578

LOCK NUT

Lock, special

1шт.

6

50-2760T1

RING

Wear

2шт.

Part of Seal Kit, P/N 35-1631T91

1шт.

7

50-2761T1

SEALING RING,64.62mm ID x 70.46mm OD x 2.92mm Thk

Piston

1шт.

Part of Seal Kit, P/N 35-1631T91

1шт.

8

50-2762T1

WASHER,63.5mm ID x 69.85mm OD x 1.09mm Thk

Backup

1шт.

Part of Seal Kit, P/N 35-1631T91

1шт.

9

50-2763T1

O-RING,2.484" ID x 2.762" OD x 0.139"

Seal

1шт.

Part of Seal Kit, P/N 35-1631T91

1шт.

10

18-1164

O-RING,1" ID x 40544" OD x 1"

O-RING - seal

1шт.

Part of Seal Kit, P/N 35-1631T91

1шт.

11

50-2764T1

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

Seal

1шт.

Part of Seal Kit, P/N 35-1631T91

1шт.

12

1-7796

SEAL

Piston rod

1шт.

Part of Seal Kit, P/N 35-1631T91

1шт.

13

1-7768

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 35-1631T91

1шт.

14

50-2765T1

COLLAR

Locking

1шт.
