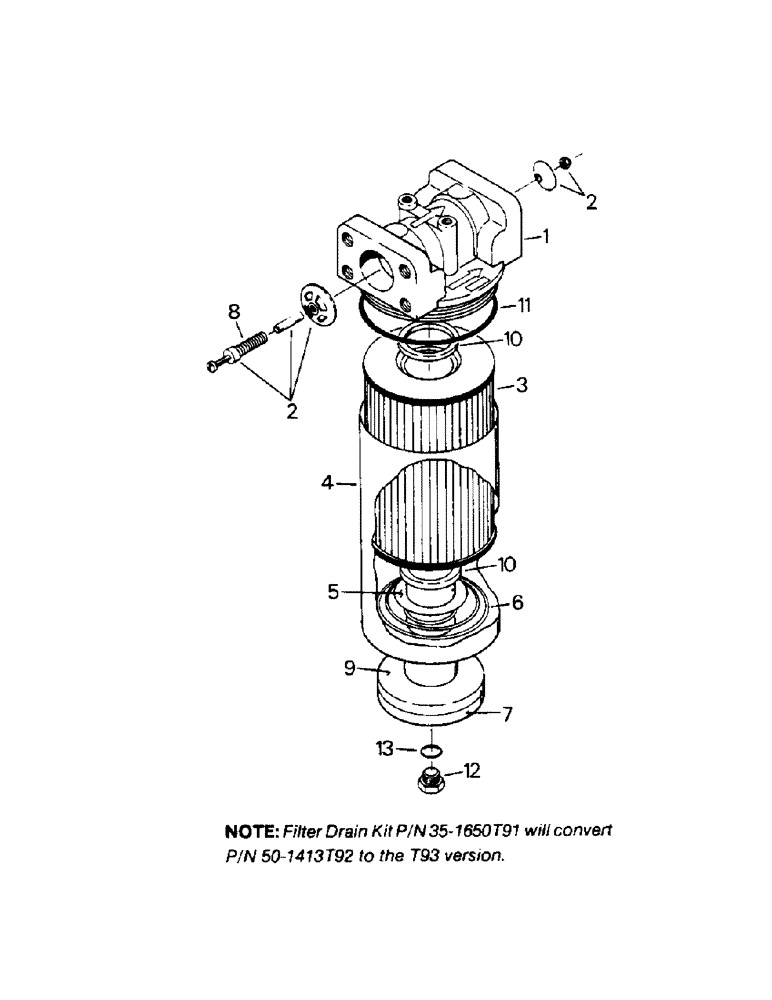

Запчасти Case IH STEIGER (08-13) - OIL FILTER ASSEMBLY (07) - HYDRAULICS

50-1413T92

FILTER

FILTER ASSEMBLY - oil, Includes: Ref. 1 - 11

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

Filter Drain Kit P/N 35-1650T91 will convert P/N 50-1413T92 to the T93 version.

1шт.

50-1413T93

FILTER

FILTER ASSEMBLY - oil, Includes: Ref. 1 - 13

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

Filter Drain Kit P/N 35-1650T91 will convert P/N 50-1413T92 to the T93 version.

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

50-1876T91

BY-PASS VALVE

KIT - by-pass (Includes Ref. 8)

1шт.

3

50-2689T91

FILTER, ELEMENT

ELEMENT, FILTER KIT - filter element (Includes Refs. 9-11)

1шт.

4

18-95

HOUSING

Filter element

1шт.

5

18-93

WASHER

Backup

1шт.

6

18-94

SPRING

Conical

1шт.

7

1-6200

POST

Center

1шт.

50-2918T1

POST

SPARE PART Center

1шт.

8

50-1877T1

SPRING

SPARE PART Compression

1шт.

9

18-96

GASKET

Center post

1шт.

10

18-92

SEAL

Filter element

2шт.

11

18-91

O-RING

SEAL - housing

1шт.

12

1-6353

PLUG

7/16-20 o-ring boss (Includes Ref. 13)

1шт.

13

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

plug 4-1, 90 Duro, .351" ID x .072" Thk

1шт.
