(08-09) - TANDEM PUMP ASSEMBLY

Запчасти Case IH STEIGER (08-09) - TANDEM PUMP ASSEMBLY (07) - HYDRAULICS

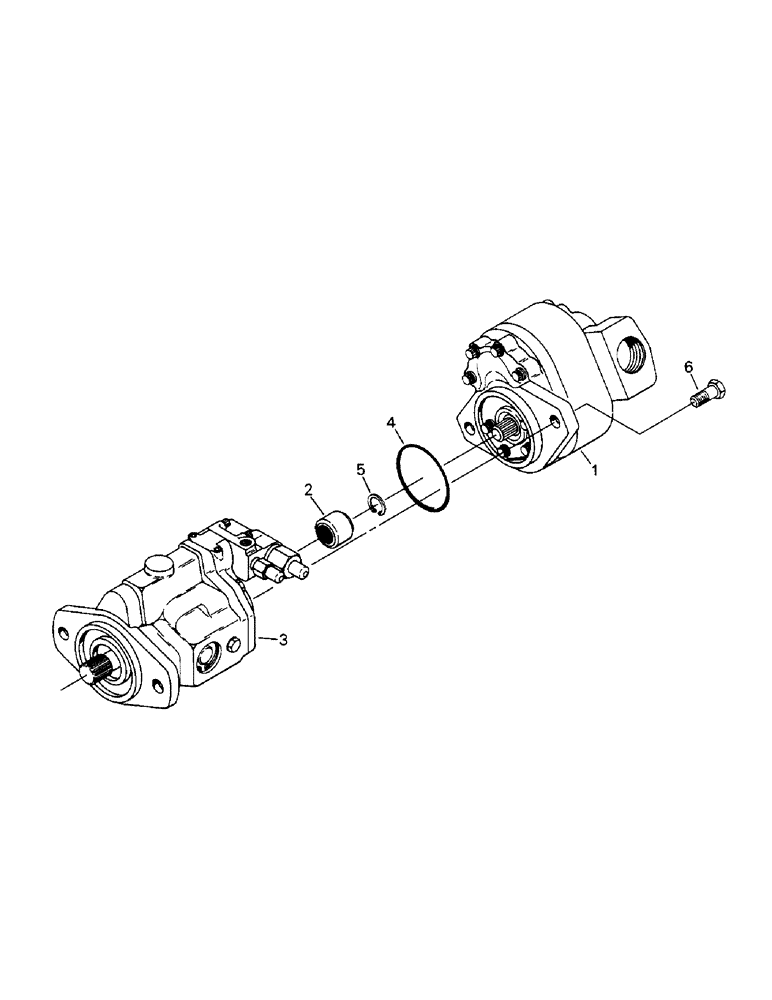

Схема запчастей Case IH STEIGER - (08-09) - TANDEM PUMP ASSEMBLY (07) - HYDRAULICS
1
4
3
6
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-2621T91

PUMP

ASSEMBLY - tandem, Includes: Ref. 1 - 6

1шт.

1

PUMP ASSEMBLY - gear (See Fig. 08-12)

1шт.

2

50-2663T1

COUPLING

Pump drive

1шт.

3

PUMP ASSEMBLY - piston (See Fig. 08-10)

1шт.

4

50-2665T1

O-RING

Pump seal

1шт.

5

50-2666T1

RING, SNAP

RING SNAP Lock, coupling

1шт.

6

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 UNC x 1-1/2 G-5

2шт.
