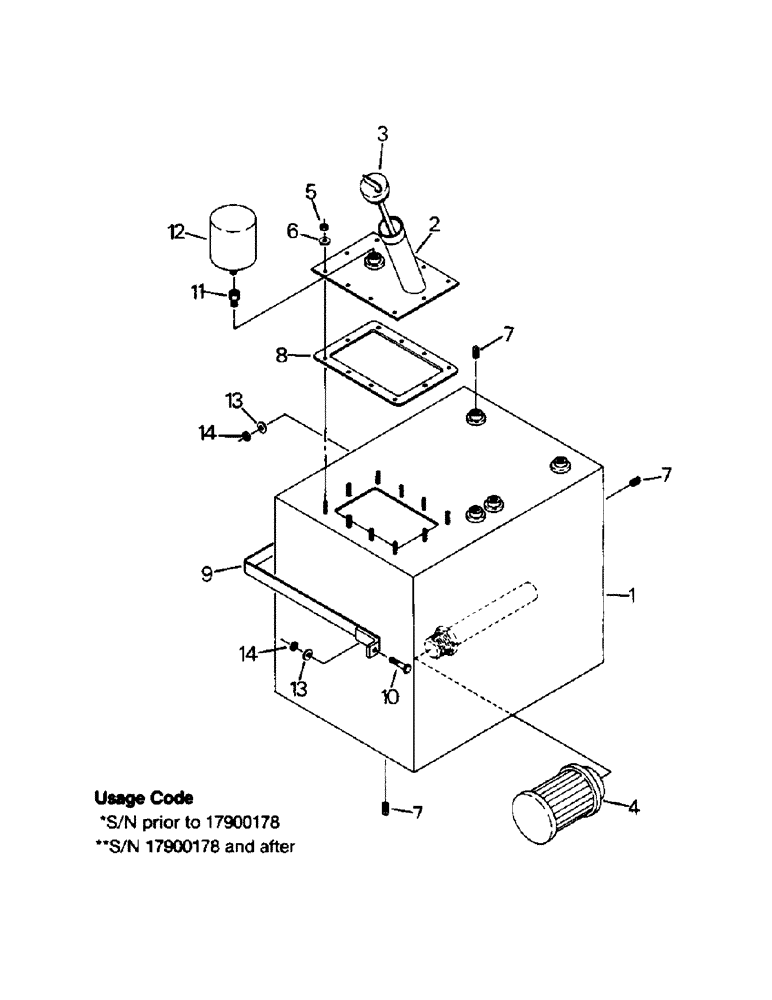

Запчасти Case IH STEIGER (08-08) - HYDRAULIC TANK AND MOUNTING (07) - HYDRAULICS

1

50-2766T1

RESERVOIR, HYDRAULIC

TANK - hydraulic

1шт.

2

50-2509T1

PLATE

SPARE PART COVER - tank fill

1шт.

3

50-2558T1

DIPSTICK

Oil check

1шт.

4

50-2029T1

FILTER SCREEN

Suction filter

1шт.

50-1509T1

FILTER

SCREEN - suction filter

1шт.

(Interchangeable with P/N 50-2029T1)

1шт.

5

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

10шт.

6

19-224

WASHER,3/8", SAE

Flat, 3/8

10шт.

7

31-35

PLUG

Pipe, 1/2 NPT

6шт.

(Quantity 3 with 3-pt hitch)

1шт.

8

50-2429T1

GASKET

Cover

1шт.

9

50-2881T1

BAND

SPARE PART Mounting

1шт.

10

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

1шт.

11

31-1872

ADAPTER,1/2"-14 Male NPTF x 1/2"-14 Female NPTF

1/2 NPT male x 1/2 NPT female

1шт.

(Use with early cover only)

1шт.

12

18-503

FILTER

FILTER - air pressure

1шт.

18-1633

BREATHER

ELEMENT - filter

1шт.

13

19-107

WASHER

Flat, 3/8

2шт.

14

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC G-A

2шт.
