Запчасти Case IH STEIGER (08-06) - CONTROL VALVE AND COUPLER MOUNTING (07) - HYDRAULICS

1

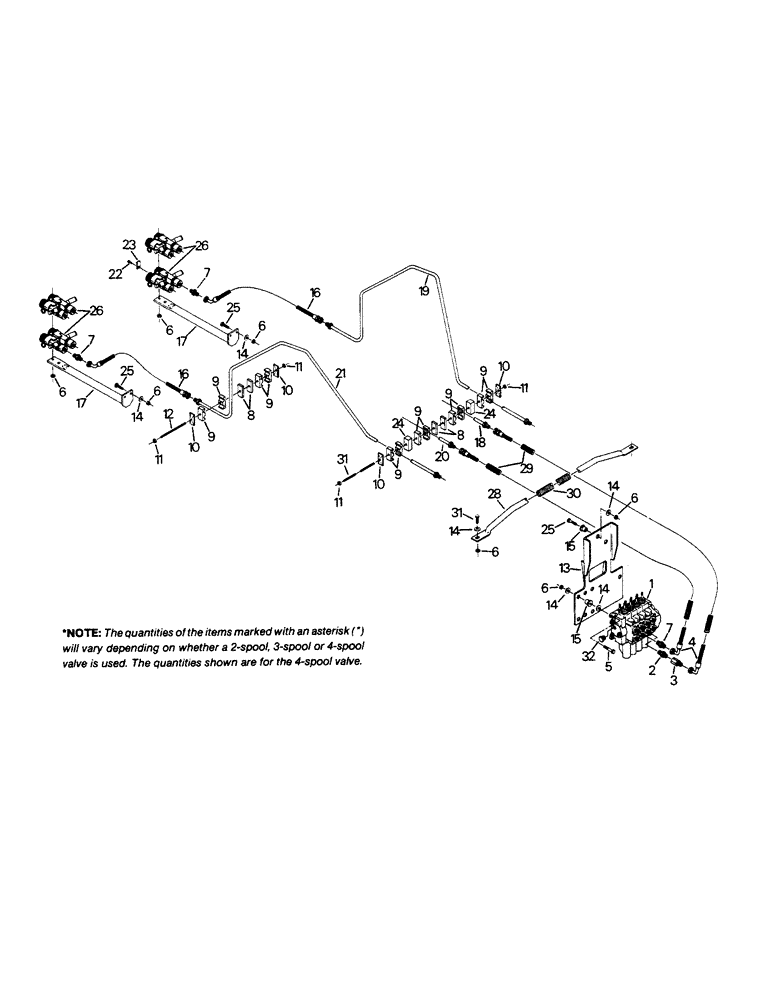

VALVE ASSEMBLY - control (See Fig. 08-16)

1шт.

2

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER (10), 7/8-14 o-ring boss x 7/8-14 JIC 37 degree male

4шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

3

31-1490

REDUCER

ADAPTER, 7/8-14 JIC 37 degree female x 3/4-16 JIC 37 degree male

4шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

4

31-2687

HOSE ASSY.

HOSE - control valve

8шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

5

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8 UNC x 2 G-5

3шт.

6

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

16шт.

7

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

ADAPTER (10), 7/8-14 o-ring boss x 3/4-16 JIC 37 degree male

12шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

8

70-4587T1

SPACER

Clamp

10шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

9

50-2531T1

CLAMP

Half

24шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

10

50-2532T1

PLATE

Clamp cover

10шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

11

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

10шт.

12

50-2714T1

STUD

Clamp mounting

4шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

13

60-4358T2

SUPPORT

BRACKET - valve mounting

1шт.

14

19-107

WASHER

Flat, 3/8

15шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

15

1-3528

MOUNTING PARTS

MOUNT - rubber isolator

6шт.

16

31-2688

HOSE ASSY.

HOSE - remote coupler

8шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

17

50-2880T1

SUPPORT

MOUNT - remote coupler

2шт.

18

50-2722T1

TUBE

Remote coupler

2шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

19

50-2723T1

TUBE

Remote coupler

2шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

20

50-2724T1

TUBE

Remote coupler

2шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

21

50-2725T1

TUBE

Remote coupler

2шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

22

19-434

BOLT,Hex, 1/4" - 20 x 0.375", Gr 5

CAPSCREW, 1/4 UNC x 3/8 G-5

4шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

23

50-2778T1

PLATE

MARKER - no. 1 tab

1шт.

50-2779T1

PLATE

MARKER - no. 2 tab

1шт.

50-2780T1

PLATE

MARKER - no. 3 tab

1шт.

50-2781T1

PARTITION

MARKER - no. 4 tab

1шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

24

50-2712T1

SPACER

Half clamp (Quantity 1 with 3 spool valve)

2шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

25

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 UNC x 1-3/4 G-5

7шт.

26

COUPLER ASSEMBLY - remote (See Fig. 08-16)

2шт.

27

50-2713T1

STUD

4-spool valve

1шт.

50-2720T1

STUD

SPARE PART 3-spool valve

1шт.

50-2721T1

STUD

SPARE PART 2 spool valve (Quantity 2 with 3 spool valve)

4шт.

28

50-2951T1

SUPPORT

Hose

1шт.

29

50-2952T1

GUARD

PROTECTOR - flexguard

8шт.

The quantities of this Ref. will vary depending on whether a 2-spool, 3-spool or 4-spool valve is used. The quantites shown are for the 4-spool valve.

1шт.

30

50-2741T1

CONDUIT

PROTECTOR - flexguard

1шт.

31

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

2шт.

32

01-2199

PLUG (6), 9/16-18 o-ring boss

1шт.
