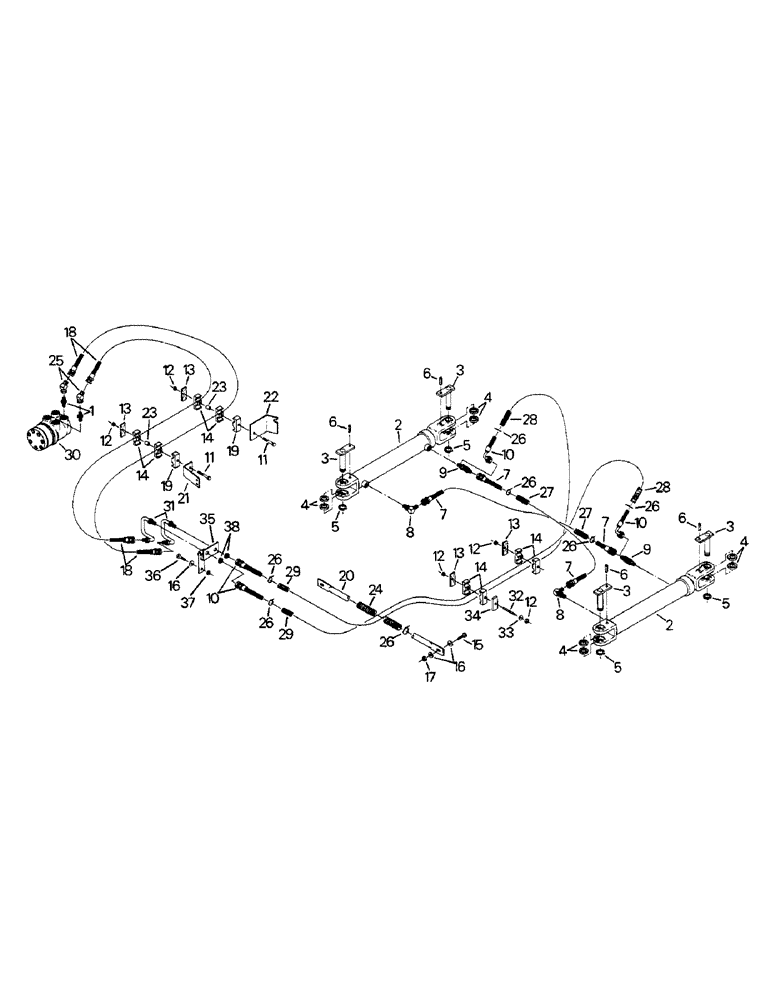

Запчасти Case IH STEIGER (08-05) - HYDRAULIC SYSTEM, STEERING CONTROLS (07) - HYDRAULICS

1

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER (8), 3/4-16 O-ring boss x 3/4-16 JIC 37 degree male

2шт.

2

CYLINDER ASSEMBLY - steering (See Fig. 08-14)

2шт.

3

50-1086T1

PIN

Steering cylinder

4шт.

4

2-3223T1

SPACER

Cylinder mounting

8шт.

5

19-5619

RING, SNAP

RING SNAP

4шт.

6

19-5785

LOCK PIN,1/2" x 7/8", Slotted

1/2" x 7/8", Slotted

4шт.

7

32-184

HOSE

Cylinder cross over

2шт.

8

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8), 3/4-16 o-ring boss x 3/4-16 JIC male

2шт.

9

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

(8), 3/4-16 o-ring boss x 3/4-16 JIC 37 degree male, x 3/4-16 JIC 37 degree male

2шт.

10

31-2559

HOSE ASSY.

To steering cylinders

2шт.

11

19-725

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

CAPSCREW, 5/16 UNC x 3-1/4 G-5

2шт.

12

19-802

NUT

5/16 UNC G-A

5шт.

13

50-2533T1

PLATE

Clamp cover

4шт.

14

50-2534T1

CLAMP

Half

8шт.

15

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

2шт.

16

19-107

WASHER

Flat, 3/8

6шт.

17

19-341

LOCK NUT,3/8" - 16, GB

3/8 UNC G-A

2шт.

18

2701003-26

HYDRAULIC HOSE

To steering valve

2шт.

19

50-2554T1

CLAMP

Half

2шт.

20

50-2898T1

TUBE

TUBE - hose support

1шт.

21

50-2954T1

BRACKET

Clamp support

1шт.

22

50-2982T1

BRACKET

Clamp support

1шт.

23

50-2955T1

SPACER

Clamp

2шт.

24

50-2962T1

CONDUIT

PROTECTOR - flexguard

1шт.

25

18-574

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

3/4-16 JIC 37 degree female x 3/4-16 JIC 37 degree male

2шт.

26

19-135

CABLE TIE

CABLE STRAP Nylon

14шт.

27

50-2991T1

GUARD

PROTECTOR - flexguard

2шт.

28

50-2696T1

HOSE

PROTECTOR - flexguard

2шт.

29

50-2741T1

CONDUIT

PROTECTOR - flexguard

2шт.

30

VALVE ASSEMBLY - steering control (See Fig. 08-07)

1шт.

31

Existing Parts

1шт.

32

50-2721T1

STUD

SPARE PART Clamp mounting

1шт.

33

19-106

WASHER,5/16", SAE

Flat, 5/16

1шт.

34

70-4587T1

SPACER

Clamp

1шт.

35

90-6694T1

BRACKET

Tube mounting

1шт.

36

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 UNC x 1-1/4 G-5

2шт.

37

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC G-B

2шт.

38

31-2520

NUT,Blkhd, 3/4"-16

Fitting

2шт.
