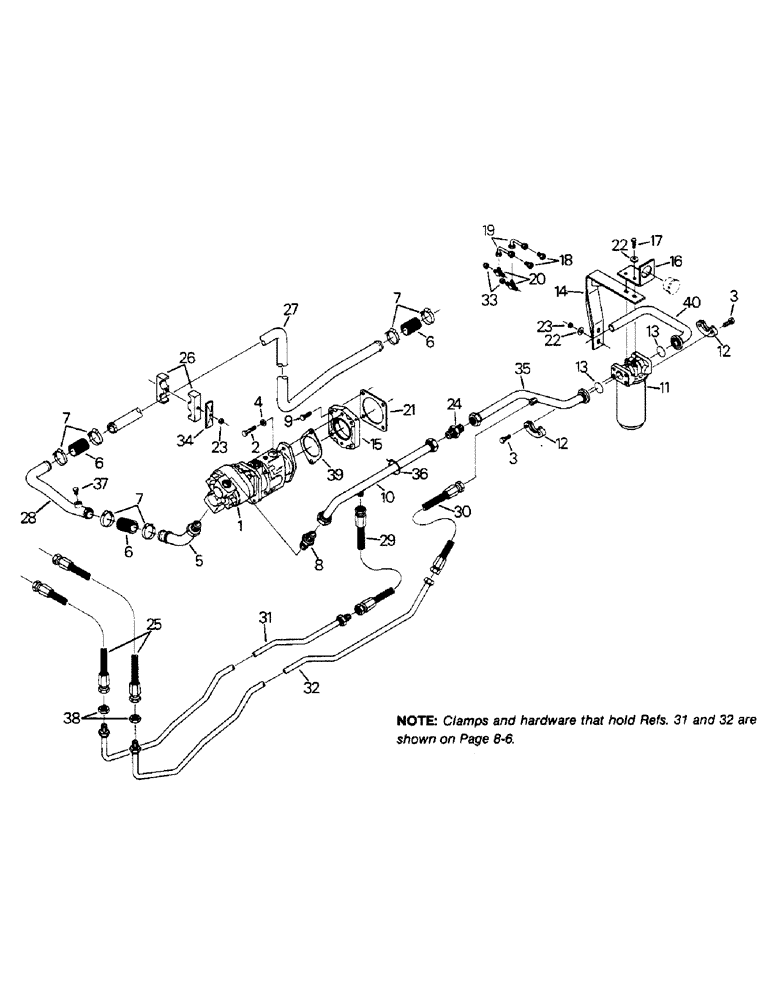

Запчасти Case IH STEIGER (08-02) - HYDRAULIC SYSTEM, OIL COOLER, HYDRAULIC PUMP AND FILTER (07) - HYDRAULICS

1

PUMP ASSEMBLY - tandem (See Fig. 08-09)

1шт.

2

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW, 1/2 UNC x 1-1/4 G-8

2шт.

3

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 UNC x 1-1/2 G-5

8шт.

4

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

Flat, hardened (Special)

2шт.

5

31-2529

TUBE

(20), 1-5/8-12 o-ring boss x 1-1/2 hose

1шт.

6

1-4571

HOSE

1-1/2 x 4 inch

3шт.

7

31-1283

MOUNTING CLIP

CLAMP, 1-1/4 x 2-5/8

6шт.

8

31-1981

HYD CONNECTOR,1 5/8"-12, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER (12), 1-1/16-12 o-ring boss x 1-5/8 JIC 37 degree male

1шт.

9

19-909

BOLT,Hex, 1/2" - 13 x 2", Gr 8

CAPSCREW, 1/2 UNC x 2 G-8

4шт.

10

50-2877T1

TUBE

From pump

1шт.

11

FILTER ASSEMBLY - oil (See Fig. 08-13)

1шт.

12

31-1911

FLANGE

Split, 1-1/2

4шт.

13

31-1328

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

Split flange

2шт.

14

50-2959T1

MOUNTING PARTS

MOUNT - filter

1шт.

15

90-6632T1

PLATE

Pump adapter

1шт.

16

50-2572T1

BRACKET - gauge mount

1шт.

17

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

2шт.

18

31-1593

ADAPTER

REDUCER, 1/8 NPT female x 7/16-20 JIC 37 degree male

2шт.

19

50-2571T1

TUBE

TUBE -, Serial Range: filter-gauge

2шт.

20

31-1749

TEE,7/16"-20, 37 Degree x 1/8"-27, NPTF Run

1/8 NPT male x 7/16-20 JIC 37 degree male x 7/16-20 JIC 37 degree male

2шт.

21

50-1388T1

GASKET

Pump adapter

1шт.

22

19-106

WASHER,5/16", SAE

Flat, 5/16

4шт.

23

19-802

NUT

5/16 UNC G-A

3шт.

24

50-2565T1

VALVE

Check

1шт.

25

31-2547

HOSE ASSY.

, Serial Range: Tube-cooler

2шт.

26

50-2965T1

HOSE CLAMP

Half

2шт.

27

90-6666T1

HYD TUBE,1.5" OD x 27.29" L

To hydraulic tank

1шт.

28

90-6667T1

TUBE,1.5" OD x 13.06", 4.84" L

To pump

1шт.

29

31-2697

HOSE ASSY.

Pump to cooler tube

1шт.

30

31-2696

HOSE ASSY.

Cooler return

1шт.

31

90-6594T1

TUBE,.75" OD

To oil cooler

1шт.

32

90-6595T1

TUBE,.75" OD

Cooler return

1шт.

33

9403369

CAP,37 Degree, 7/16"-20

NUT - cap, 7/16-20 JIC 37 degree

2шт.

34

50-2668T1

PLATE

Clamp cover

1шт.

35

50-2928T1

TUBE

To oil filter

1шт.

36

50-2037T1

STRAP

Nylon

1шт.

37

1-6353

PLUG

With o-ring (4), 7/16-20 o-ring boss

1шт.

38

31-2375

BHD LOCK NUT,Blkhd, 1 1/16"-12

Fitting

2шт.

39

18-1176

GASKET

Pump

1шт.

40

50-2970T1

TUBE ASSY.

SPARE PART To hydraulic pump

1шт.
