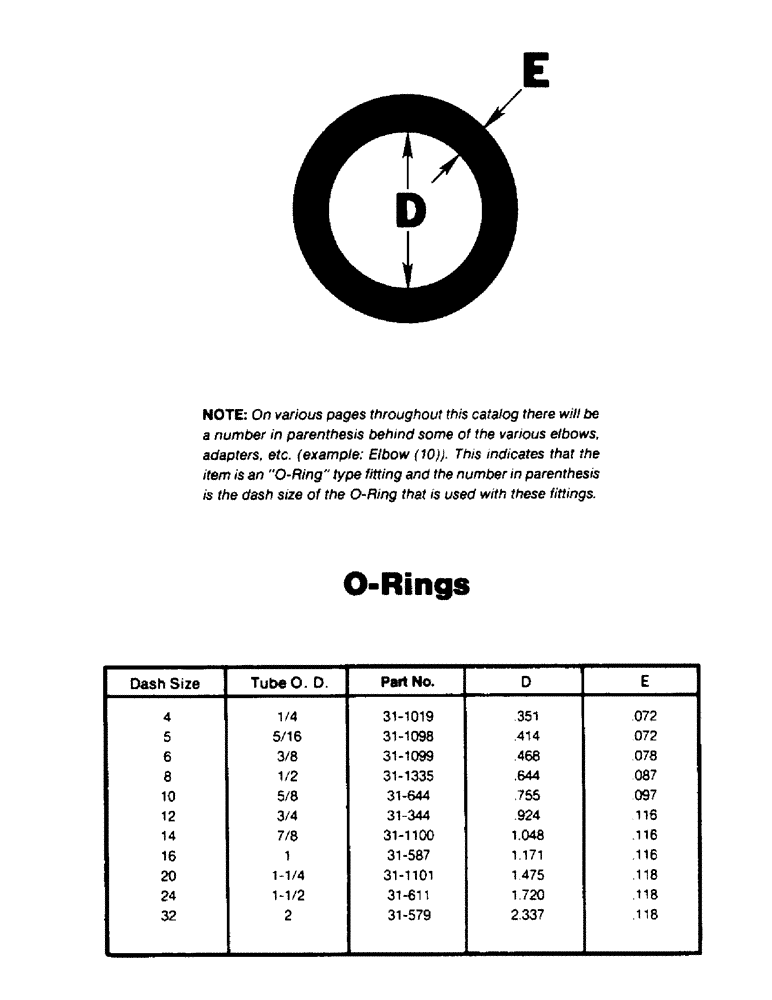

Запчасти Case IH STEIGER (08-01) - O-RINGS (07) - HYDRAULICS

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

Dash size 4, Tube OD 1/4, D=.351, E=.072

1шт.

31-1098

O-RING,5-1, 90 Duro, .414" ID x .072" Thk

Dash size 5, Tube OD 5/16, D=.414, E=.072

1шт.

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Dash size 6, Tube OD 3/8, D=.468, E=.078

1шт.

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

Dash size 8, Tube OD 1/2, D=.644, E=.087

1шт.

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

Dash size 10, Tube OD 5/8, D=.755, E=.097

1шт.

31-344

O-RING,12-1, 90 Duro, .924 ID x .116" Thk

Dash size 12, Tube OD 3/4, D=.924, E=.116

1шт.

31-1100

O-RING,14-1, 90 Duro, 1.048" ID x .116"" Thk

Dash size 14, Tube OD 7/8, D=1.048, E=.116

1шт.

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

Dash size 16, Tube OD 1, D=1.171, E=.116

1шт.

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

Dash size 20, Tube OD 1-1/4, D=1.475, E= .118

1шт.

31-611

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

Dash size 24, Tube OD 1-1/2, D=1.720, E=.118

1шт.

31-579

O-RING,0.118" Thk x 2.337" ID, -932, Cl 6, 90 Duro

Dash size 32, Tube OD 2, D=2.337, E=.118

1шт.
