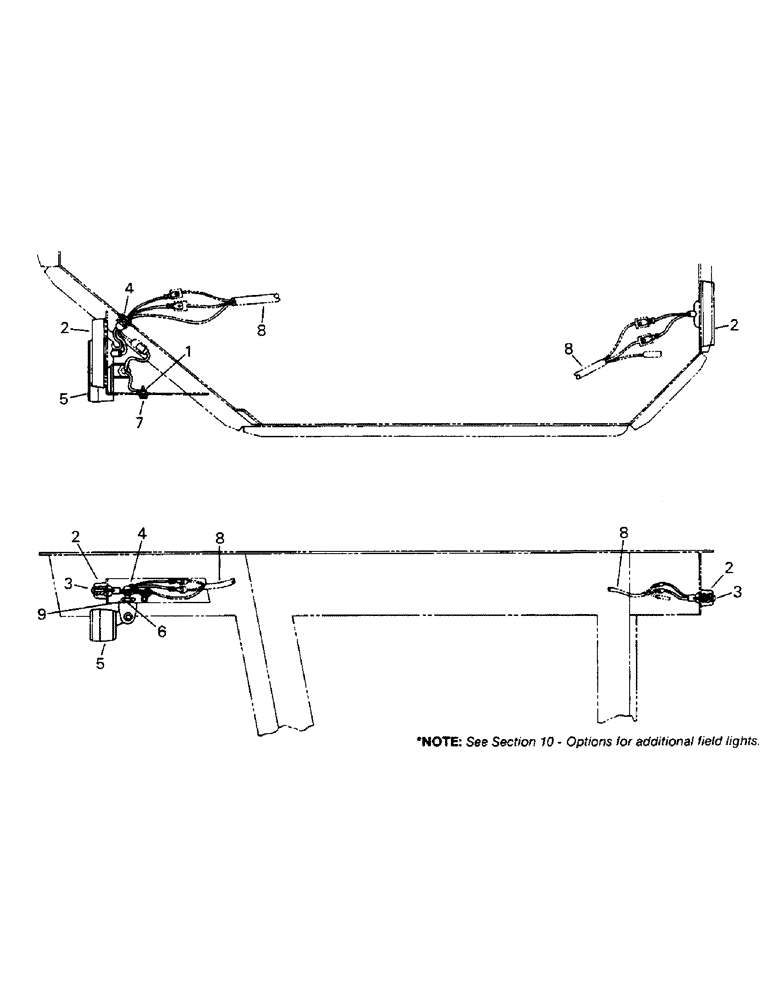

Запчасти Case IH STEIGER (02-19) - CAB LIGHTS (06) - ELECTRICAL

1

9419337

NUT

Keps, no. 10 UNC

2шт.

2

LIGHT ASSEMBLY - warning (See Fig. 02-21)

4шт.

3

19-1104

SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd

Shouldered (Special), warning light mounting

8шт.

4

60-2924T1

CONNECTING ROD

CONNECTOR - wire restraint

2шт.

5

LIGHT ASSEMBLY - field (See Fig. 02-21)

2шт.

See Section 10 - Options for additional field lights.

1шт.

6

19-653

LOCK NUT

Lock, 1/2 UNC G-A

2шт.

7

9421943

SCREW,Hex Washer, #10 - 24 x 1/2"

MACHINE, No. 10 UNC x 1/2 (Early models only)

2шт.

8

20-1970T1

HARNESS

SPARE PART Overhead

1шт.

9

22-367

SPRING WASHER

Curved spring, 1/2

2шт.
