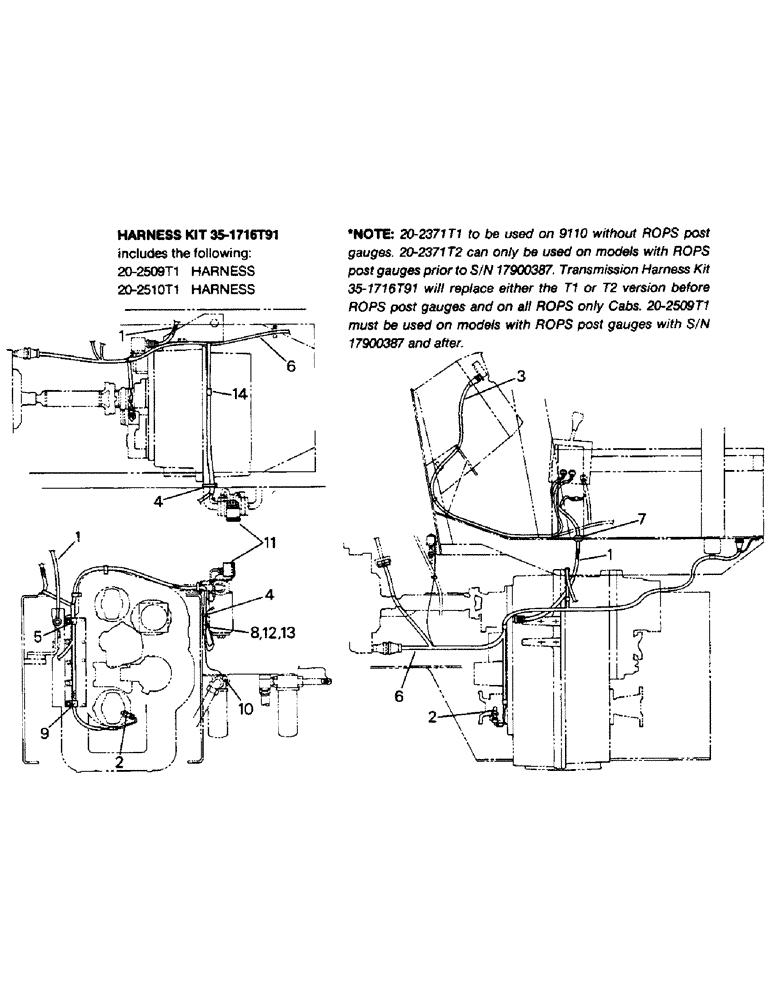

Запчасти Case IH STEIGER (02-17) - TRANSMISSION WIRING (06) - ELECTRICAL

1

20-2290T1

HARNESS

Electric shift

1шт.

2

20-2129T1

SENSOR

Magnetic, speedometer

1шт.

3

20-2292T1

HARNESS

Sash display

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Nylon

1шт.

5

31-2488

CLAMP

Harness

1шт.

6

20-2371T2

HARNESS

Transmission and engine intermediate (20-2371T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

20-2371T1 to be used on Puma and 9110 without ROPS post gauges. 20-2371T2 can only be used on models with ROPS post gauges.

1шт.

7

1-1051

GROMMET

Shift harness

1шт.

8

22-1109

CLAMP

Harness

1шт.

9

31-1862

CLAMP

Harness

1шт.

10

47-4181

IGNITION SWITCH

Transmission oil temperature

1шт.

11

20-1388T1

GAUGE

Hydraulic oil filter restriction

1шт.

12

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

1шт.

13

19-105

WASHER,1/4", SAE

Flat, 1/4

1шт.

14

22-628

CABLE CLIP

Harness

2шт.
