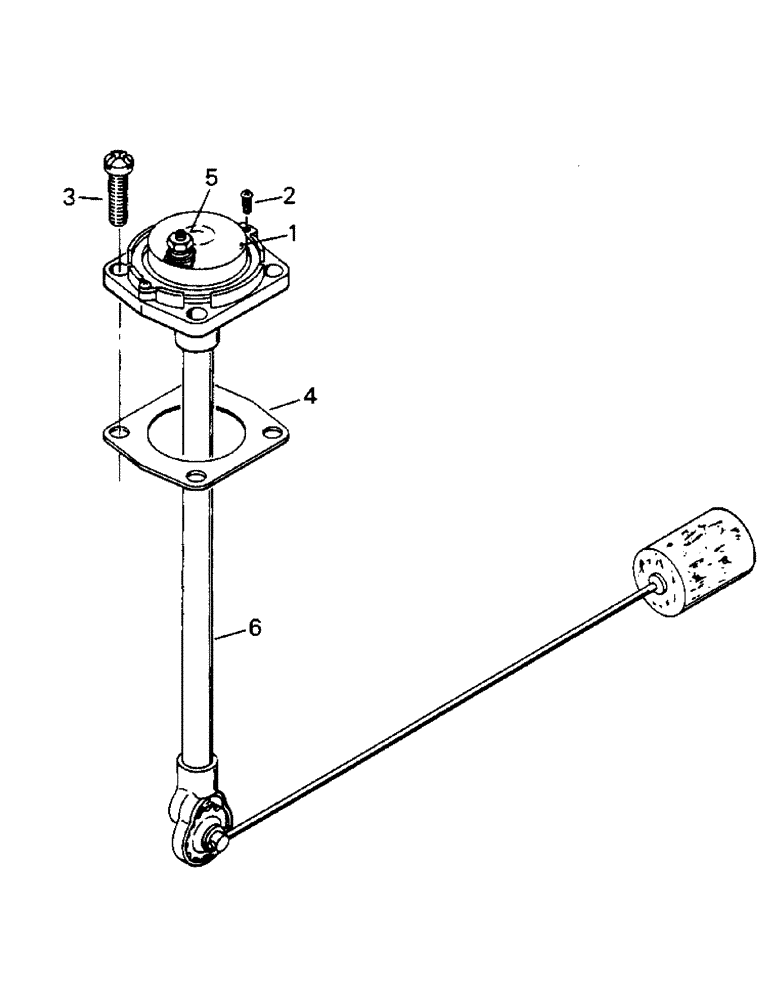

Запчасти Case IH STEIGER (02-16) - FUEL GAUGE SENDING UNIT (06) - ELECTRICAL

20-2361T91

SENDER UNIT

- sending fuel gauge, Includes: Ref. 1 - 6

1шт.

1

20-1379T1

DIAL

Sending unit

1шт.

2

159229

SCREW,Cross Pan Hd, #6 - 32 x 1/4"

MACHINE SCREW, No. 6 UNC x 1/4

2шт.

3

19-5814

BOLT (MACHINE),Pan, 5/16" x 5/8"

MACHINE SCREW, 5/16 UNC x 5/8

4шт.

4

20-1380T1

GASKET

Sending, Serial Range: unit-tank

1шт.

5

19-308

NUT,#10 - 32

No. 10 UNF G-A

2шт.

6

NSS

NOT SOLD SEPARAT

SENDER ASSEMBLY

1шт.
