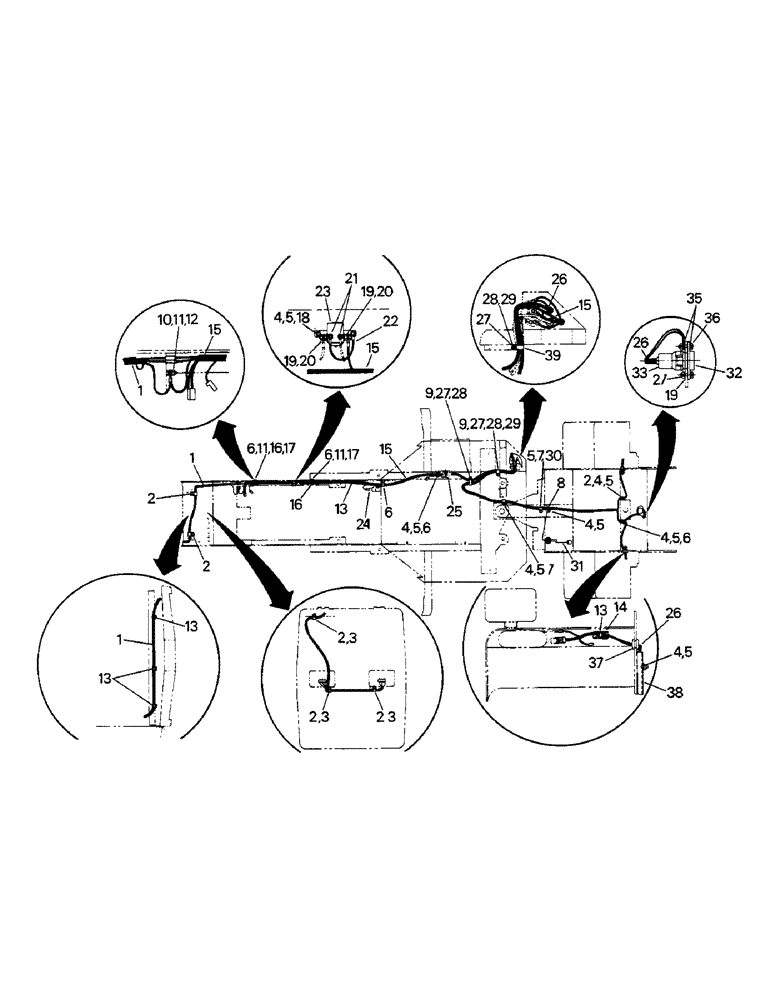

Запчасти Case IH STEIGER (02-15) - EXTERIOR WIRING (06) - ELECTRICAL

1

20-2224T1

HARNESS

Headlight

1шт.

2

22-1109

CLAMP

Harness

6шт.

3

19-958

SELF-TAP SCREW

TAPPING SCREW, 1/4 UNC x 3/4

3шт.

4

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

11шт.

5

19-105

WASHER,1/4", SAE

Fat, 1/4

12шт.

6

31-2488

CLAMP

Harness

5шт.

7

31-1776

MOUNTING CLIP

CLAMP - harness

2шт.

8

31-1443

CLAMP

Harness

1шт.

9

31-1349

MOUNTING CLIP

CLAMP - harness

1шт.

10

19-243

LOCK WASHER,Ext Tooth, 3/8"

Lock, 3/8

1шт.

11

19-224

WASHER,3/8", SAE

Flat, 3/8

3шт.

12

19-087

NUT - lock, 3/8 UNC G-B

1шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Nylon

1шт.

14

22-823

MOUNT

MOUNT - adhesive backed

2шт.

15

20-2225T2

HARNESS

Front frame (20-2225T1)

1шт.

Use T1 version on Pumas and 9110. T2 version must be used on Wildcats and 9130. T2 version can be used on Pumas and 9110 after the stock of T1 is depleted.

1шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

17

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

2шт.

18

19-115

LOCK WASHER,1/4"

1/4"

2шт.

19

19-116

LOCK WASHER,5/16"

5/16"

4шт.

20

19-88

NUT,5/16"-24, G5

5/16 UNF G-B

2шт.

21

19-1015

SERRATED NUT

Keps, No. 8 UNC G-A

2шт.

22

20-1198T1

ELECTRICAL WIRE

WIRE Ground starter switch

1шт.

23

20-1608T1

SOLENOID

SWITCH - magnetic starter

1шт.

24

22-729

SWITCH

Brake light

1шт.

25

20-1989T1

SWITCH

Hydraulic oil temperature

1шт.

26

20-2220T1

HARNESS

Rear frame

1шт.

27

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

4шт.

28

19-700

WASHER,5/16"

Flat, 5/16

2шт.

29

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW, 5/16 UNC x 1-1/4 G-5

1шт.

30

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

1шт.

31

UNIT - sending, fuel gauge (See Fig. 02-16)

1шт.

32

22-789

SOCKET

CONNECTOR - remote outlet

1шт.

33

22-790

COVER

BOOT - connector wiring

1шт.

34

19-106

WASHER,5/16", SAE

Flat, 5/16

2шт.

35

19-605

LOCK WASHER,Ext Tooth, 5/16"

Lock, 5/16

1шт.

36

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

2шт.

37

31-2242

GROMMET

Rear lights

2шт.

38

70-4600T1

GUARD

Wire

2шт.

39

31-1427

MOUNTING CLIP

CLAMP - harness

1шт.
