(03-08) - CLIMATE CONTROL MODULE ELECTRICAL

Запчасти Case IH STEIGER (03-08) - CLIMATE CONTROL MODULE ELECTRICAL (03) - Climate Control

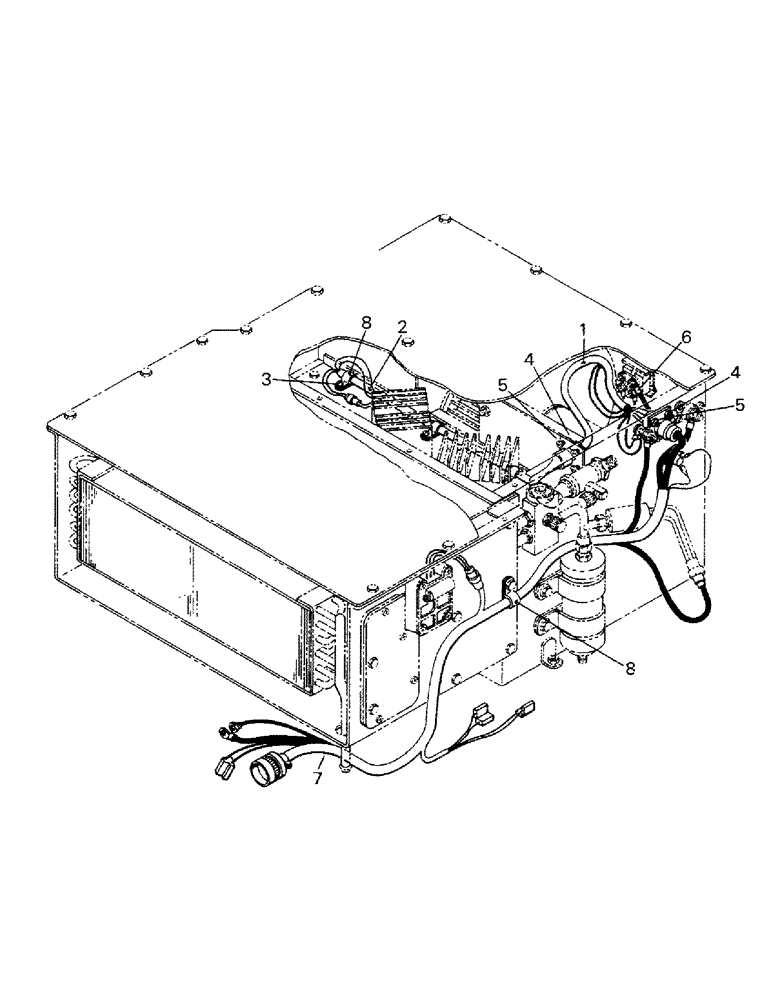

Схема запчастей Case IH STEIGER - (03-08) - CLIMATE CONTROL MODULE ELECTRICAL (03) - Climate Control
6
8
1
4
2
7
8
5
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-1397T4

HARNESS

WIRE HARNESS (20-1397T3 - code C)

1шт.

2

20-1602T1

HARNESS

WIRE HARNESS

1шт.

3

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

TAPPING SCREW

3шт.

4

19-5754

NUT,#4-40, GB

LOCK NUT

8шт.

5

363-3046

SCREW,Hex Wash Hd, #4-40 x 3/8"

MACHINE SCREW

8шт.

6

20-1947T1

ELECTRICAL WIRE

WIRE (20-1399T1 - code C)

2шт.

7

20-1573T2

HARNESS

WIRE HARNESS (see fig. note) (20-1573T1 - code C)

1шт.

8

22-635

MOUNTING CLIP

CLIP

4шт.
