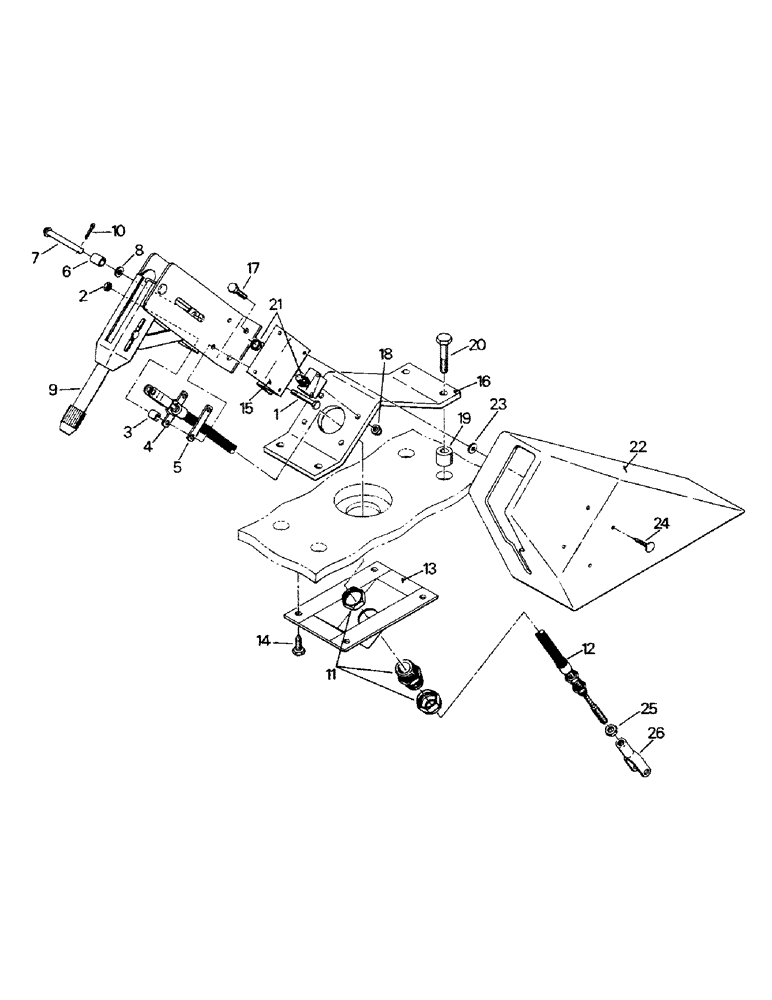

Запчасти Case IH STEIGER (01-45) - PARK BRAKE CONTROL (10) - CAB

60-2150T91

LEVER

PARK BRAKE LEVER, consists of Ref. 1 - 10

1шт.

1

19-8

BOLT,5/16" - 18 x 1 1/2", Gr 5

CAPSCREW

2шт.

2

19-77

NUT,5/16"-18, G5

2шт.

3

19-6062

SPACER

2шт.

4

1-8464

FIXING BRACKET

CLAMP

1шт.

5

1-8451

FIXING BRACKET

CLAMP BASE

1шт.

6

19-6061

SPACER

1шт.

7

19-5664

CLEVIS PIN,5/16" x 2"

1шт.

8

19-6042

WASHER

1шт.

9

NSS

NOT SOLD SEPARAT

LEVER

1шт.

10

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

60-1224T1

CONNECTOR

1шт.

12

60-2221T5

CABLE

PARK BRAKE CABLE (60-2221T4 - code E)

1шт.

13

60-2780T1

BRACKET

1шт.

14

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW

4шт.

15

60-2698T1

BRACKET

1шт.

16

60-2775T1

BRACKET

1шт.

17

9417950

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

CAPSCREW

4шт.

18

19-5777

LOCK NUT

LOCK NUT

4шт.

19

60-2287T1

SPACER

4шт.

20

19-5884

CAPSCREW,Lock, 5/16" - 18 x 1 1/2", Gr 5

4шт.

21

20-1463T1

SWITCH

MICRO SWITCH

1шт.

22

NAP

COVER (black)

1шт.

The black cover is no longer used or available. The black clips are still available; however, the later covers are tan which requires the use of the tan clips. (E) - Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

60-2776T2

COVER (tan)

1шт.

23

19-5668

WASHER

4шт.

24

19-5954

CLIP

(black)

4шт.

19-5835

CLIP

(tan)

4шт.

25

9420821

NUT

1шт.

26

19-139

YOKE

CLEVIS

1шт.
