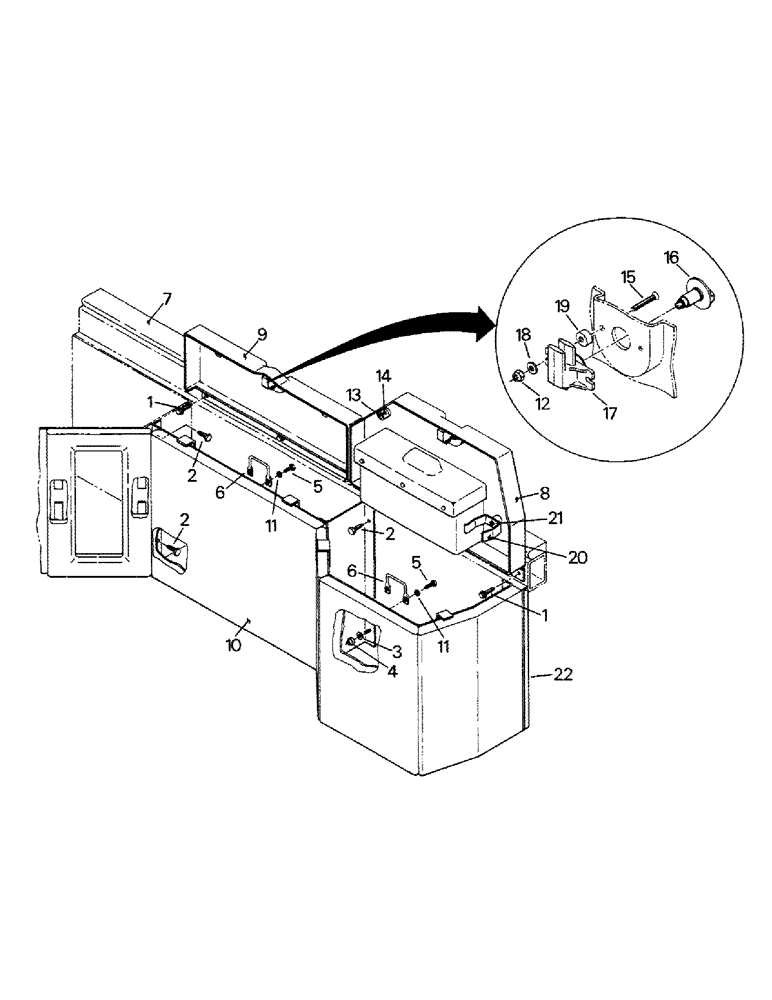

Запчасти Case IH STEIGER (01-42) - REAR STORAGE COMPARTMENT (10) - CAB

1

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW

6шт.

2

9419030

CAPSCREW,5/16" - 18 x 5/8", Gr 5

4шт.

3

19-106

WASHER,5/16", SAE

2шт.

4

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

5

9421068

SCREW,Hex Washer , 10" - 24 x 3/8"

MACHINE SCREW

4шт.

6

60-2293T1

PLATE

STRIKER

2шт.

7

60-2319T3

FOAM

Replaces 60-2319T2

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

8

60-2296T93

COVER

ASSY., Includes refs. 12 - 21

1шт.

9

60-2318T93

COVER ASSY

., Includes refs. 12 - 19

1шт.

10

60-2283T4

SPARE PART

WRAPAROUND

1шт.

11

19-603

LOCK WASHER,Ext Tooth, #10

4шт.

12

19-5563

LOCK NUT

LOCK NUT

2шт.

13

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

Qty 4 on cover P/N 60-2296T93 Cross Pan Hd, #10-24 x 1/2"

2шт.

14

31-1979

RUBBER

RECESS, qty 4 on cover P/N 60-2296T93

2шт.

15

155957

SCREW,Cross Flat Hd, #10 - 24 x 1"

MACHINE SCREW

2шт.

16

60-2268T2

CYLINDER

LOCK CYLINDER & KNOB

1шт.

17

60-2650T1

BOLT

CASE & BOLT LOCK

1шт.

18

19-281

WASHER,#8

2шт.

19

60-3034T1

SPACER

2шт.

20

19-5886

CLIP, this ref plus ref. 21 are not used on later models

1шт.

21

159585

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

MACHINE SCREW, this ref plus ref. 20 are not used on later models

1шт.

22

60-3375T1

FOAM

ACOUSTIC FOAM

1шт.
