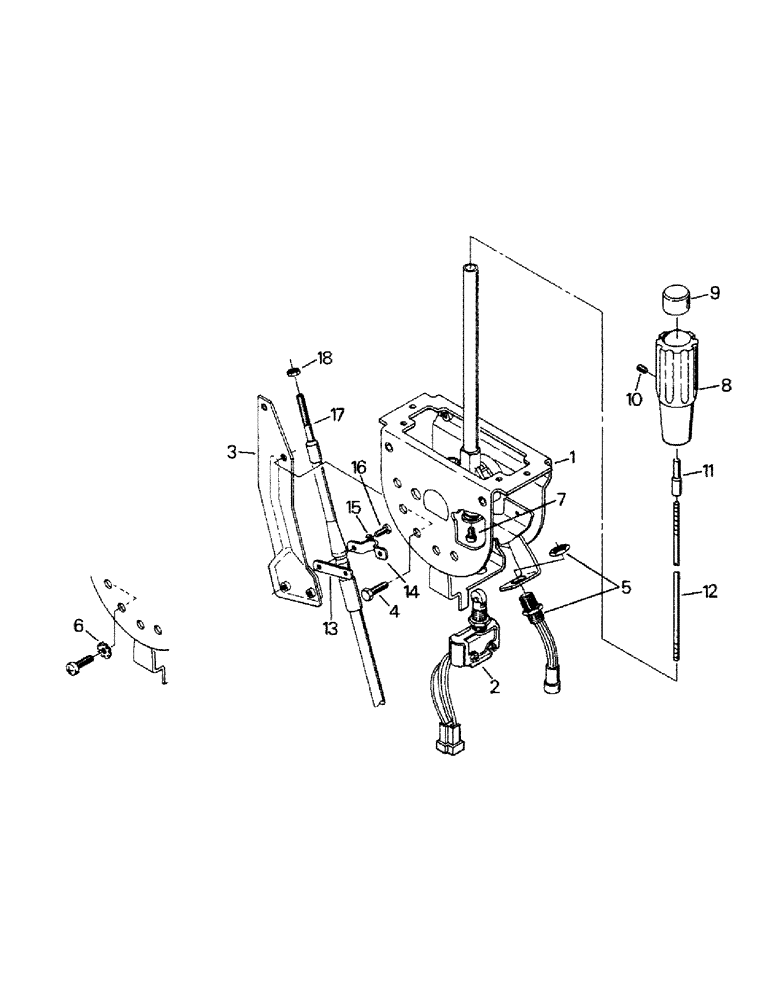

Запчасти Case IH STEIGER (01-39) - PTO CONTROL ASSEMBLY (10) - CAB

60-1986T94

CONTROL

PTO CONTROL ASSY, consists of 1-7

1шт.

1

60-1375T94

CONTROL

PTO CONTROL

1шт.

2

20-1288T92

SWITCH

ROLLER SWITCH

1шт.

3

60-2363T1

HANGER

BRACKET

1шт.

4

19-6083

CAPSCREW (160508 - code E)

2шт.

Some early models may have a slightly different bracket (ref. 3) mounting arrangement (see inset). If this arrangement is on your model, it should be converted to the later style by changing the capscrews (ref. 4) and deleting the lock washers (ref. 6).

1шт.

5

20-1517T1

SWITCH

1шт.

6

19-467

LOCK WASHER,Ext Tooth, 1/4"

(see note)

2шт.

Some early models may have a slightly different bracket (ref. 3) mounting arrangement (see inset). If this arrangement is on your model, it should be converted to the later style by changing the capscrews (ref. 4) and deleting the lock washers (ref. 6).

1шт.

7

20-1316T1

ACTUATOR

MAGNETIC ACTUATOR

1шт.

The bulletin that Ref. 7 is linked to does not apply to the SECC transmission controllers.

1шт.

60-2355T92

KNOB

ASSY, consists of 8-11

1шт.

8

60-1934T2

KNOB

1шт.

9

60-1489T2

BUTTON

PUSH BUTTON

1шт.

10

19-5798

SET SCREW

1шт.

11

60-1918T1

CAP

END CAP

1шт.

12

60-1985T2

PUSH ROD

1шт.

13

60-1936T1

SHIM

1шт.

14

60-1935T1

CLAMP

1шт.

15

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

16

153424

SCREW,Cross Fil Hd, #10 - 32 x 0.50", Gr 2

MACHINE SCREW

2шт.

17

60-2054T2

CABLE

PTO CONTROL CABLE

1шт.

18

19-936

JAM NUT

JAM NUT

1шт.
