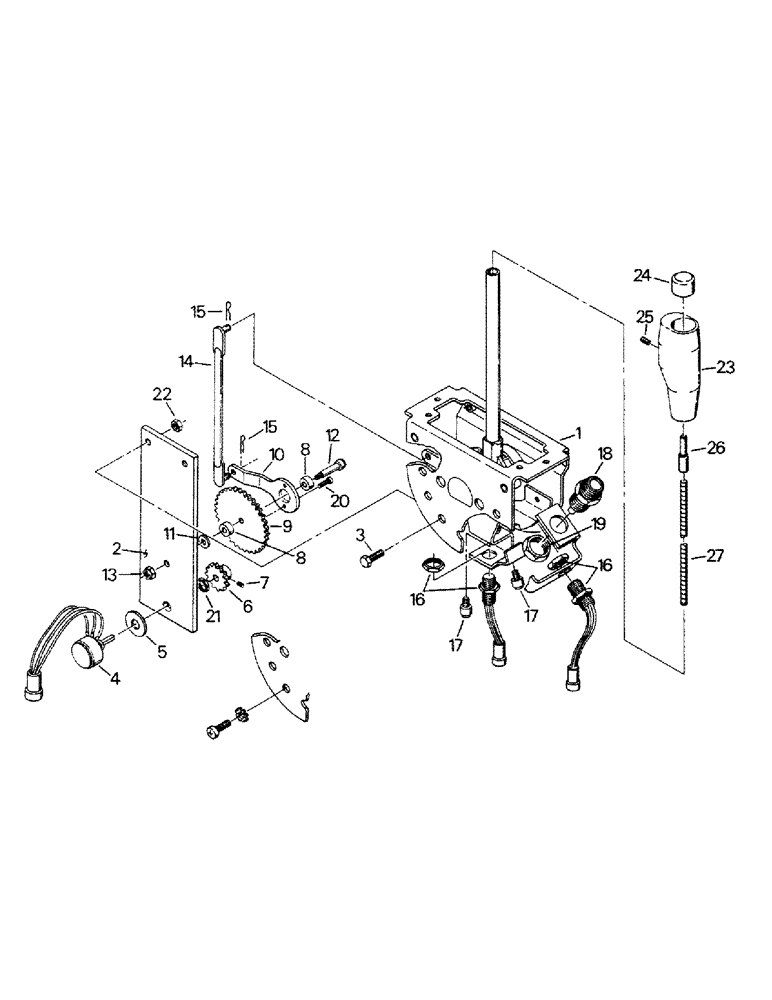

Запчасти Case IH STEIGER (01-37) - 3-POINT HITCH CONTROL ASSEMBLY (10) - CAB

60-1409T94

UNIT

3-PT HITCH CONTROL ASSY, consists of 1-22

1шт.

1

60-1377T93

CONTROL

3-PT HITCH CONTROL

1шт.

2

60-1394T2

PLATE

1шт.

3

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

CAPSCREW

2шт.

Some early models may have a slightly different plate (ref 2) mounting arrangement (see inset). If this arrangement is on your model, it should be converted to the later style by changing the capscrews (ref. 3) and adding the jam nuts (ref. 22).

1шт.

4

20-1455T1

POTENTIOMETER

1шт.

5

19-224

WASHER,3/8", SAE

1шт.

6

60-1397T1

GEAR

1шт.

7

NLS

NO LONGER SERVICED

SET SCREW

1шт.

8

19-5688

WASHER

2шт.

9

60-1396T1

GEAR

1шт.

10

60-1389T1

PLATE

INDEX PLATE

1шт.

11

60-2012T1

SHIM

1шт.

12

19-5686

SCREW

SHOULDERED SCREW

1шт.

13

19-5563

LOCK NUT

LOCK NUT

1шт.

14

60-2697T1

LINK

1шт.

15

19-5380

PIN

HAIR PIN

2шт.

16

20-1517T1

SWITCH

2шт.

17

20-1316T1

ACTUATOR

MAGNETIC ACTUATOR

2шт.

18

60-2013T1

PLUNGER

SPRING PLUNGER

1шт.

19

19-5810

NUT

JAM NUT

2шт.

20

159585

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

MACHINE SCREW

2шт.

21

19-5778

NUT,3/8"-32, G2

1шт.

22

19-6082

JAM NUT

JAM NUT

2шт.

Some early models may have a slightly different plate (ref 2) mounting arrangement (see inset). If this arrangement is on your model, it should be converted to the later style by changing the capscrews (ref. 3) and adding the jam nuts (ref. 22).

1шт.

60-2349T92

KNOB

ASSY, consists of 23-26

1шт.

23

60-1488T2

KNOB

1шт.

24

60-1489T2

BUTTON

PUSH BUTTON

1шт.

25

19-6070

SET SCREW,Hex Socket, #8-32 x 3/4"

1шт.

26

60-1918T1

CAP

END CAP

1шт.

27

60-1985T2

PUSH ROD

1шт.
