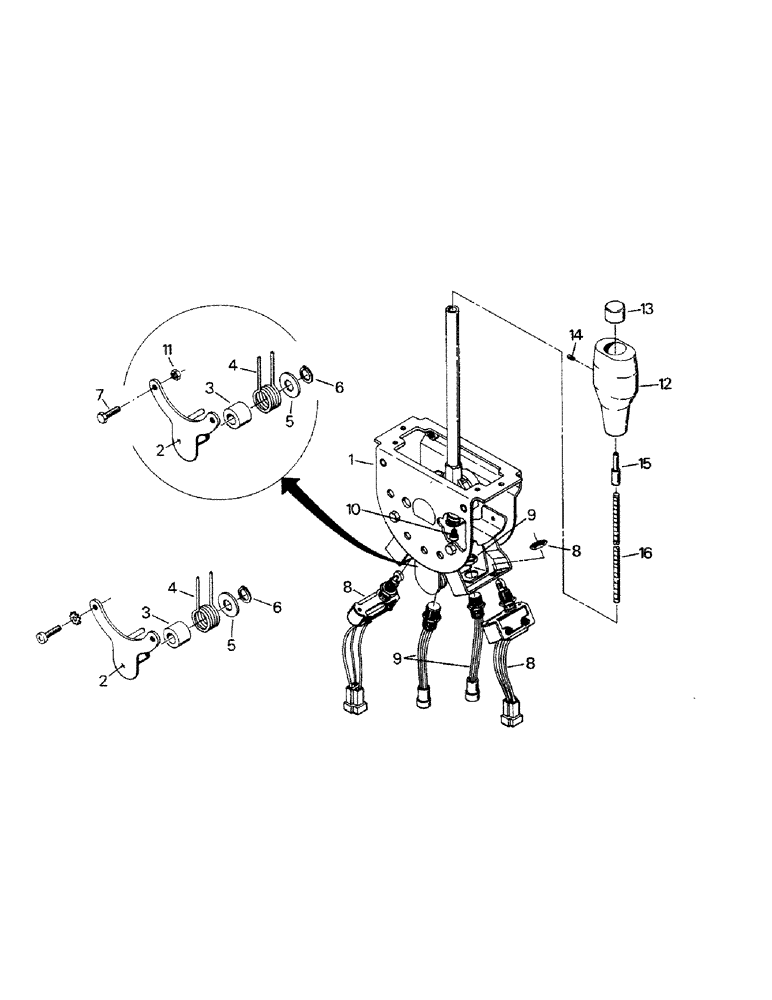

Запчасти Case IH STEIGER (01-35) - PULSER CONTROL ASSEMBLY (10) - CAB

60-1900T94

CONTROL

PULSER CONTROL ASSY, consists of ref 1-11

1шт.

1

60-1372T93

CONTROL

PULSER CONTROL

1шт.

60-1892T95

KIT

CENTERING DEVICE ASSY (60-1892T93 & 60-1892T94 - code E), consists of 2-6

1шт.

2

60-3395T1

BRACKET

(60-1895T2 & 60-1895T3 - code E)

1шт.

3

60-1893T3

BUSHING

(60-1893T20 - code E)

1шт.

4

60-1891T2

SPRING

1шт.

5

19-5507

SHIM

WASHER

1шт.

6

19-5765

RING

SNAP RING

1шт.

7

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

CAPSCREW

2шт.

8

20-1288T92

SWITCH

ROLLER SWITCH

2шт.

9

20-1517T1

SWITCH

2шт.

10

20-1316T1

ACTUATOR

MAGNETIC ACTUATOR

1шт.

The bulletin that Ref. 10 is linked to does not apply to the SECC transmission controllers.

1шт.

11

19-6082

JAM NUT

JAM NUT

2шт.

Some early models may have a slightly different bracket (ref. 2) mounting arrangement (see inset). If this arrangement is on your model, it should be converted to the later style by changing the capscrews (ref. 7) and adding the jam nuts (ref. 11).

1шт.

60-2353T2

KNOB ASSY, consists of 12-16

1шт.

12

60-1901T2

KNOB

1шт.

13

60-1489T2

BUTTON

PUSH BUTTON

1шт.

14

19-6070

SET SCREW,Hex Socket, #8-32 x 3/4"

1шт.

15

60-1918T1

CAP

END CAP

1шт.

16

60-1919T2

PUSH ROD

1шт.
