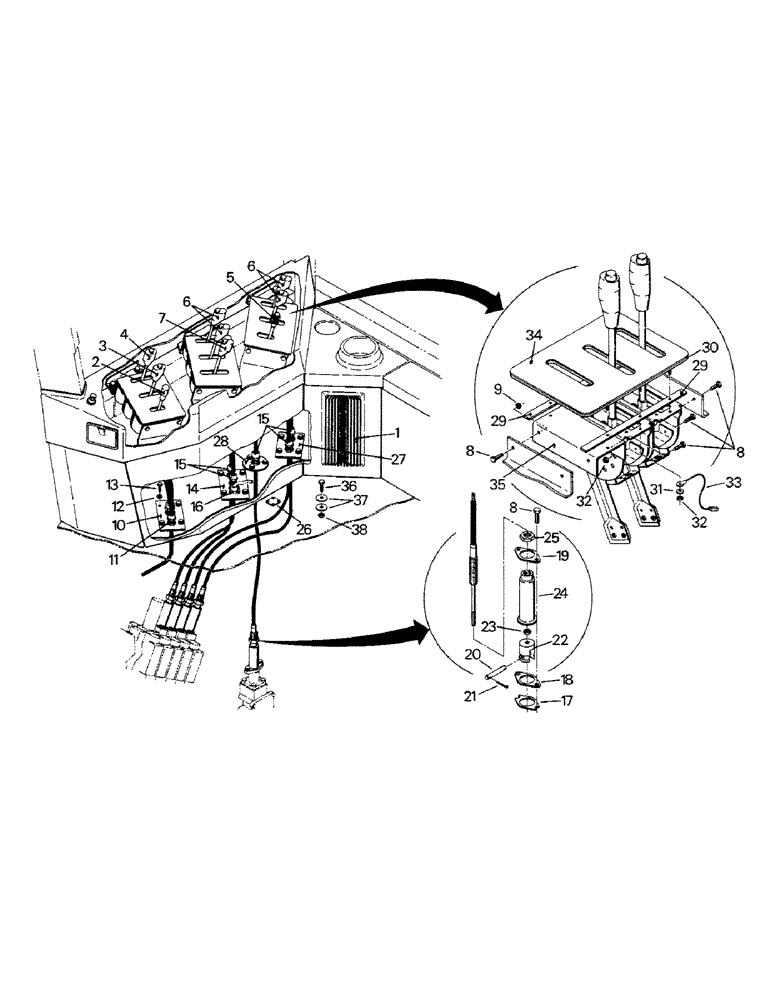

Запчасти Case IH STEIGER (01-32) - CONTROL CONSOLE (10) - CAB

1

ELECTRONIC CONTROL CENTER ASSY (see figure 2-15)

1шт.

2

THROTTLE CONTROL ASSY (see figure 1-34)

1шт.

3

PULSER CONTROL ASSY (see figure 1-35)

1шт.

4

TRANS MODE CONTROL ASSY (see figure 1-36)

1шт.

5

PTO CONTROL ASSY (see figure 1-39)

1шт.

6

HYDRAULIC CONTROL ASSY (see figure 1-38)

4шт.

7

3-PT CONTROL ASSY (see figure 1-37)

1шт.

8

19-5852

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

26шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

9

19-1081

LOCK NUT

LOCK NUT

10шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

10

60-2574T2

PLATE

(w/o decelarator)

1шт.

60-3775T1

LARGE PLATE

PLATE (with decelerator)

1шт.

60-3150T1

FOAM

ACOUSTIC FOAM (under ref. 10)

1шт.

11

60-3049T1

CONNECTOR, ELEC

CONNECTOR

1шт.

12

19-115

LOCK WASHER,1/4"

used only on early models, they are not needed and will not be used on later models 1/4"

15шт.

13

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW

15шт.

14

60-2626T1

PLATE

1шт.

60-3151T1

FOAM

ACOUSTIC FOAM (under ref. 14)

1шт.

15

60-1245T1

CONNECTOR, ELEC

CONNECTOR

5шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

16

19-6057

SELF-TAP SCREW,Hex Wash Hd, #4 x 1/2"

TAPPING SCREW

4шт.

17

60-2056T1

GASKET

-retainer

5шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

18

60-3008T1

SHIM

5шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

19

2-4693T1

RETAINER

5шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

20

2-4693T1

RETAINER

PIN

5шт.

21

19-6043

COTTER PIN,1/32" x 3/4"

Pin, Split (Cotter) 1/32" x 3/4"

10шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

22

2-4694T1

FORK

YOKE

5шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

23

19-936

JAM NUT

JAM NUT

5шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

24

2-4692T1

ROPE GUIDE

ENCLOSURE

5шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

25

19-885

JAM NUT

JAM NUT

5шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

26

60-2623T1

PLATE

(w/o 3-pt hitch)

1шт.

27

60-2622T1

PLATE

1шт.

60-3152T1

FOAM

ACOUSTIC FOAM (under ref. 27)

1шт.

28

60-2624T1

PLATE

(w/o PTO)

1шт.

60-2625T1

PLATE (with PTO)

1шт.

60-3153T1

FOAM

ACOUSTIC FOAM (under ref. 28)

1шт.

29

60-2759T1

SPACER

6шт.

30

60-2397T1

COVER

PLATE

3шт.

31

19-281

WASHER,#8

18шт.

32

19-5564

LOCK NUT,#6-32, GB

18шт.

33

20-1585T1

HARNESS

CONSOLE GROUND WIRE

3шт.

34

60-1463T1

DECAL

CONTROL PANEL (throttle, pulser & trans mode)

1шт.

60-1464T1

DECAL

CONTROL PANEL (3-pt hitch & hydraulics)

1шт.

60-1465T1

DECAL

CONTROL PANEL (PTO & hydraulics)

1шт.

35

60-2628T2

CHANNEL

2шт.

The quantity varies depending on which options are used. The quantity shown indicates the maximum used with all options

1шт.

36

19-675

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

CAPSCREW, used only with 3 spool control valve

1шт.

37

19-711

WASHER,5/8", SAE

used only with 3 spool control valve

2шт.

38

19-5960

LOCK NUT

LOCK NUT, used only with 3 spool control valve

1шт.
