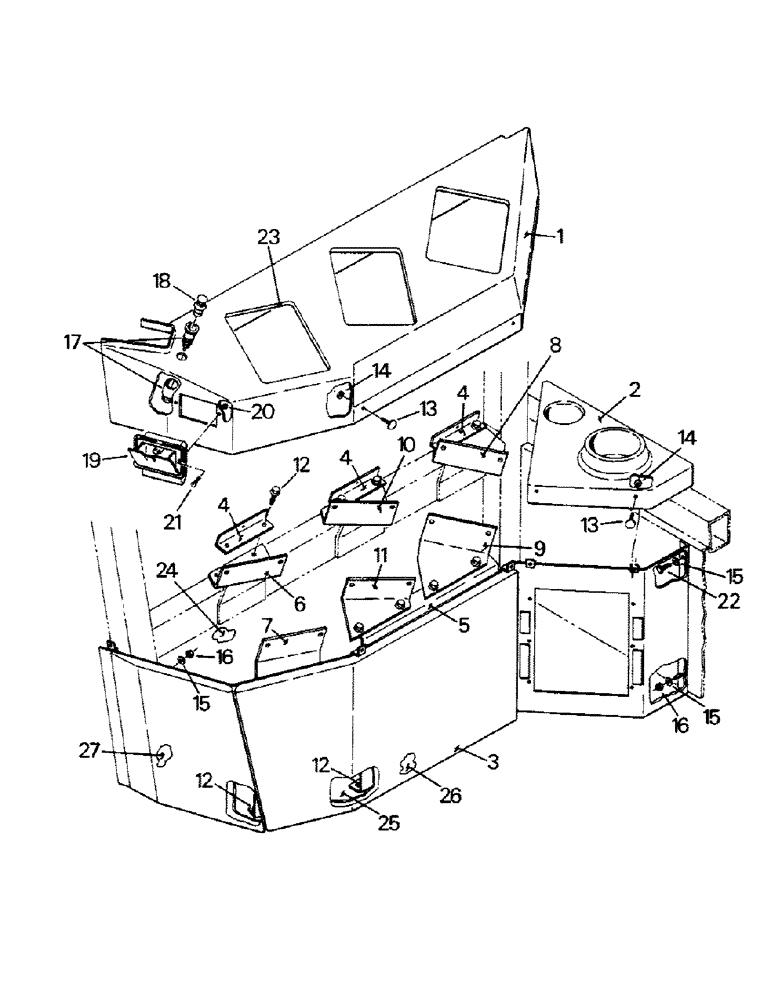

Запчасти Case IH STEIGER (01-31) - CONTROL CONSOLE MOUNTING (10) - CAB

1

60-2167T2

COVER

CONTROL CONSOLE COVER

1шт.

2

60-2177T1

COVER

1шт.

3

60-2466T2

CURTAIN

WRAPAROUND

1шт.

4

60-2169T1

ANGLE

3шт.

5

60-2163T1

SUPPORT

1шт.

6

60-1441T1

ANGLE

1шт.

7

60-1442T3

PLATE

1шт.

8

60-1198T1

ANGLE

1шт.

9

60-1199T2

ANGLE

1шт.

10

60-1200T1

ANGLE

1шт.

11

60-1201T1

ANGLE

1шт.

12

19-5850

SCREW,Hex Flg, 5/16" - 18 x 1", Gr 5

CAPSCREW

14шт.

13

19-5835

CLIP

7шт.

14

19-5668

WASHER

8шт.

15

19-106

WASHER,5/16", SAE

6шт.

16

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

5шт.

17

22-728

COUNTER

LIGHTER RECEPTCLE

1шт.

18

22-727

KNOB

LIGHTER PLUG

1шт.

19

2-6138T91

ASH TRAY

1шт.

20

19-5621

LOCK NUT,#8-32, GB

2шт.

21

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

MACHINE SCREW

2шт.

22

9419030

CAPSCREW,5/16" - 18 x 5/8", Gr 5

1шт.

23

60-3154T1

FOAM

ACOUSTIC FOAM

1шт.

24

60-3148T3

FOAM

ACOUSTIC FOAM

1шт.

25

60-3147T1

FOAM

ACOUSTIC FOAM

1шт.

26

30-3157T1

ACOUSTIC FOAM

1шт.

27

60-3156T2

FOAM

ACOUSTIC FOAM

1шт.
