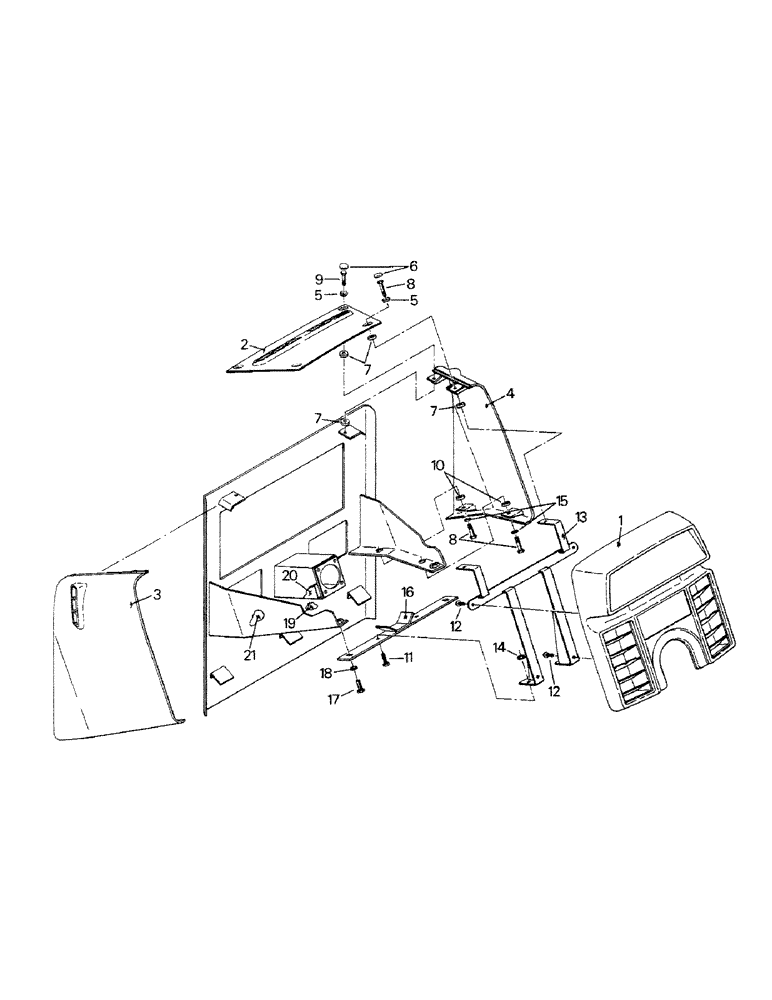

Запчасти Case IH STEIGER (01-29) - DASH MOUNTING (10) - CAB

1

DASH ASSY (see figure 1-30)

1шт.

2

60-1544T1

COVER

DASH TOP COVER

1шт.

3

60-1545T1

COVER

DASH SIDE COVER (left)

1шт.

4

60-1546T1

COVER

DASH SIDE COVER (right)

1шт.

5

1-8674

CAP WASHER

CAP WASHER

4шт.

6

19-5735

CAP

4шт.

7

19-5668

WASHER

8шт.

8

363-11020

SCREW,Hex Hd, #10-24 x 1 1/4"

MACHINE SCREW

6шт.

9

19-5929

SCREW,Hex, #10 - 24 x 7/8"

MACHINE SCREW

2шт.

10

19-5997

SPACER

4шт.

11

19-5850

SCREW,Hex Flg, 5/16" - 18 x 1", Gr 5

CAPSCREW

2шт.

12

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

FLANGED CAPSCREW

4шт.

13

60-2918T2

SUPPORT

DASH SUPPORT

1шт.

14

19-5559

LOCK NUT,Flg, 5/16"-18

FLANGED LOCK NUT

2шт.

15

9421089

WASHER

4шт.

16

60-2838T1

SUPPORT

1шт.

17

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW

2шт.

18

19-119

LOCK WASHER,1/2"

1/2"

2шт.

19

60-3159T3

FOAM

ACOUSTIC FOAM

1шт.

20

60-3376T1

FOAM

ACOUSTIC FOAM

1шт.

21

60-3377T1

FOAM

ACOUSTIC FOAM (right)

1шт.

60-3378T1

FOAM

ACOUSTIC FOAM (left)

1шт.
