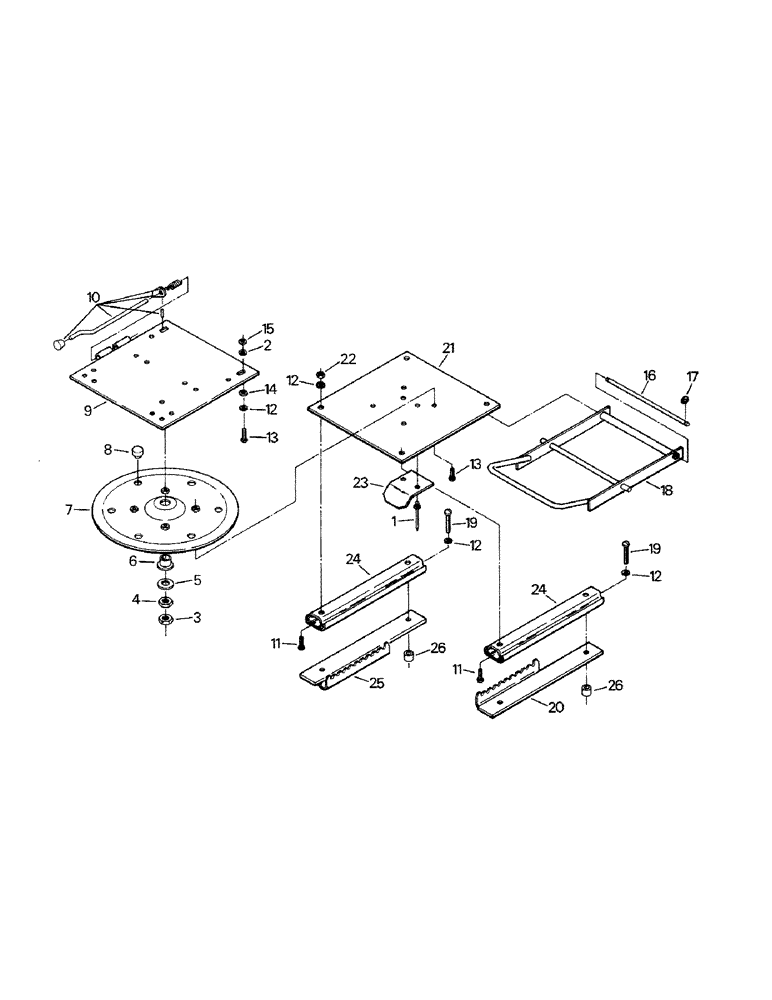

Запчасти Case IH STEIGER (01-25) - SEAT ASSEMBLY, SWIVEL AND SLIDE (10) - CAB

1

NSS

NOT SOLD SEPARAT

POP RIVET

2шт.

2

60-1667T1

WASHER

2шт.

60-3255T91

LINK

SWIVEL PLATE ASSY, consists of 3-10

1шт.

3

60-1622T1

LOCK NUT

LOCK NUT

1шт.

4

60-1623T1

NUT

1шт.

5

60-1624T1

THRUST BEARING

THRUST BEARING

1шт.

6

60-1621T1

BUSHING

1шт.

7

60-1625T1

LINK

SWIVEL PLATE

1шт.

8

60-1619T1

BUSHING

6шт.

9

60-3246T91

PLATE ASSY.

PLATE ASSY (incl ref. 6)

1шт.

10

60-3247T1

LEVER ASSY.

LEVER ASSY

1шт.

11

40-1164

BOLT,Sl Cheese Hd, M8 x 1.25 x 16mm

MACHINE SCREW

6шт.

12

40-1154

LOCK WASHER

LOCK WASHER

12шт.

13

40-1116

CAPSCREW,M8 x 1.25 x 16mm, Gr 8.8

6шт.

14

40-1007

WASHER

2шт.

15

60-1679T1

WASHER

2шт.

16

60-3248T1

ROD

1шт.

17

40-1182

CIRCLIP,M6

SNAP RING

2шт.

18

60-3249T1

HANDLED SHAFT

HANDLE ASSY

1шт.

19

40-1181

BOLT,Sl, M8 x 1.25 x 30mm

MACHINE SCREW

4шт.

20

60-3253T1

PLATE

LOCKING PLATE (left)

1шт.

21

60-3250T1

PLATE ASSY.

PLATE

1шт.

22

40-1121

NUT

4шт.

23

60-3368T1

SPRING

PLATE

1шт.

24

60-1577T1

RAIL ASSY.

SEAT SLIDE RAIL

2шт.

25

60-3251T1

PLATE

LOCKING PLATE (right)

1шт.

26

60-3252T1

BUSHING

4шт.
