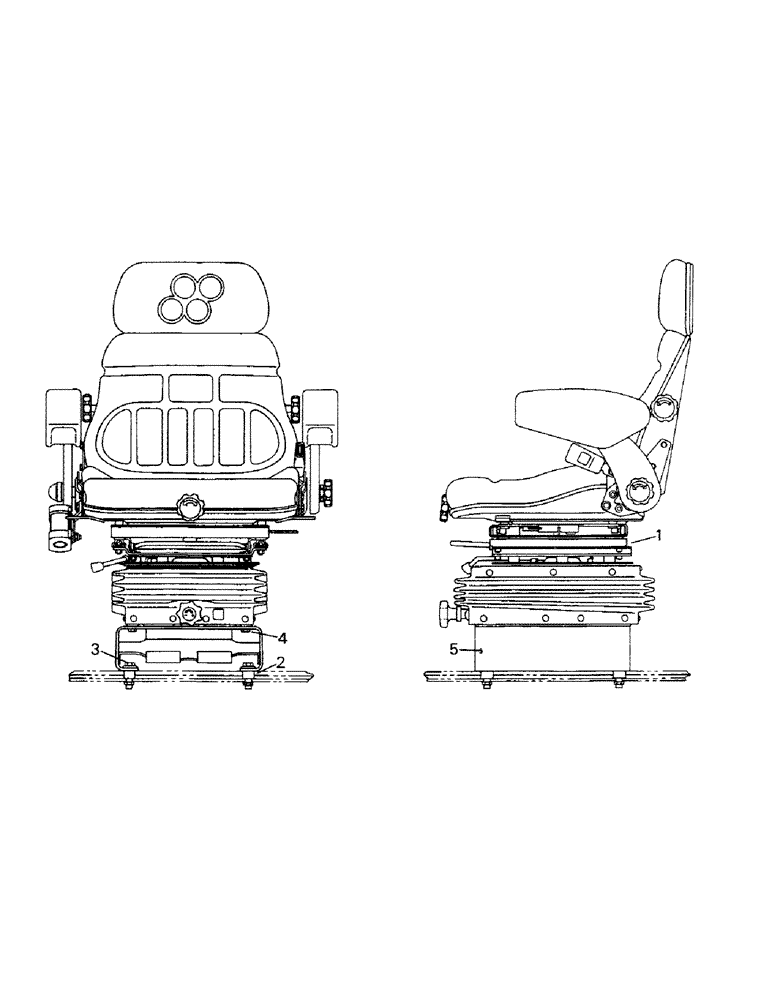

Запчасти Case IH STEIGER (01-22) - SEAT AND MOUNTING (10) - CAB

1

60-1876T92

SEAT ASSY.

SEAT ASSY (see figures, Serial Range: 1-23-1-28)

1шт.

2

60-2286T1

SPACER

4шт.

3

19-5885

SCREW,Hex Flg, 1/2" - 13 x 1 3/4", Gr 8

CAPSCREW

4шт.

4

40-1150

CAPSCREW,Hex, M8 x 1.25 x 30mm, Gr 8.8

(metric)

4шт.

5

60-2294T1

ANCHOR

SEAT MOUNT

1шт.
