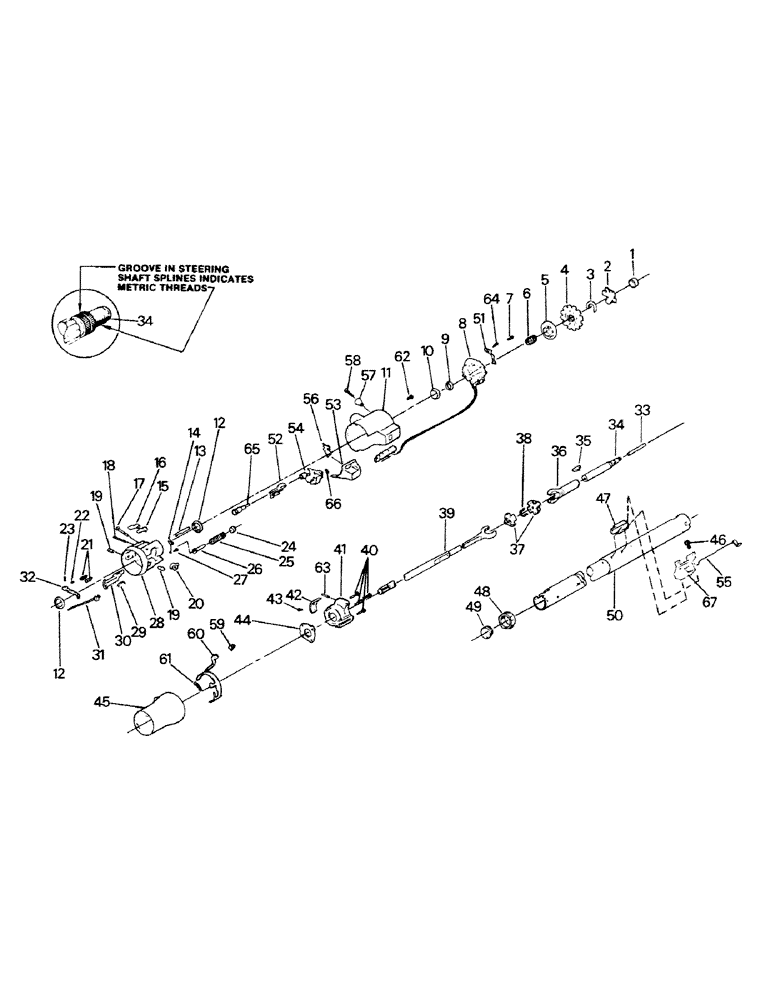

Запчасти Case IH STEIGER (01-20) - STEERING COLUMN ASSEMBLY (10) - CAB

1-7630

STEERING COLUMN

ASSY, consists of 1-68

1шт.

1

1-1320

BUMPER

RETRACT STEERING SHAFT

1шт.

2

1-1329

RETAINER

CARRIER SNAP RING RETAINER

1шт.

3

1-1331

RETAINER

SHAFT LOCK RETAINER

1шт.

4

1-1325

ARRESTER

STEERING SHAFT LOCK

1шт.

5

1-1215

SUPPORT

CARRIER ASSY

1шт.

6

1-4507

SPRING

UPPER BEARING SPRING

1шт.

7

1-1333

SCREW

3шт.

8

1-4497

SWITCH

TURN SIGNAL SWITCH ASSY

1шт.

9

1-1336

SEAT

INNER RACE SEAT

1шт.

10

1-1328

SPRING KIT

INNER RACE

1шт.

11

2-1454

HOUSING

LOCK HOUSING COVER

1шт.

12

1-1217

KIT

BEARING ASSY

2шт.

13

19-5460

LOCK BOLT

1шт.

14

1-1228

SPRING

LOCK BOLT SPRING

1шт.

15

1-1227

BRAKE SHOE

STEERING WHEEL LOCK SHOE

1шт.

16

1-1226

BRAKE SHOE

STEERING WHEEL LOCK SHOE

1шт.

17

1-1225

DRIVE SHAFT

1шт.

18

1-1220

SPLIT PIN/SAFETY PIN

DOWEL PIN

1шт.

19

1-4509

PIVOT PIN

PIN, PIVOT

2шт.

20

1-4478

KIT

SWITCH ACUATOR SECTOR

1шт.

21

1-1301

SPRING

SHOE SPRING

2шт.

22

1-1230

SPRING

RELEASE LEVER SPRING

1шт.

23

1-1221

PIN

- release lever

1шт.

24

1-1330

RETAINER

SPRING RETAINER

1шт.

25

1-4508

SPRING

TILT WHEEL SPRING

1шт.

26

1-1323

GUIDE

SPRING GUIDE

1шт.

27

1-1223

SCREW

1шт.

28

1-4474

HOUSING ASSY.

HOUSING ASSY (incl refs. 12-18, 20-23, 27, 29, 30, 32)

1шт.

29

1-1229

SPRING

RACK PRELOAD SPRING

1шт.

30

1-4477

KIT

SWITCH ACTUATOR RACK

1шт.

31

1-4465

ACTUATOR

SWITCH ACUATOR ASSY

1шт.

32

1-4476

CONTROL LEVER

SHOE RELEASE LEVER

1шт.

2-1463

SHAFT

STEERING SHAFT ASSY, consists of 33-39

1шт.

33

1-4488

STEM

TELESCOPE LOCKING ROD

1шт.

34

2-1467

SHAFT

UPPER STEERING SHAFT

1шт.

35

1-1312

WEDGE

LOCKING WEDGE

1шт.

36

1-4487

YOKE

RACE & STEERING SHAFT YOKE ASSY

1шт.

37

1-1310

KIT

CENTERING SPHERE

2шт.

38

1-1311

KIT

JOINT PRELOAD SPRING

1шт.

39

1-4486

STEERING SHAFT

YOKE & STEERING SHAFT ASSY

1шт.

40

1-1334

SCREW

4шт.

41

1-4493

SUPPORT ASSY.

SUPPORT ASSY (incl refs. 42, 43, & 46)

1шт.

42

1-4494

FIXING BRACKET

SHOURD RETAINING PLATE

1шт.

43

19-5459

SCREW

2шт.

44

1-1326

LARGE PLATE

LOCK PLATE

1шт.

45

1-4504

SHROUD

STEERING COLUMN HOUSING SHROUD

1шт.

46

1-1335

SCREW

1шт.

47

1-4496

IGNITION SWITCH

ASSY

1шт.

48

1-4468

ADAPTER

LOWER BEARING ADAPTER

1шт.

49

1-4467

BEARING ASSY

1шт.

50

2-1461

COLUMN JACKET

JACKET ASSY

1шт.

51

1-4466

ARM ASSY.

SIGNAL SWITCH ARM ASSY

1шт.

52

1-4498

ACTUATOR

DIMMER SWITCH ROD ACTUATOR

1шт.

53

1-4469

COVER

COLUMN HOUSING END COVER CAP

1шт.

54

2-1452

IGNITION SWITCH

PIVOT SWITCH ASSY

1шт.

55

2-1462

THREADED ROD

DIMMER SWITCH ROD ASSY

1шт.

56

1-4470

SHIELD

TILT LEVER OPENING SHIELD

1шт.

57

1-4500

BUTTON

HAZARD WARNING KNOB

1шт.

58

19-5456

SCREW,Oval Hd, M3.5

1шт.

59

1-4499

PAD

RELIEF LEVER FINGER PAD

1шт.

60

1-4501

LEVER

KEY RELEASE LEVER

1шт.

61

1-4506

SPRING

KEY RELEASE SPRING

1шт.

62

1-6926

SCREW,Cross Oval Hd

3шт.

63

1-6925

DOWEL

Pin

1шт.

64

1-6924

SCREW

1шт.

65

2-1455

PIVOT PIN

SWITCH ACTIVATING PIVOT PIN

1шт.

66

1-6927

SPRING

1шт.

67

1-7739

SWITCH

DIMMER SWITCH ASSY

1шт.

68

2-1481

STUD

DIMMER SWITCH STUD (not shown)

1шт.
