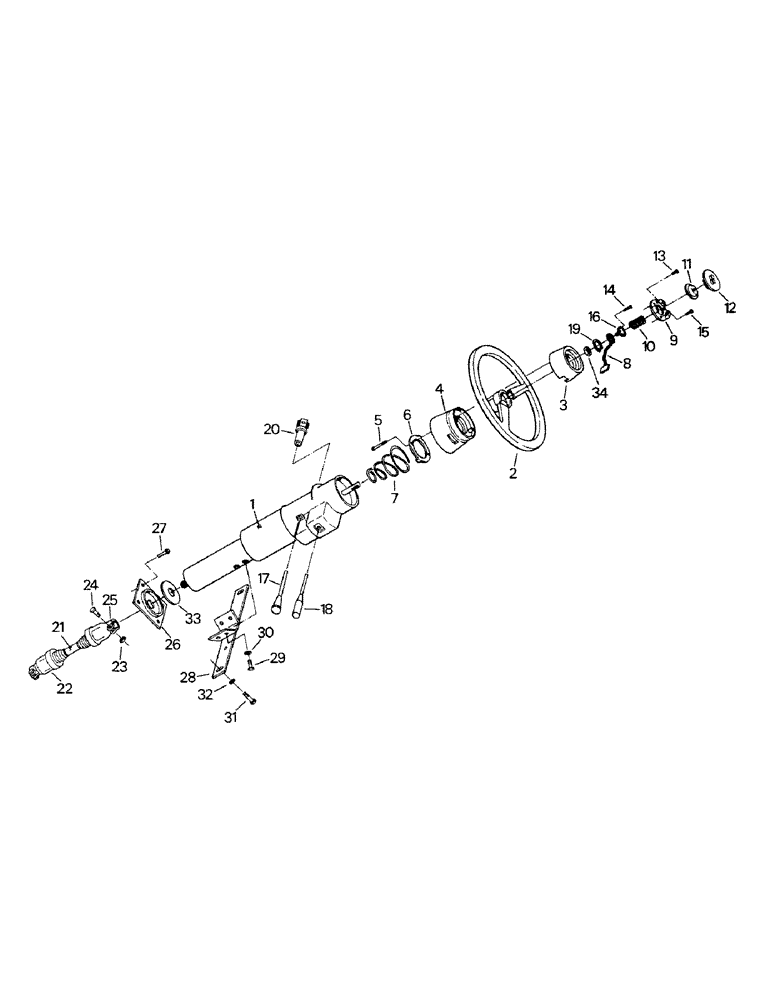

Запчасти Case IH STEIGER (01-19) - STEERING COLUMN AND MOUNTING (10) - CAB

1

STEERING COLUMN ASSY (see figure 1-20)

1шт.

2-3755T92

STEERING WHEEL

ASSY (02-3755T91), consists of Ref. 2 - 7

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

2

60-1827T2

WHEEL (STEERING)

STEERING WHEEL (60-1827T1)

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

3

60-1828T1

CAP

UPPER HUB COVER

1шт.

4

60-1829T1

COVER

LOWER HUB COVER

1шт.

5

19-5791

SELF-TAP SCREW,Cross Pan Hd, #6 x 1 1/4"

TAPPING SCREW

2шт.

6

60-1830T1

RETAINER

SPRING RETAINER

1шт.

7

60-1831T1

SPRING

1шт.

8

60-1951T1

CONTROL LEVER

RELEASE LEVER

1шт.

9

60-1819T1

PLATE

BASE PLATE

1шт.

10

60-1820T1

SPRING

1шт.

11

60-1821T1

CUPEL

CONTACT CUP

1шт.

12

60-1952T2

BUTTON

HORN BUTTON

1шт.

13

260-14436

SELF-TAP SCREW,Cross Pan Hd, #8 x 2 1/4"

TAPPING SCREW

1шт.

14

488-1104

SCREW,Cross Flat Hd, #10-32 x 1/4"

MACHINE SCREW

2шт.

15

9414743

SCREW,Tap, Gr 5

TAPPING SCREW

3шт.

16

18-1565

LOCK SCREW,5/16" - 18 x 0.95"

LOCKING SCREW

1шт.

17

18-1567T1

CONTROL LEVER

TILT CONTROL LEVER

1шт.

18

1-4188T1

CONTROL LEVER

TURN SIGNAL LEVER

1шт.

19

18-1570

RING, SNAP

RETAINER

1шт.

20

60-1020T1

SET

LOCKSET (contains new keys and locks for cab doors, steering column, battery box, and control valve cover)

1шт.

The key code for the Early Steigers (prior to JCB003600) is found in the overhead compartment.

1шт.

60-1824T91

SHAFT

STEERING SHAFT ASSY, consists of Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

22

NSS

NOT SOLD SEPARAT

COUPLING

2шт.

23

7810280

NUT

LOCK NUT

2шт.

24

7803464

CARRIAGE BOLT,7/16" - 20 x 1.88"

2шт.

25

7809433

CLAMP

2шт.

26

60-2833T1

BRACKET

1шт.

27

19-5842

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

FLANGED CAPSCREW

4шт.

28

60-2838T1

SUPPORT

1шт.

29

11500763

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

CAPSCREW (metric)

4шт.

30

19-700

WASHER,5/16"

4шт.

31

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW

2шт.

32

19-119

LOCK WASHER,1/2"

1/2"

2шт.

33

60-1817T1

SEAL

1шт.

34

19-1026

JAM NUT,9/16" - 18, Gr 5

(incl with ref. 1)

1шт.
