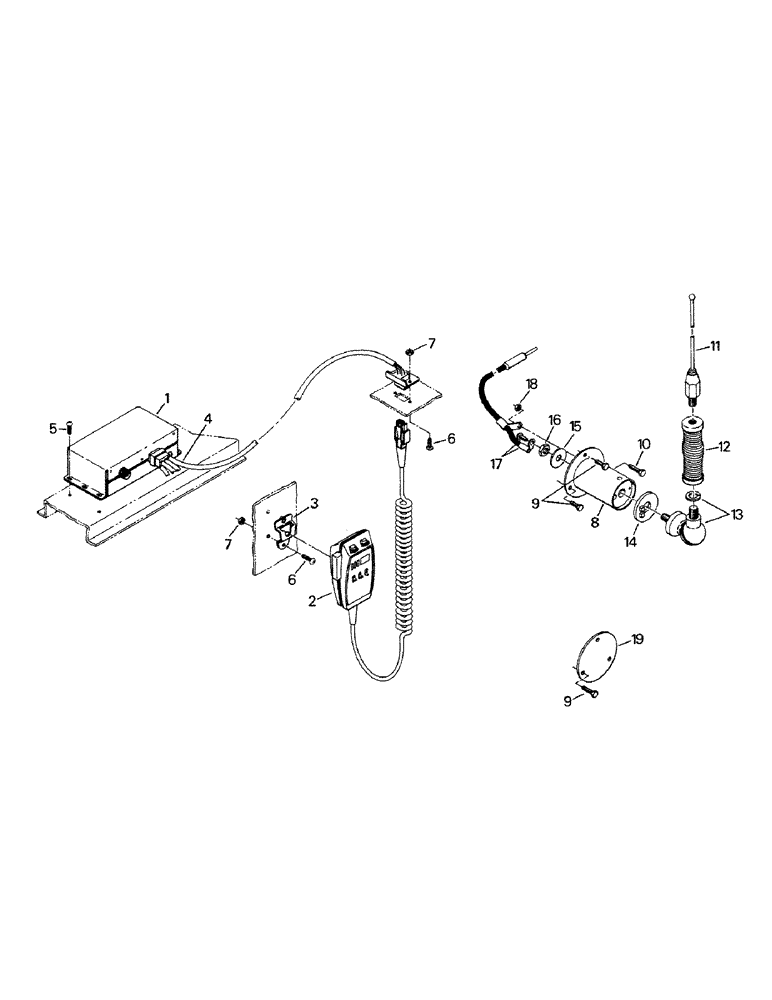

Запчасти Case IH STEIGER (01-18) - C.B. RADIO AND MOUNTING (10) - CAB

60-1756T91

C.B. RADIO, consists of Ref. 1 - 4

1шт.

1

60-1500T1

TRANSCEIVER

1шт.

2

60-1757T1

SPEAKER

MICROPHONE

1шт.

3

60-1758T1

CLIP

MICROPHONE CLIP

1шт.

4

60-1759T1

WIRE HARNESS

1шт.

5

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW

4шт.

6

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.

7

19-5563

LOCK NUT

LOCK NUT

4шт.

8

60-3297T1

ANTENNA

MOUNT

1шт.

9

9421943

SCREW,Hex Washer, #10 - 24 x 1/2"

MACHINE SCREW (qty 3 with no C.B. radio option)

2шт.

10

9423772

SCREW,Hex Washer, #10 - 24 x 5/8"

MACHINE SCREW

1шт.

11

60-1958T1

ANTENNA

1шт.

12

60-1960T2

SPRING

ANTENNA SPRING

1шт.

13

60-1961T2

ANCHOR

ANTENNA BALL MOUNT

1шт.

14

60-3306T1

ISOLATOR

1шт.

15

19-5369

WASHER

1шт.

16

19-868

JAM NUT,Jam, 3/8"-24, G5

JAM NUT

1шт.

17

60-3337T1

COAX LEAD

1шт.

18

9419337

NUT

KEP NUT

1шт.

19

60-1178T2

COVER

1шт.

Cover P/N 60-1178T2 is used to cover up the antenna mounting hole on the back of the cab.

1шт.

20

1-1055

SEALANT

RTV SEALANT (not shown)

1шт.
