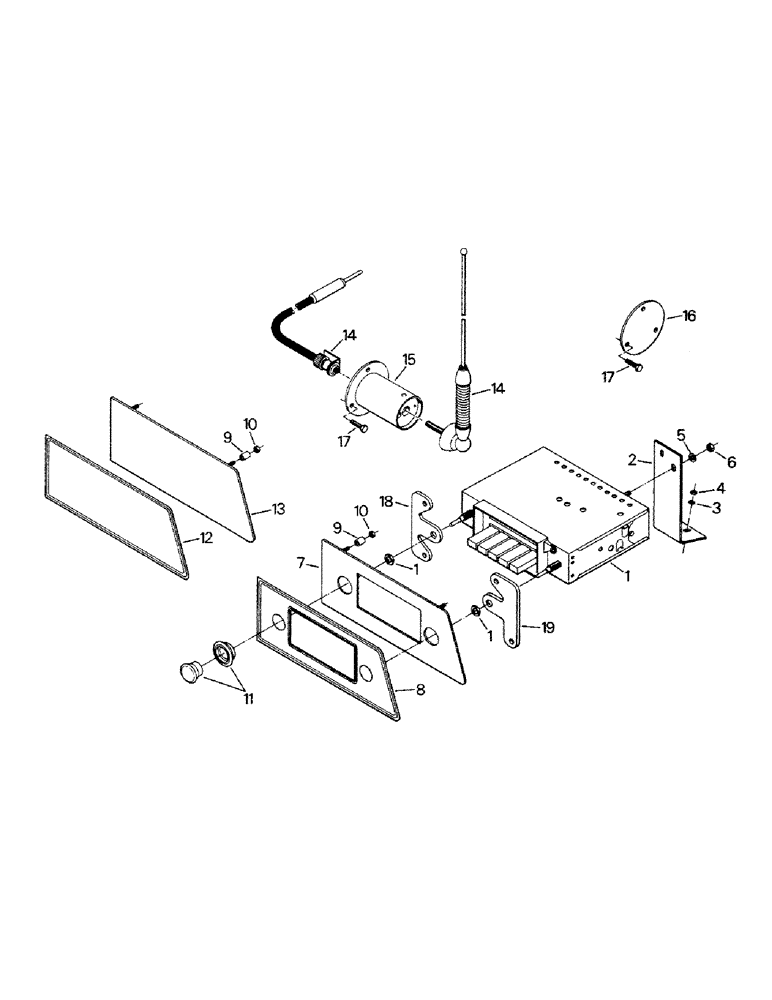

Запчасти Case IH STEIGER (01-15) - RADIO AND MOUNTING, MOTOROLA AM-FM MULTIPLEX RADIO (10) - CAB

1

20-1545T1

RADIO

AM-FM MULTIPLEX RADIO (incl ref. 11)

1шт.

2

60-2573T1

BRACKET

1шт.

3

19-603

LOCK WASHER,Ext Tooth, #10

1шт.

4

9411893

LOCK NUT,#10-32, GB

1шт.

5

19-467

LOCK WASHER,Ext Tooth, 1/4"

1шт.

6

19-1081

LOCK NUT

LOCK NUT

1шт.

7

60-2630T2

PANEL ASSY.

PANEL

1шт.

8

60-2618T1

DECAL

1шт.

9

19-5974

ANCHOR

STANDOFF

4шт.

10

19-5564

LOCK NUT,#6-32, GB

4шт.

11

60-2766T1

KNOB

SET (left)

1шт.

60-2765T1

KNOB

SET (right)

1шт.

12

60-2654T1

DECAL

1шт.

13

60-2656T1

PANEL ASSY.

PANEL

1шт.

14

1-4545

ANTENNA

1шт.

15

60-3297T1

ANTENNA

MOUNT

1шт.

16

60-1178T2

COVER

1шт.

The speakers are shown on figure 1-10. Cover P/N 60-1178T2 is used to cover up the antenna mounting hole on the back of the cab.

1шт.

17

9421943

SCREW,Hex Washer, #10 - 24 x 1/2"

MACHINE SCREW

3шт.

18

60-3504T1

BRACKET

(later models only)

1шт.

19

60-3503T1

BRACKET

(later models only)

1шт.

20

1-1807T1

SPEAKER EXTENSION WIRES HARNESS (not shown)

1шт.

21

1-1055

SEALANT

RTV SEALANT (not shown)

1шт.
