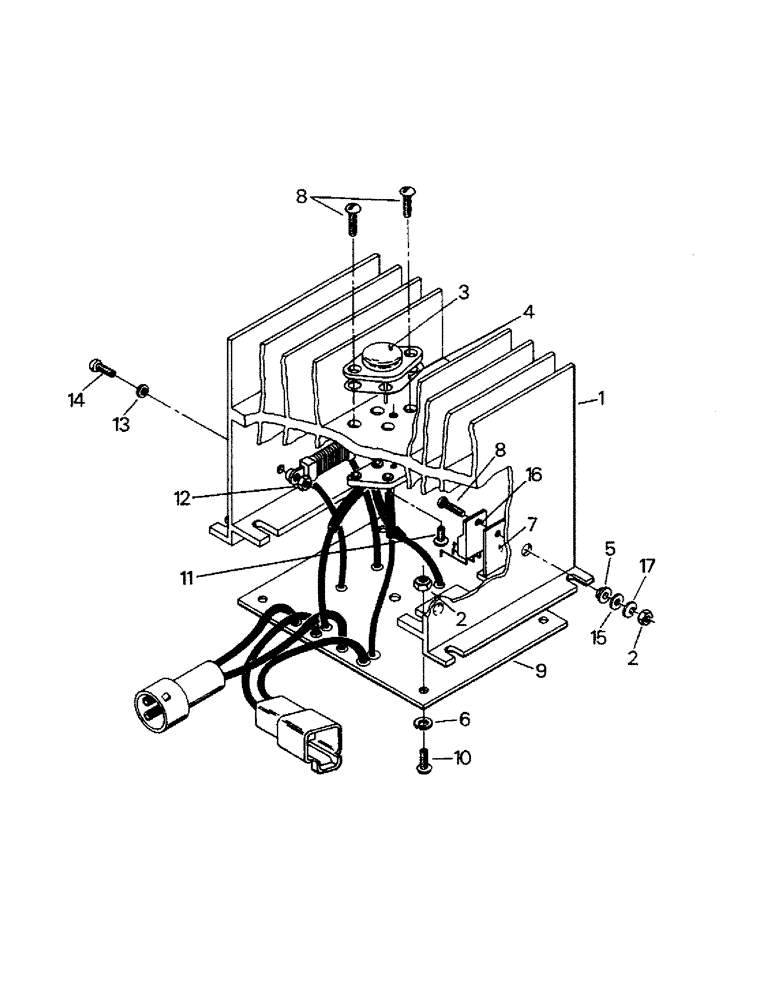

Запчасти Case IH STEIGER (01-14) - CONTROL MODULE ASSEMBLY (10) - CAB

20-1371T91

TESTER

CONTROL MODULE ASSY, consists of Ref. 1 - 19

1шт.

1

25-1000023

HEAT SINK

1шт.

2

19-1013

NUT

5шт.

3

2N5684

TRANSISTOR

1шт.

REF. 3 2N5684 S/B 33-1477T1

1шт.

4

25-1000088

INSULATOR

1шт.

5

25-1000089

BUSHING

1шт.

6

492-11006

LOCK WASHER,#6

Washer, Lock, #6

4шт.

7

25-1000124

INSULATOR

1шт.

8

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

MACHINE SCREW

3шт.

9

20-1320T3

CONTROL

BLOWER CONTROL CIRCUIT

1шт.

10

159229

SCREW,Cross Pan Hd, #6 - 32 x 1/4"

MACHINE SCREW

4шт.

11

159028

MACHINE SCREW

1шт.

12

225-14104

NUT,#4-40

2шт.

13

9429686

LOCK WASHER

2шт.

14

159203

SCREW,Cross Pan Hd, #4 - 40 x 1/2"

MACHINE SCREW

2шт.

15

19-708

WASHER,#6

1шт.

16

2N6042

TRANSISTOR

1шт.

17

25-1000127

COMPRESSION WASHER

1шт.

18

25-1000015

PASTE

THERMAL PASTE (not shown)

1шт.

19

19-134

CABLE

TY-RAP (not shown)

1шт.
