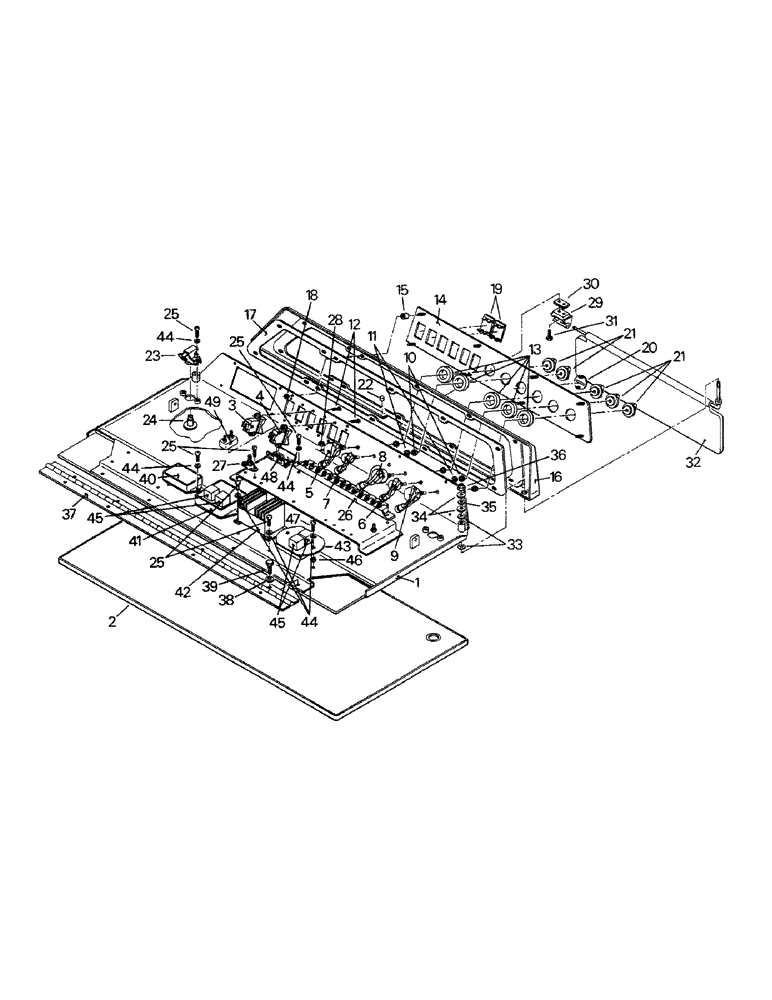

Запчасти Case IH STEIGER (01-12) - OVERHEAD DOOR (10) - CAB

1

60-2669T5

DOOR

CONSOLE DOOR, with visor, Replaces 60-2669T2 to 60-2669T4, some minor modifications may be required to allow console door P/N 60-2669T5 to fit on early models

1шт.

Some minor modifications may be required to allow console door P/N 60-2669T5 to fit on early models.

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

60-3963T1

CONSOLE DOOR (w/o visor)

1шт.

2

60-1529T3

ISOLATOR

DOOR INSULATION

1шт.

3

20-1256T2

SWITCH

Replaces 20-1256T1

3шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

4

20-1257T2

SWITCH

Replaces 20-1257T1

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

5

20-1456T2

SWITCH

LIGHT MASTER SWITCH

1шт.

6

20-1455T1

POTENTIOMETER

1шт.

7

20-1670T1

POTENTIOMETER,1200 Ohm, 12 VDC

1шт.

8

60-2255T1

SWITCH

A/C MODE SWITCH

1шт.

9

60-2256T2

SWITCH

FAN SWITCH

1шт.

10

19-5778

NUT,3/8"-32, G2

2шт.

11

19-243

LOCK WASHER,Ext Tooth, 3/8"

2шт.

12

159287

SCREW,Cross Pan Hd, #6 - 32 x 3/8"

MACHINE SCREW

8шт.

13

60-1484T1

WASHER

5шт.

14

60-2672T91

PANEL

& DECAL ASSY

1шт.

60-1479T3

DECAL

OVERHEAD DECAL

1шт.

15

19-5974

ANCHOR

STANDOFF

8шт.

16

60-1477T3

COVER

CONSOLE DOOR COVER, with visor, Replaces 60-1477T2

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

60-3962T1

COVER

CONSOLE DOOR COVER, without visor

1шт.

17

60-1478T3

GASKET

Replaces 60-1478T2

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

18

19-5564

LOCK NUT,#6-32, GB

8шт.

19

60-1555T4

PLUG

BUTTON PLUG

2шт.

20

60-1874T4

PLUG

BUTTON PLUG

1шт.

21

60-1496T1

BUTTON

KNOB, uses 19-5926 set screw

5шт.

22

19-5732

SPACER

4шт.

23

60-2650T1

BOLT

CASE & BOLT LOCK

2шт.

24

60-2268T2

CYLINDER

LOCK CYLINDER & KNOB

2шт.

25

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW

18шт.

26

CIRCUIT BREAKER ASSY., see Figure 02-12

1шт.

27

20-1451T1

BLOCK

JUNCTION BLOCK

1шт.

28

19-5563

LOCK NUT

LOCK NUT

2шт.

29

60-1519T2

RETAINER

VISOR RETAINER

1шт.

30

60-1517T1

SHIM

1шт.

31

9421295

SCREW,Hex Washer, #10 - 24 x 3/4"

MACHINE SCREW

2шт.

32

60-1505T93

NO LONGER SERVICED

VISOR ASSY

2шт.

33

19-5728

WASHER

4шт.

34

9420760

WASHER

4шт.

35

19-5865

SPRING WASHER

4шт.

36

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

37

60-1487T2

HINGE

1шт.

38

19-105

WASHER,1/4", SAE

4шт.

39

9418998

SCREW,1/4" - 20 x 3/8", Gr 5

CAPSCREW

4шт.

40

20-1551T1

RELAY

AUDIO ALARM RELAY

1шт.

41

20-1557T2

MODULE

WIPER MODULE, Includes ref. 45

1шт.

42

CONTROL MODULE ASSY., see Figure 01-14

1шт.

43

20-1278T4

BOARD

FLASHER CIRCUIT BOARD, Includes ref. 45, Replaces 20-1423T93

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

Order flasher circuit board kit P/N 35-1568T91 which contains a new flasher circuit board, ref. 43, and the appropriate mounting hardware, refs. 44, 46 and 47

1шт.

44

19-603

LOCK WASHER,Ext Tooth, #10

18шт.

45

1-7877

RELAY

4шт.

46

19-6069

SPACER

2шт.

47

19-1096

PLOW BOLT,5/8" - 11 x 6", Gr 5

MACHINE SCREW

2шт.

48

20-1171T1

SUPPORT

CIRCUIT BREAKER BRACKET

1шт.

49

22-671

BREAKER

CIRCUIT BREAKER (15 amp)

1шт.
