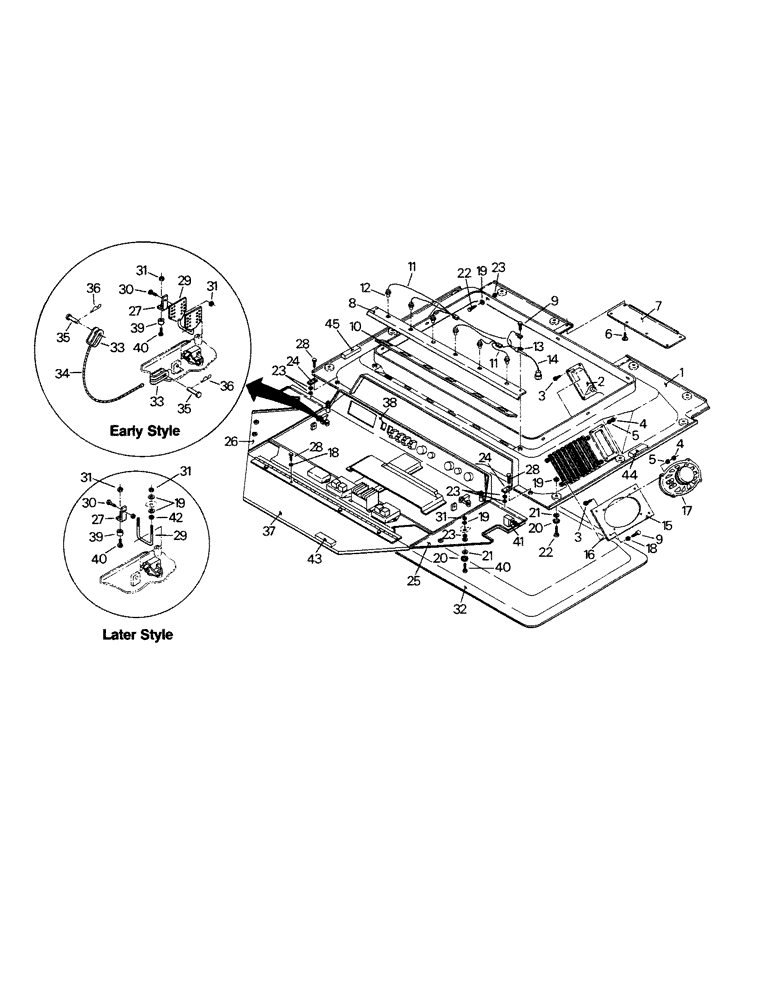

Запчасти Case IH STEIGER (01-10) - CAB OVERHEAD (10) - CAB

60-1514T94

ROOF

HEADLINER ASSY (60-1514T93), consists of 1 - 18

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

1

NAP

HEADLINER (6 light holes)

1шт.

Order headliner kit P/N 35-1509T91 which contains a new headliner (ref. 1) & a new diffuser plate (ref. 10). The appropriate mounting (refs. 19-21, 23 & 31) must also be ordered to assure proper mounting in early models. (C) - Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all. (D) - Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/

1шт.

60-3396T1

ROOF

HEADLINER (8 light holes)

1шт.

2

1-9063T91

LIGHT

CONSOLE LIGHT ASSY (service breakdown below)

2шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

1-9065

BULB

1шт.

1-9064

LENS

1шт.

155830

ANGLE BAR

MACHINE SCREW

2шт.

3

155893

SCREW,Cross Flat Hd, #8 - 32 x 5/8"

MACHINE SCREW

16шт.

4

19-5621

LOCK NUT,#8-32, GB

16шт.

5

19-281

WASHER,#8

16шт.

6

19-5835

CLIP

6шт.

7

60-2908T1

COVER

1шт.

8

60-2049T2

PLATE

(60-2049T1)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

9

9418998

SCREW,1/4" - 20 x 3/8", Gr 5

CAPSCREW

10шт.

10

60-2128T2

LARGE PLATE

DIFFUSER PLATE (60-2128T1)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

11

20-1454T1

SOCKET

WIRE & SOCKET ASSY (3 light)

2шт.

20-1865T1

SOCKET

WIRE & SOCKET ASSY (2 light) (used with 8 hole headliner only)

1шт.

12

20-1384T1

BULB

(qty 6 on early models)

8шт.

13

22-633

CLIP

1шт.

14

20-1453T2

HARNESS

PANEL LAMP WIRE HARNESS (20-1453T1)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

15

60-1515T4

LARGE PLATE

PLATE

2шт.

16

60-1516T4

CLOTHES

SPEAKER CLOTH

2шт.

17

60-2077T1

SPEAKER

2шт.

18

19-105

WASHER,1/4", SAE

12шт.

19

9421089

WASHER

29шт.

20

19-5735

CAP

(qty 10 on early models)

14шт.

21

1-8674

CAP WASHER

CAP WASHER (qty 10 on early models)

14шт.

22

19-6017

BEARING

TAPPING SCREW

17шт.

23

19-5668

WASHER

25шт.

24

60-2911T1

STRIP

TAB

2шт.

25

60-1524T3

ADHESIVE STRIP

OVERHEAD TRIM (60-1524T2)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

26

60-1523T4

ADHESIVE STRIP

OVERHEAD TRIM (60-1523T3)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

27

60-2649T2

ANGLE

(60-2649T1)

2шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

28

9418998

SCREW,1/4" - 20 x 3/8", Gr 5

CAPSCREW

6шт.

29

60-2648T1

STRIKER (early style)

2шт.

Order headliner kit P/N 35-1509T91 which contains a new headliner (ref. 1) & a new diffuser plate (ref. 10). The appropriate mounting (refs. 19-21, 23 & 31) must also be ordered to assure proper mounting in early models. (C) - Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all. (D) - Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

60-3419T1

HAMMER

STRIKER (later style)

1шт.

Order headliner kit P/N 35-1509T91 which contains a new headliner (ref. 1) & a new diffuser plate (ref. 10). The appropriate mounting (refs. 19-21, 23 & 31) must also be ordered to assure proper mounting in early models. (C) - Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all. (D) - Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

30

9423772

SCREW,Hex Washer, #10 - 24 x 5/8"

MACHINE SCREW

8шт.

31

19-5563

LOCK NUT

LOCK NUT (qty 10 on early models)

12шт.

32

60-1458T3

FOAM

INSERT

1шт.

33

1-4657

CLEVIS

4шт.

34

1-4656

CABLE

LANYARD CABLE

2шт.

35

19-143

CLEVIS PIN,5/16" x 0.94"

4шт.

36

19-5380

PIN

HAIR PIN

4шт.

37

60-1528T3

ISOLATOR

INSULATION

1шт.

38

OVERHEAD DOOR (see figure 1-12)

1шт.

39

31-1979

RUBBER

BUMPER

2шт.

40

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW (qty 2 on early models)

6шт.

41

20-1463T1

SWITCH

MICRO SWITCH ASSY

1шт.

REF: 41 MICRO SWITCH ASSY ON DOOR TURNS

1шт.

REF: 41A 64-146 PLUG TO COVER HOLE WHEN

1шт.

42

19-567

NUT,#10-24

4шт.

43

60-3374T1

ACOUSTIC FOAM

1шт.

44

60-3373T1

FOAM

ACOUSTIC FOAM

1шт.

45

60-3372T1

FOAM

ACOUSTIC FOAM

1шт.
